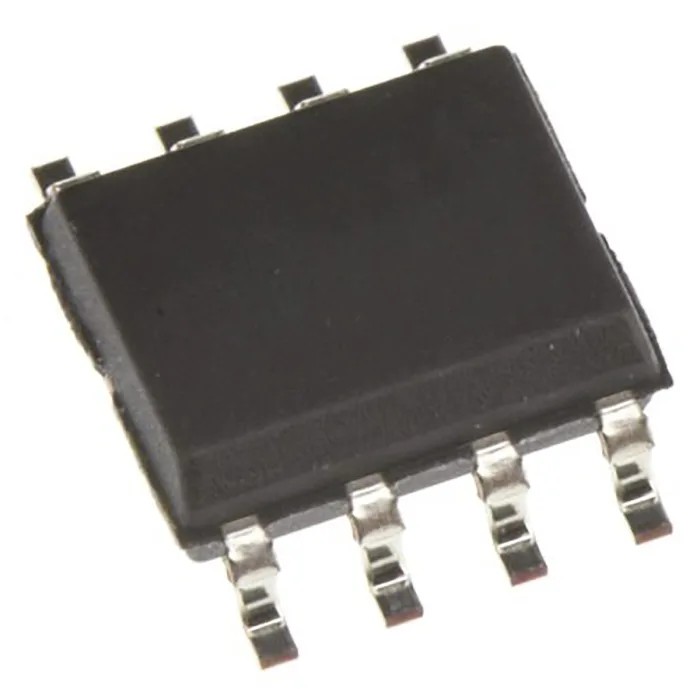

onsemi DC Input Optocoupler Surface Mount 8-Pin SOIC MOCD223R2M

The onsemi MOCD223R2M is a DC input optocoupler designed for surface mounting in a small outline integrated circuit (SOIC) package with 8 pins. It incorporates a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon photo darlington detector. This configuration provides high current transfer ratios, with a guaranteed minimum of 500% at 1 mA forward input current, making it highly efficient for signal isolation.

It features a compact SOIC-8 plastic package with a lead spacing of 0.050 inches, suitable for high-density circuit board layouts. The device supports a maximum forward input current of 60 mA and a forward voltage drop of 1.3 volts, with an operating temperature range from -40°C to 100°C, ensuring robust performance in diverse industrial and consumer environments.

Switching characteristics include a typical rise time of 8 microseconds and a fall time of 45 microseconds, supporting moderately fast signal transitions. The optocoupler conforms to multiple recognized safety and quality standards, including DIN, UL, and EN, promoting reliable operation within certified systems.

This device is widely used in applications such as consumer appliances and industrial motor controls, where electrical isolation between input and output circuits is critical for safety and signal integrity. The MOCD223R2M simplifies high-density PCB design by eliminating the need for through-hole components, using surface mount technology.

Features a gallium arsenide infrared emitting diode coupled to a silicon photo darlington detector. High current transfer ratio with minimum 500% at 1 mA forward input current. Compact SOIC-8 plastic surface mount package with 0.050 inches lead spacing.

Supports a maximum input current of 60 mA with a maximum forward voltage of 1.3 V. Operating temperature range from -40°C to 100°C ensures suitability for various environments. Typical rise and fall times are 8 µs and 45 µs respectively for effective switching performance.

Meets DIN, UL, and EN standards for safety and performance compliance. Ideal for consumer appliances and industrial motor applications requiring isolation.

Choose onsemi MOCD223R2M for reliable and efficient optical isolation in electronic designs. Browse our extensive selection of Optocouplers and related components at EnvMart for industrial and laboratory applications.
