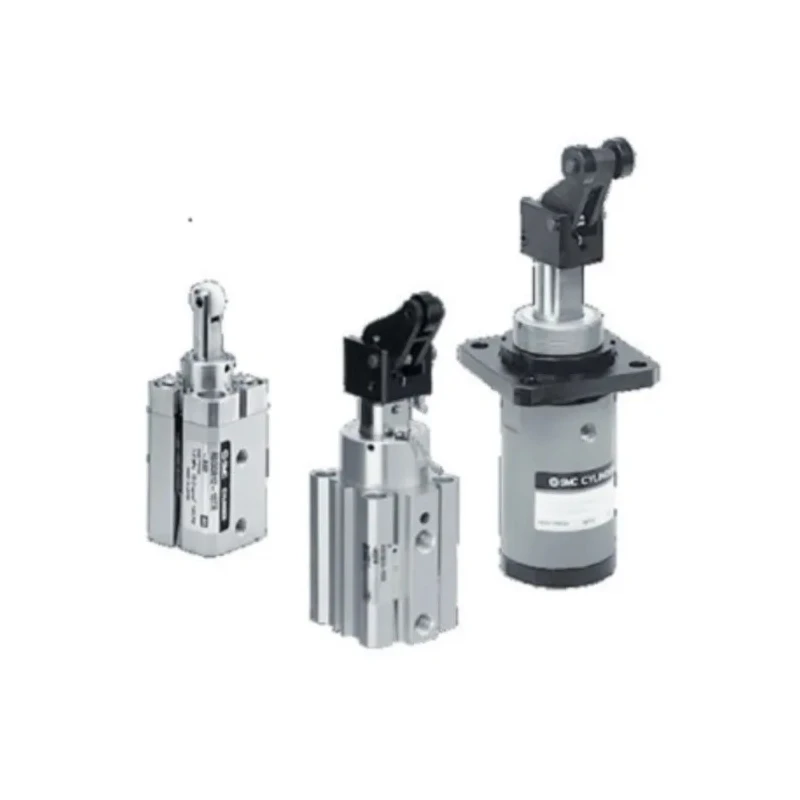

SMC Pneumatic Compact Cylinder 40mm Bore, 30mm Stroke, Double Acting Aluminium Alloy Body RSDQB40TF-30DZ
Specifications
| Country of Origin | China |
|---|---|
| Brand | SMC |
| Body Material | Aluminium Alloy |
| Maximum Operating Pressure | 1.5 Mpa |
| Height | 140.5mm |
| Length | 52mm |
| Model | RSDQB40TF-30DZ |
| Gross Weight | 850g |
| Width | 52mm |
| Mount Type | Through Hole |
| Series | RSDQ |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -10°C |
| Stroke Length | 30mm |
| Bore Diameter | 40mm |
| Rod Type | Single |
| Action Type | Double Acting |
| Standards/Approvals | RoHS |
| Cushioning Type | Rubber |
| Piston Rod Gender | Female |
| Piston Rod Thread Standard | Metric |
| Stroke range | 10mm to 30mm |
| Bore sizes | 12mm to 50mm |
Key Features
- The cylinder body is made from durable aluminium alloy to withstand industrial environments.
- Double acting pneumatic operation ensures precise control of piston movement.
- Rubber cushioning provides smooth deceleration and reduces wear.
- Compact design with through-hole mounting supports easy integration into machinery.
- Designed for operating pressures up to 1.5 MPa for versatile applications.
- The piston rod is single type with female metric thread for secure attachments.
- Operating temperature ranges from -10°C to 60°C for varied industrial settings.
- The cylinder stroke length is fixed at 30mm with a length of 52mm and height of 140.5mm.
Product Description
SMC RSDQB40TF-30DZ is a pneumatic compact cylinder in the RSDQ series, engineered for reliable double acting operation with a 40mm bore and a 30mm stroke length. It features an aluminium alloy body with rubber cushioning to ensure smooth piston movement and durability under industrial loads. The compact and efficient design supports through-hole mounting for straightforward installation in automated manufacturing and material handling equipment.
This cylinder operates at a maximum pressure of 1.5 MPa with piston speeds up to 500 mm/s, suitable for a broad spectrum of pneumatic applications. Its working temperature range from -10°C to 60°C allows it to perform in diverse environmental conditions, while the single piston rod with female metric thread enables flexible mounting options.
The RSDQ series includes fixed height stopper cylinders with proven endurance and low breakaway characteristics, making this model ideal for conveyor line stops, automated machinery actuation, and other industrial automation tasks. The compact footprint and specialized design ensure robust performance without occupying excessive space.
The aluminium alloy body ensures lightweight strength and corrosion resistance. Rubber cushioning minimizes impact forces during piston deceleration. Through-hole mount type facilitates secure and easy mounting on various assemblies.
Complies with RoHS standards, ensuring environmental safety and quality. Suitable for industrial, manufacturing, and pneumatic automation applications. Package includes the SMC RSDQB40TF-30DZ pneumatic compact cylinder with specifications as listed. The product is supplied new and manufactured in China.
Explore our wide range of pneumatic components and cylinders at EnvMart to find complementary parts and accessories for your pneumatic automation requirements.
Explore more products in our Pneumatic Cylinder category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The bore diameter of this model is 40mm.
This cylinder operates at a maximum pressure of 1.5 MPa.
The stroke length of this unit is fixed at 30mm.
The body of this cylinder is made from aluminium alloy, which provides strength and corrosion resistance.
It can operate within a temperature range of -10°C to 60°C.
This model features a through-hole mount type for easy and secure installation.
It utilizes rubber cushioning to ensure smooth deceleration and reduce wear.
The height of this cylinder is 140.5mm, and its length is 52mm.
This model operates as a double acting cylinder.
The piston rod is of single type with a female metric thread.
It complies with RoHS standards, ensuring environmental safety and quality.
This pneumatic cylinder is suitable for industrial, manufacturing, and pneumatic automation applications.
