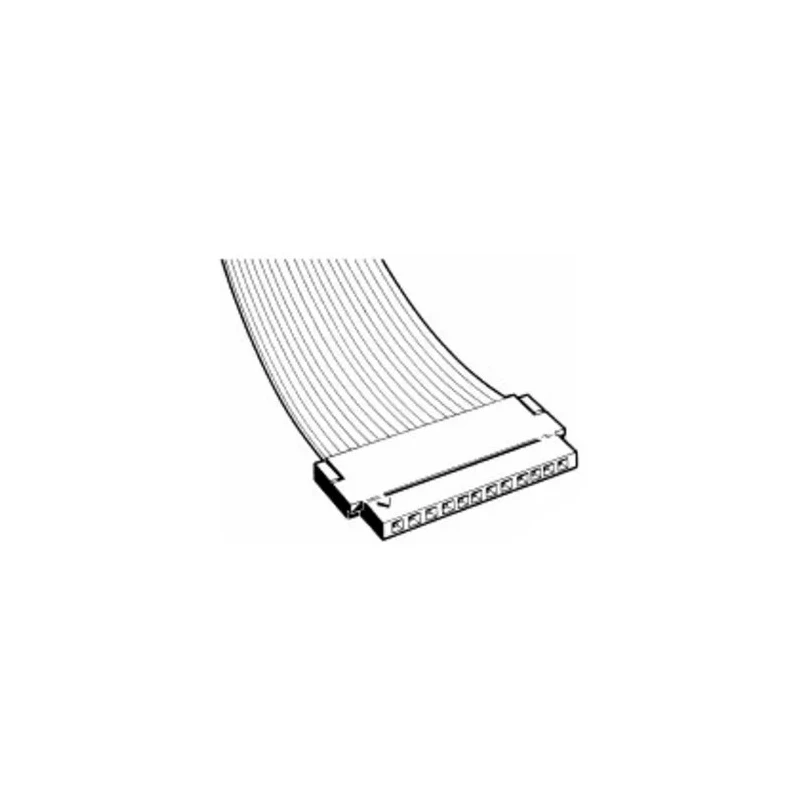

Amphenol Communications Solutions 7-Way IDC Connector Female for Cable, 1 Row 65801-007LF
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 500V ac |
| Brand | Amphenol Communications Solutions |
| Orientation | Straight |
| Current | 2A |
| Model | 65801-007LF |
| Mount Type | Cable |
| Housing Material | Thermoplastic |
| Contact Material | Beryllium Copper |
| Series | Clincher |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 7 |
| Contact Gender | Female |
| Connector Gender | Female |
| Shrouded/Unshrouded | Unshrouded |
| Positions available | 2 through 32 |
| Plating Options | Gold/GXT or lead-free pure tin |
Key Features
- This 7-way IDC connector features a single row design for efficient cable terminations.
- It supports a current rating of 2A and voltage up to 500V AC ensuring robust performance.
- Constructed with beryllium copper contacts plated with tin for excellent conductivity and corrosion resistance.
- Housing made of durable thermoplastic material withstands operating temperatures from -65°C to 105°C.
- Connector is unshrouded, straight oriented and designed for cable mount with crimp termination type.
- The connector utilizes the Clincher series with a 2.54mm pitch between contacts.
- Ideal for use in electronic components, power connectors, and PCB wiring applications.
- Manufactured in China and compliant with no specific approvals or standards.
Product Description
Amphenol Communications Solutions 65801-007LF 7-Way IDC Connector Female for Cable, 1 Row is designed to deliver high quality electrical connection solutions primarily used in electronic and power connector assemblies. Operating at 500V AC and carrying up to 2A of current, this connector is suitable for a variety of industrial, manufacturing, and electronic applications.
The connector has 7 contacts arranged in a single row with a standard pitch of 2.54mm (.100 inch). The contacts are made from beryllium copper with a tin plating to provide durability, excellent electrical conductivity and corrosion resistance. The housing is thermoplastic, providing robust mechanical strength and thermal stability over an operating temperature range from -65°C to 105°C.
This female IDC Connector is unshrouded and of straight orientation, optimized for cable mounting with crimp termination ensuring secure and reliable connections. It forms part of the Clincher series, compatible with matching pin connectors from the same or equivalent series, suitable for PCB connectors and wire housings.
Commonly implemented in electronics manufacturing, laboratory equipment, and signal distribution setups, it supports a wide range of wire-to-board connectivity requirements. The product is manufactured in China and does not carry additional certification approvals but meets industrial usage demands.
This connector features a single row configuration with 7 contact positions. Current rating is 2A with 500 volts AC voltage specification. Contact plating is tin over beryllium copper contact material. Housing is made from thermoplastic for durability at varied temperatures.
Suitable for electronics, power connectors, and PCB connector assembly applications. Termination method is crimp for secure cable attachment. Operating temperature ranges from -65°C to 105°C.
Explore the full range of Amphenol Communications Solutions connectors and accessories in the Electronics & Electricals category at EnvMart for reliable and efficient component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector has a current rating of 2A.
It can handle a voltage of up to 500V AC.
The operating temperature range is from -65°C to 105°C.
The contacts are made of beryllium copper with tin plating, while the housing is made of thermoplastic material.
This connector features 7 contacts arranged in a single row.
It utilizes crimp termination for secure cable attachment.
This model is unshrouded, allowing for easier access during installation.
The pitch between the contacts is 2.54mm.
It is part of the Clincher series, compatible with matching pin connectors from the same series.
It is manufactured in China.
It is commonly implemented in electronics manufacturing, laboratory equipment, and signal distribution setups.
The orientation of this connector is straight, optimized for cable mounting.
