| Country of Origin | China |
|---|---|
| Brand | Nexperia |
| Height | 1.6mm |
| Length | 3.7mm |
| Model | BZV55-C75,115 |
| Mount Type | Surface |
| Series | BZV55 |
| Maximum Operating Temperature | 200°C |
| Package Type | SOD-80 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Maximum Power Dissipation Pd | 500mW |
| Diode Configuration | Single |
| Test Current It | 2mA |
| Maximum Reverse Leakage Current | 50nA |
| Nominal Zener Voltage Vz | 76.5V |
| Zener Type | Voltage Regulator |
| Maximum Zener Impedance | 255Ω |
| Typical Voltage Temperature Coefficient | 80.2mV/K |
| Total power dissipation | ≤ 500 mW |
| Non-repetitive Peak reverse power dissipation | ≤ 40 W |
| Two tolerance series | ±2 % and ±5 % |
| Wide working voltage range | nominal 2.4 V to 75 V (E24 range) |

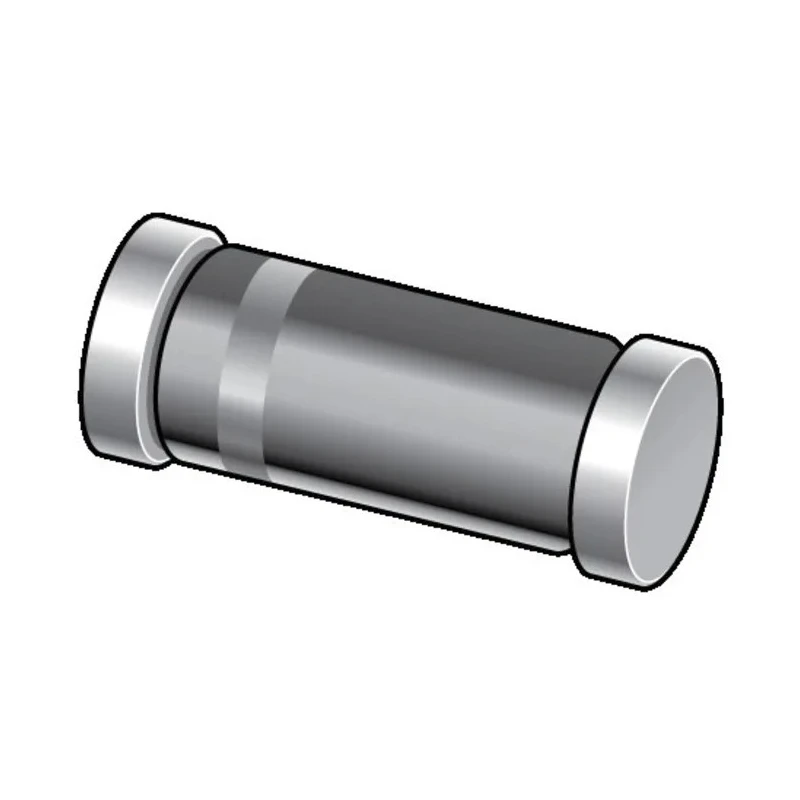

Nexperia BZV55-C75,115 is a single-element Zener diode designed for voltage regulation and over-voltage protection in electronic circuits. Rated at a nominal 76.5 volts and a maximum power dissipation of 500 mW, it provides precise voltage regulation in compact surface mount device (SMD) packages.
This diode is housed in a small SOD-80 package with two pins suitable for surface mounting on PCBs, facilitating efficient integration into high-density circuit designs. The diode offers a voltage tolerance of ±5%, allowing consistent regulation within design parameters.
Operating across a broad temperature range from -65°C to 200°C, it is suitable for demanding industrial and automotive applications. The diode has low maximum reverse leakage current of 50 nA and a maximum Zener impedance of 255 Ω, ensuring efficiency and stability in voltage regulation.
The device is well suited for use in power supplies, instrumentation, and protection circuits requiring dependable voltage reference and regulation. Its compact size (3.7 mm length, 1.6 mm height) supports modern PCB layouts where space is at a premium.
The diode offers a nominal Zener voltage of 76.5 volts with a tolerance of ±5%. It is a single-element diode in a compact surface mount 2-pin SOD-80 package. The device supports a maximum power dissipation of 500 milliwatts for efficient voltage regulation.
It features low reverse leakage current of 50 nanoamperes and maximum Zener impedance of 255 ohms. The diode operates reliably across a temperature range from -65°C to 200°C. The package dimensions are 3.7 mm length and 1.6 mm height, making it ideal for surface mounting.
The diode has a test current of 2 mA and a voltage temperature coefficient of 80.2 mV/K.
This Nexperia Zener diode is engineered for electronics, semiconductor, power management, and industrial equipment requiring reliable voltage regulation and protection against voltage spikes and fluctuations.
