Lorlin 6 Position DPST Rotary Switch 150mA Solder Tab CK1035

Free Delivery in India | Lowest Global Shipping Charges

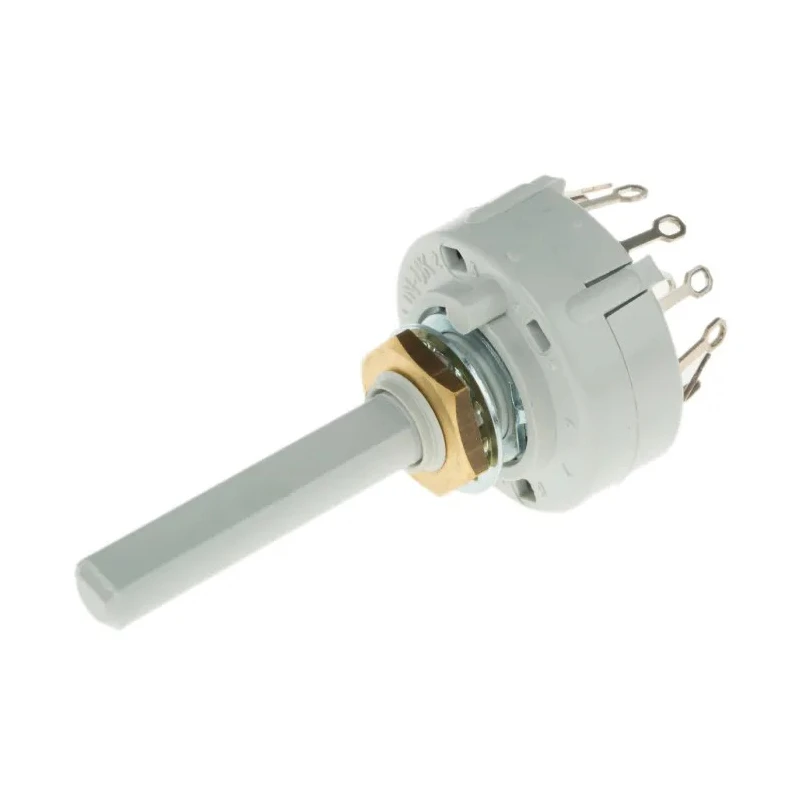

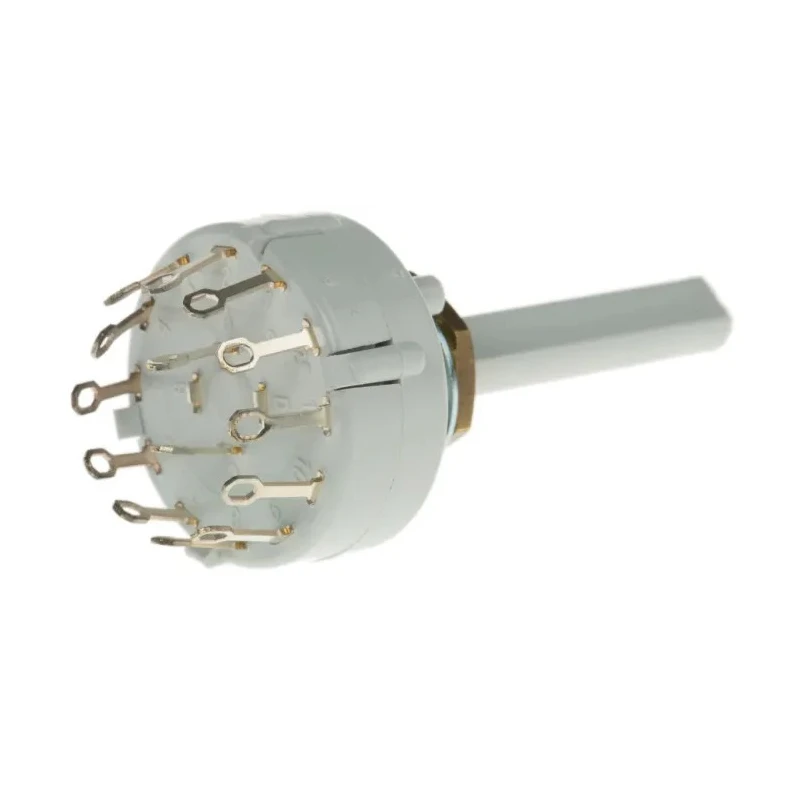

Lorlin 6 Position DPST Rotary Switch 150mA Solder Tab CK1035

Name: Lorlin 6 Position DPST Rotary Switch 150mA Solder Tab CK1035
Brand: Lorlin
SKU: 155448
Price: 3.69 USD
Availability: InStock



Category Rotary Switches Brand Lorlin Condition New

Specifications

Country of Origin	United Kingdom
Diameter	27.5mm
Brand	Lorlin
Dimensions	1.5inch long, 0.25inch diameter spindle with a 30mm flat for correct mounting of grub screwed knobs. The bush is 8mm long with a 9.52x32TPI thread
Height	59.1mm
Model	CK1035
Depth	27.5mm
Width	27.5mm
Mount Type	Panel
Housing Material	Polyamide
Series	CK
Maximum Operating Temperature	85°C
Contact Configuration	DPST
Number of Positions	6
Minimum Operating Temperature	-30°C
Terminal type	Solder Tab
Maximum dc Voltage	24V dc
Number of Poles	2
Standards/Approvals	RoHS
Actuator Colour	Silver
Switch Contact Current	150mA
Mechanical Life	10000Cycles
Maximum AC Voltage	250V ac
Angle of Throw	90 °
Lorlin CK, 6 Position DPST Rotary Switch, 150mA, Solder TabBrand	Lorlin

Key Features

Provides 6 selectable positions for flexible circuit control.
Double Pole Single Throw (DPST) contact configuration ensures simultaneous switching of two circuits.
Compact body made of durable polyamide material.
Rated for 250V AC and 24V DC maximum voltages.
Designed for panel mounting with a 27.5mm diameter housing.
Operable in temperatures ranging from -30°C to 85°C.
Features silver actuator color with a 90° angle of throw for precise control.
Robust mechanical life of 10,000 cycles for long-term use.

Product Description

Lorlin CK1035 6 Position DPST Rotary Switch is a high-quality, compact wafer switch designed for electrical, automation, and industrial applications. This rotary switch provides precise control with its 6 selectable positions and double pole single throw contact configuration, supporting currents up to 150mA.

The switch features a polyamide housing with a diameter of 27.5mm suitable for panel mounting. It operates reliably within a wide temperature range of -30°C to 85°C, making it ideal for environments exposed to temperature variations.

The actuator has a silver finish and a 90° angle of throw, enabling accurate positioning during operation. The mechanical life of the switch is rated up to 10,000 cycles, ensuring durability for repetitive switching tasks.

The terminals use solder tab types for strong and dependable electrical connections, and the switch meets RoHS environmental compliance standards. Its dimensions include a 1.5-inch long spindle and 0.25-inch diameter with a 30mm flat surface for mounting security, complemented by an 8mm long bush with a 9.52x32 TPI thread.

This switch is widely applicable in industrial automation systems, electronic equipment control, and other commercial electrical panels requiring compact and reliable switching solutions.

Provides 6 selectable positions for flexible circuit control. Double Pole Single Throw (DPST) contact configuration ensures simultaneous switching of two circuits. Compact body made of durable polyamide material. Rated for 250V AC and 24V DC maximum voltages.

Designed for panel mounting with a 27.5mm diameter housing. Operable in temperatures ranging from -30°C to 85°C. Features silver actuator color with a 90° angle of throw for precise control. Robust mechanical life of 10,000 cycles for long-term use.

Terminals utilize solder tab type for secure wiring connections. Conforms to RoHS standards, ensuring environmental compliance. Explore a wide selection of Rotary Switches and electrical components at EnvMart for reliable industrial and laboratory applications.
