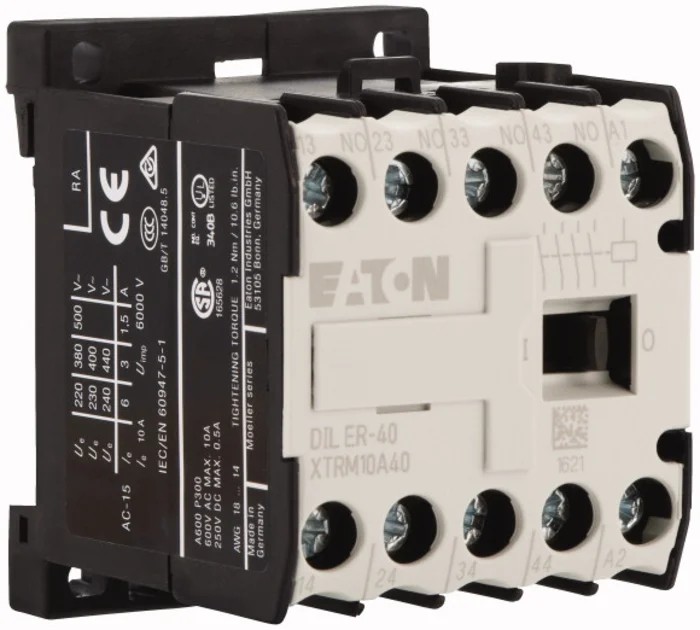

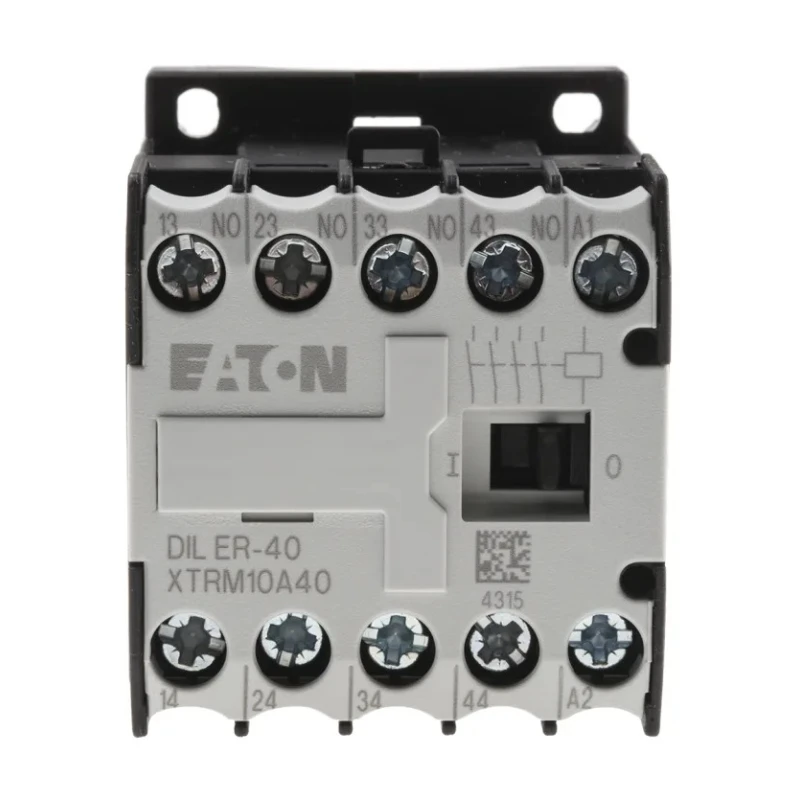

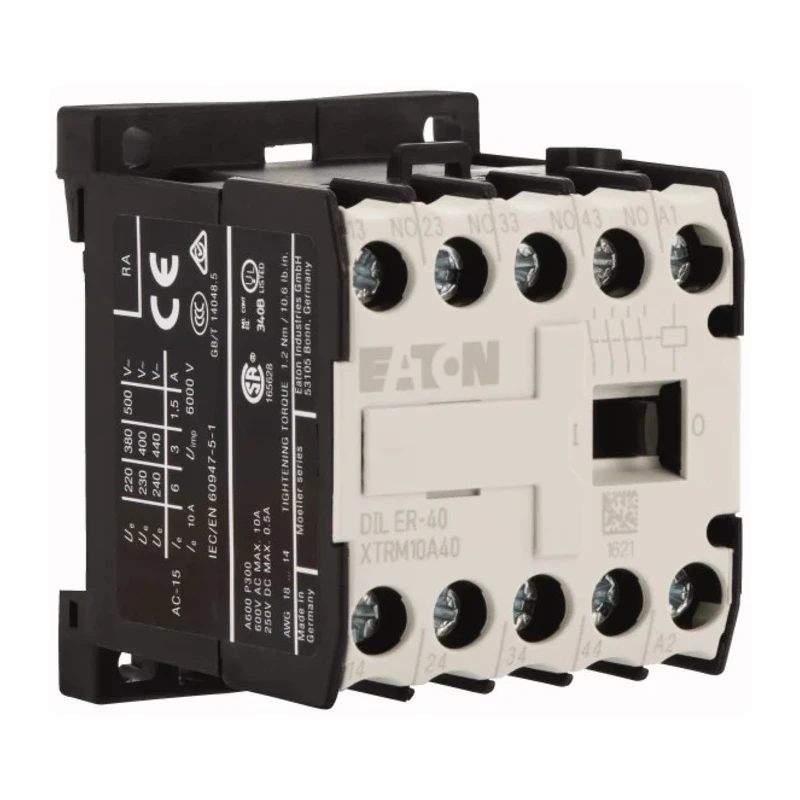

Eaton DILER Contactor Motor Control with 230V AC Coil, 10 A Current, 4 NO Contacts, 400V 051759 DILER-40(230V50HZ,240V60HZ)

Free Delivery in India | Lowest Global Shipping Charges

Eaton DILER Contactor Motor Control with 230V AC Coil, 10 A Current, 4 NO Contacts, 400V 051759 DILER-40(230V50HZ,240V60HZ)

Name: Eaton DILER Contactor Motor Control with 230V AC Coil, 10 A Current, 4 NO Contacts, 400V 051759 DILER-40(230V50HZ,240V60HZ)
Brand: Eaton
SKU: 155395
Price: 76.1 USD
Availability: InStock



Category Contactors Brand Eaton Condition New

Specifications

Country of Origin	Germany
Brand	Eaton
Function	Motor Control
Length	58mm
Model	051759 DILER-40(230V50HZ,240V60HZ)
Depth	54mm
Width	45mm
Mount Type	DIN Rail
Series	DILER
Maximum Operating Temperature	40°C
Minimum Operating Temperature	-25°C
Terminal type	Screw
Contact Voltage	400V ac
Coil Voltage	230V ac
Normal State Configuration	4 NO
Contact Current	10A
Number of Auxiliary Contacts	4
Auxiliary Contact Configuration	4 NO/4 NC
Operational Current Ie	10A
Contactor Application	Motor Control
Pole and Throw Configuration	4

Key Features

Features 4 normally open (NO) contacts for effective circuit control.
Operates with a contact voltage of 400V AC suitable for motor control applications.
Designed to function within temperature range of -25°C to 40°C.
Mounts easily on DIN rails with screw type terminals for secure connections.
Complies with international standards including CSA, EN 60947-5-1, IEC/EN 60947, UL, and VDE 0660.
Compact dimensions allow installation in space-limited control panels.
Supports approximately 10 million mechanical operations ensuring high durability.
Equipped with 4 auxiliary contacts configured as 4 NO/4 NC to extend functionality.

Product Description

Eaton 051759 DILER-40(230V50HZ,240V60HZ) Contactor is a precision-engineered electrical component optimized for motor control applications, featuring a 230V AC coil and 400V AC contact voltage.

This contactor supports a maximum contact current of 10 amperes and incorporates four normally open (NO) contacts to control circuits effectively.

Its operational temperature range from -25°C to 40°C ensures robust performance even under challenging industrial environments, and it mounts securely on standard DIN rails with screw terminal connections.

The device carries certifications from multiple authorities including CSA, UL, IEC/EN, and VDE, reflecting its compliance with international quality and safety standards.

With dimensions of 58mm length, 45mm width, and 54mm depth, it is designed for compact installations and offers a prolonged mechanical lifespan rated at 10 million operations, supporting over 9000 cycles per hour.

Equipped with auxiliary contacts (4 NO and 4 NC), this contactor extends control capabilities within automation and control gear systems.

The Eaton DILER series contactors are ideal for industrial uses including manufacturing automation, HVAC control, water treatment facilities, and commercial motor control systems, providing reliable overload protection and circuit breaking capabilities.

Features 4 normally open contacts to protect motors from overloads. Durable mechanical design rated for 10 million operations. Compliance with CSA, EN 60947-5-1, IEC/EN 60947, UL, and VDE standards. Compact size suitable for DIN rail mounting in control panels.

Wide operating temperature range from -25°C to 40°C for harsh environments. Four auxiliary contacts configured as 4 NO/4 NC enhance control flexibility. Screw terminal type ensures secure electrical connections. Designed for motor control applications at 10 A, 400V AC.

Made in Germany ensuring high manufacturing quality. Explore the comprehensive range of Eaton Contactors and automation components at EnvMart for optimal industrial solutions.
