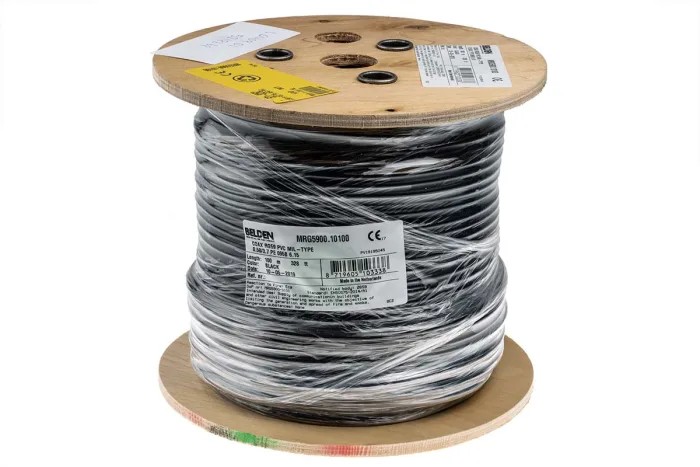

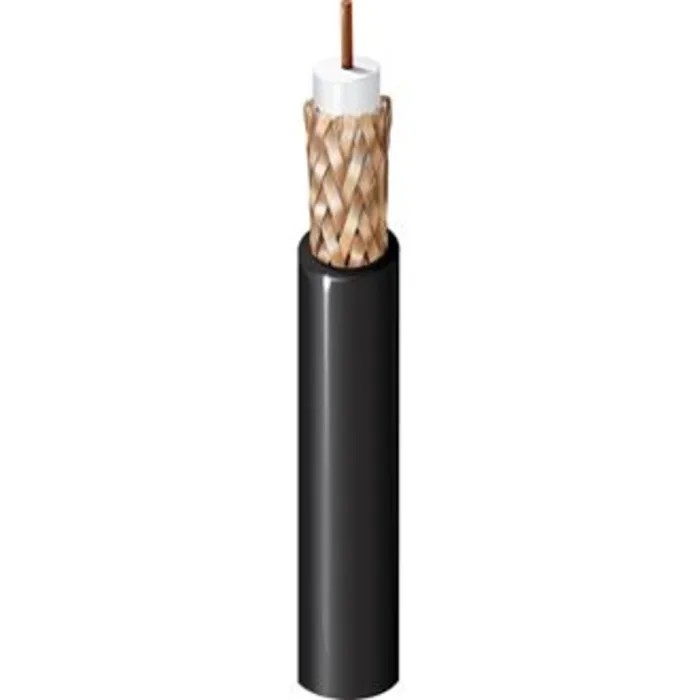

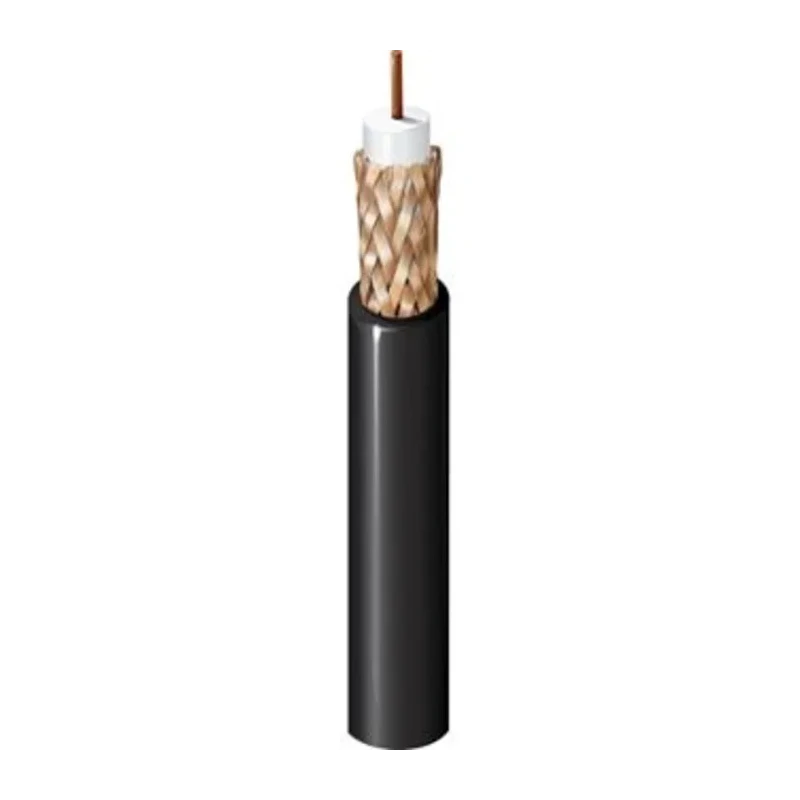

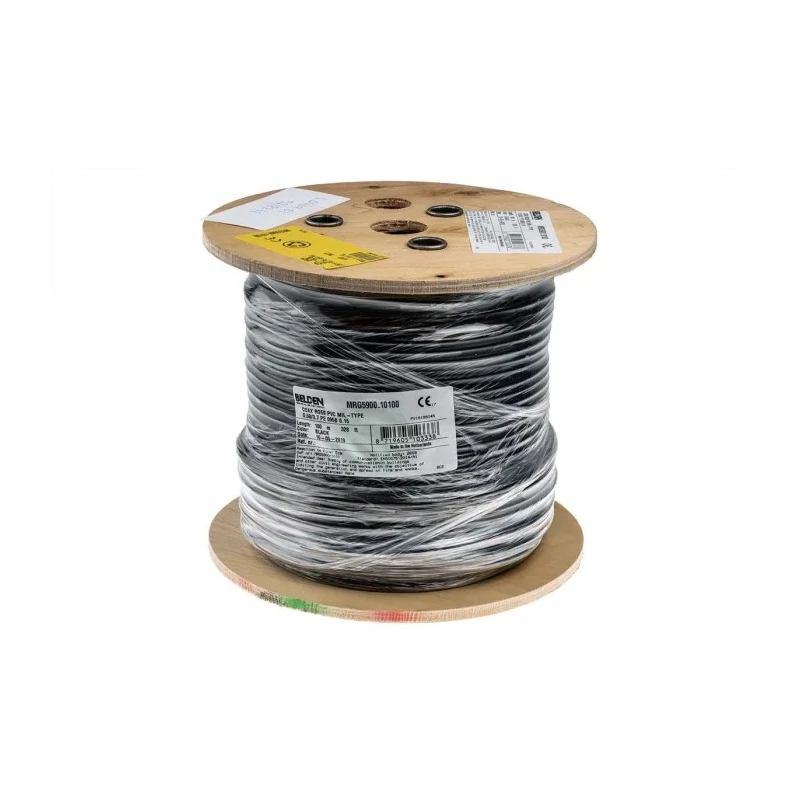

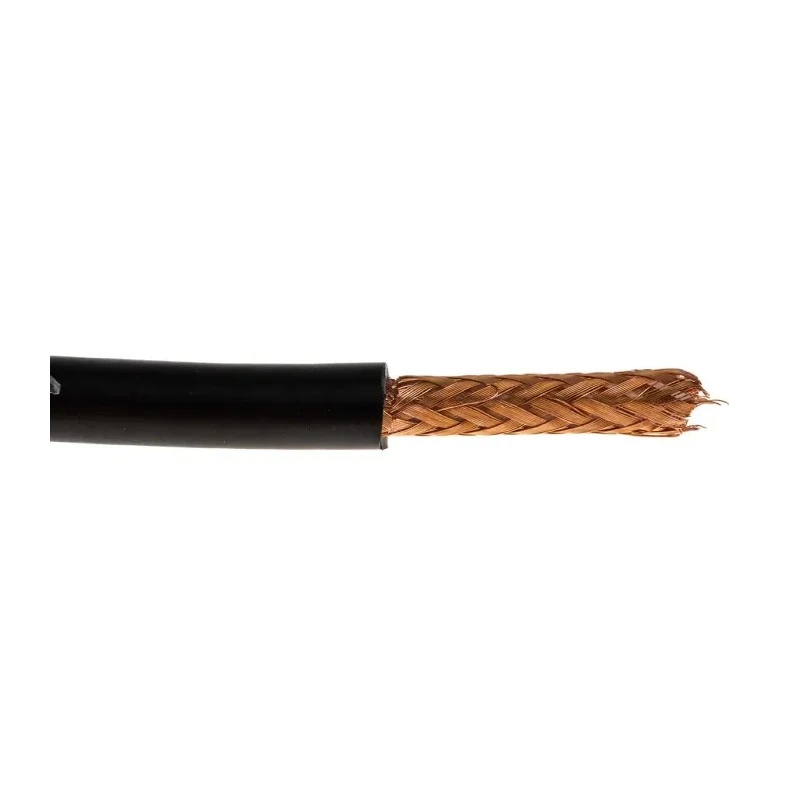

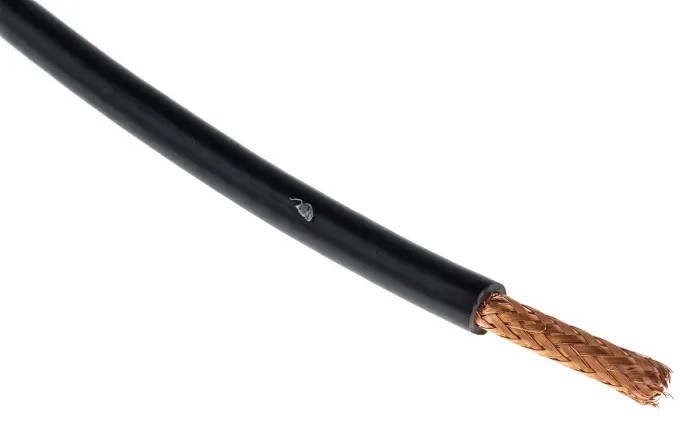

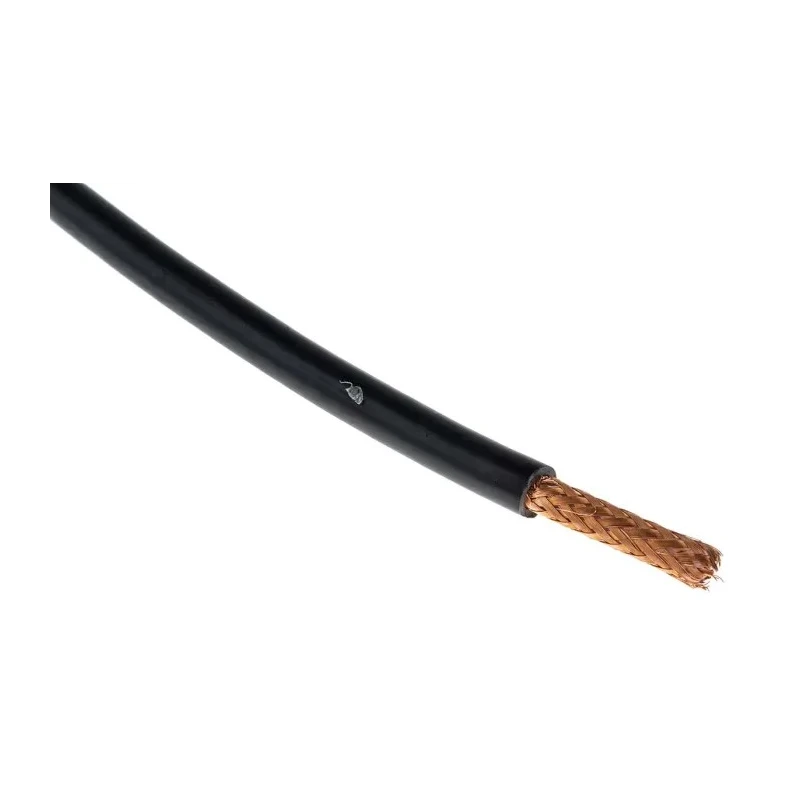

Belden MRG5900 Series RG59 Coaxial SDI Cable 500 m Length 75 Ω Black Unterminated MRG5900.10100
Specifications
| Country of Origin | Netherlands |
|---|---|
| Voltage | 4.2kV |
| Brand | Belden |
| Model | MRG5900.10100 |
| Cable Length | 500m |
| Series | MRG5900 |
| Outside diameter | 6.15mm |
| Maximum Operating Temperature | 70°C |
| Conductor Material | Bare Copper Clad Steel |
| Minimum Operating Temperature | -15°C |
| Jacket Material | Polyvinyl Chloride |
| Attenuation | 2.9 dB |
| Standards/Approvals | Euroclass Eca |
| Characteristic Impedance | 75Ω |
| Jacket Colour | Black |
| Fire Behaviour | IEC 60332-1-2 (Low Smoke Zero Halogen) |
| American Wire Gauge | 23AWG |
| Conductor Type | Solid |
| Number of Strands | 1 |
| Core Strands | 1 x 0.58mm |
| Size of Strands | 0.58mm |
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG59 |
| RG59B/U black PVC coaxial cable,100mBrand | NEUTRAL |
| RS PRO 75 Ω SDI Coaxial Cable, 100 m BlackBrand | RS PRO |
Key Features
- The cable features a solid bare copper clad steel conductor for reliable signal transmission.
- It has a 6.15 mm outside diameter and operates at voltages up to 4.2 kV.
- Rated for operation between -15°C and 70°C suitable for various environments.
- Meets Euroclass Eca standard with IEC 60332-1-2 (Low Smoke Zero Halogen) fire behaviour rating.
- The cable provides excellent attenuation performance at 2.9 dB per 100 meters at 5 MHz frequency.
- Black PVC jacket enhances durability and flexibility for installation.
- Designed primarily for video signal transmission in broadcasting and surveillance applications.
Product Description
Belden MRG5900.10100 is a high-performance RG59 SDI Coaxial Cable designed for professional video signal transmission. With a length of 500 meters and a characteristic impedance of 75 Ω, it is ideal for linking broadcast equipment, video surveillance systems, and installations in theatres and live events.
This cable features a solid bare copper clad steel conductor that ensures excellent conductivity and signal integrity. The cable has an outside diameter of 6.15 mm and is rated for high voltage of 4.2 kV, ensuring robust performance in demanding environments.
Its operational temperature range from -15°C to 70°C allows reliable use in varied climatic conditions. The black Polyvinyl Chloride (PVC) jacket enhances the cable’s durability and flexibility, making it suitable for both indoor and outdoor applications. Compliance with Euroclass Eca and IEC 60332-1-2 fire standards ensures safety and low smoke emission in case of fire.
The cable exhibits minimal signal loss with an attenuation of only 2.9 dB per 100 meters at 5 MHz, contributing to high-quality video transmission. The polyethylene insulation further minimizes electromagnetic interference and prolongs cable life.
Typical applications include standard analogue video signal transmission, studio and broadcast equipment connectivity, live event installations, and high-quality video surveillance systems.
The cable features a solid bare copper clad steel conductor for reliable signal transmission. It has a 6.15 mm outside diameter and operates at voltages up to 4.2 kV. Rated for operation between -15°C and 70°C suitable for various environments.
Meets Euroclass Eca standard with IEC 60332-1-2 (Low Smoke Zero Halogen) fire behaviour rating. The cable provides excellent attenuation performance at 2.9 dB per 100 meters at 5 MHz frequency. Black PVC jacket enhances durability and flexibility for installation.
Designed primarily for video signal transmission in broadcasting and surveillance applications. Explore Belden Coaxial Cable and related networking cables on EnvMart for a variety of professional audiovisual and industrial electrical wiring needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Belden MRG5900 Series RG59 coaxial cable has a maximum operating voltage of 4.2 kV.
This model features a characteristic impedance of 75 Ω, making it suitable for video signal transmission applications.
The cable exhibits an attenuation of 2.9 dB per 100 meters at a frequency of 5 MHz, contributing to minimal signal loss.
It operates effectively within a temperature range of -15°C to 70°C, suitable for various environments.
The cable features a solid bare copper clad steel conductor and a black Polyvinyl Chloride (PVC) jacket.
The outside diameter of the Belden MRG5900 coaxial cable is 6.15 mm.
This model is unterminated, allowing for flexible installation options based on user requirements.
It meets the Euroclass Eca standard and has an IEC 60332-1-2 fire behaviour rating for low smoke zero halogen emissions.
It is primarily designed for video signal transmission in broadcasting, surveillance, and live event installations.
The cable uses a solid conductor type, specifically a bare copper clad steel conductor, for reliable signal transmission.
The minimum operating temperature for the Belden MRG5900 coaxial cable is -15°C.
The Belden MRG5900 Series RG59 coaxial cable is manufactured in the Netherlands.
