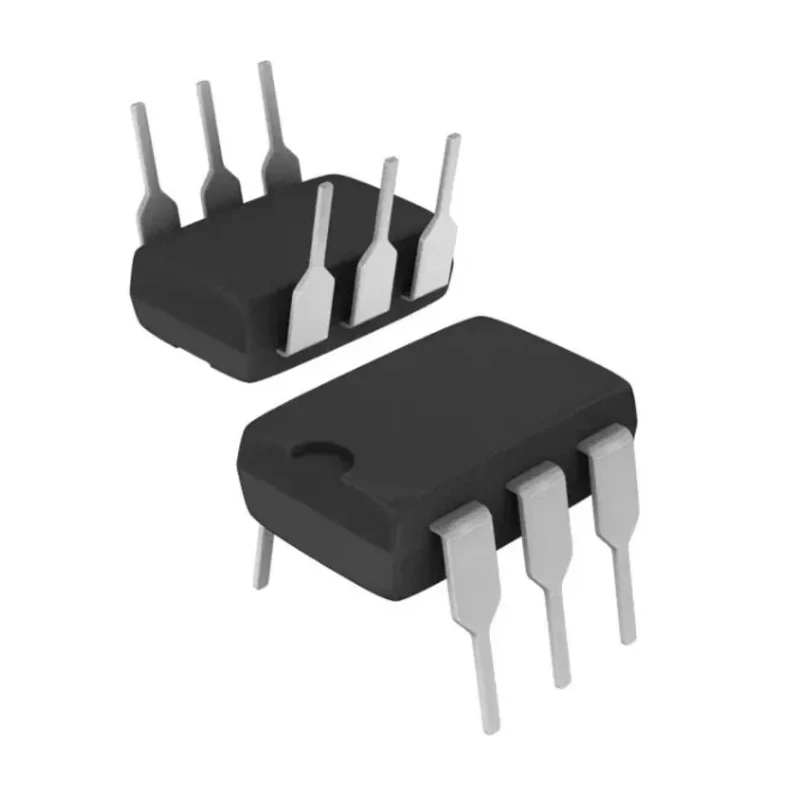

Vishay Optocoupler Through Hole 6-Pin DIP CNY17-4
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Model | CNY17-4 |
| Packaging | Tape & Reel |
| Mount Type | Through Hole |
| Output type | Phototransistor |
| Series | CNY17 |
| Maximum Operating Temperature | 110°C |
| Package Type | DIP |
| Minimum Operating Temperature | -55°C |
| Maximum input current | 60mA |
| Maximum Forward Voltage | 1.65V |
| Number of Pins | 6 |
| Typical Rise Time | 2μs |
| Maximum Current Transfer Ratio | 320% |
| Minimum Current Transfer Ratio | 40% |
Key Features
- Integrated gallium arsenide infrared LED coupled with a silicon NPN phototransistor.
- Offered in an industry standard dual in-line package for ease of PCB assembly.
- Maximum forward voltage of 1.65 V ensures efficient LED operation.
- Supports isolation voltage up to 5000 Vrms for electrical safety.
- Wide operating temperature range from -55°C to 110°C for diverse environments.
- Typical rise and fall time of 2 μs allows fast switching operations.
- Current transfer ratio ranging from 40% minimum to 320% maximum enhances signal reliability.
- RoHS compliant and meets multiple international safety standards including CSA, UL, IEC, and VDE.
Product Description
Vishay CNY17-4 optocoupler is a high-quality optically coupled pair comprising a gallium arsenide infrared emitting diode optically coupled to a silicon NPN phototransistor, housed in a through hole 6-pin dual in-line DIP package. It is designed to provide electrical isolation between input and output circuits while enabling signal transmission via light.
This device finds wide applicability in both digital and analog circuits, including digital interface replacements for relays and transformers and applications such as CRT modulation.
Its robust electrical characteristics include a maximum forward voltage of 1.65 V for the LED, maximum input current of 60 mA, and isolation voltage rated at 5000 Vrms, ensuring safety and reliability in operation.
The CNY17-4 operates over a temperature range from -55°C to 110°C, making it suitable for harsh industrial and electronic environments. Its fast switching times, with typical rise and fall times of 2 microseconds, enable efficient signal processing in speed-sensitive applications.
Integrated LED-phototransistor pair for isolation and signal transfer. 6-pin through hole DIP package suitable for traditional PCB assembly. Isolation voltage up to 5000 Vrms for electrical separation. Broad operating temperature range supports industrial use cases.
Current transfer ratio ensures effective signal modulation and amplification. Compliance with key international standards including CSA, UL, IEC, and VDE ensures quality and safety. Tape and reel packing supports automated manufacturing lines.
The Vishay CNY17 series is a reliable solution for industrial, laboratory, electronic manufacturing, and power supply applications where electrical isolation and efficient interface are critical.
Explore more products in the EnvMart Electronics Components category for precision Optocouplers and electrical isolation devices.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward voltage of the CNY17-4 is 1.65 V, which ensures efficient LED operation.
The CNY17-4 supports an isolation voltage of up to 5000 Vrms, providing electrical safety between input and output circuits.
This model operates over a temperature range from -55°C to 110°C, making it suitable for diverse environments.
The typical rise and fall time for the CNY17-4 is 2 microseconds, allowing for fast switching operations.
The current transfer ratio for this model ranges from a minimum of 40% to a maximum of 320%, enhancing signal reliability.
The CNY17-4 is packaged in tape and reel format, which supports automated manufacturing lines.
This optocoupler has 6 pins, designed for through hole mounting in a dual in-line package.
The output type of the CNY17-4 is a phototransistor, which is used for signal transmission.
The maximum input current for this model is 60 mA, which is critical for its operation.
The CNY17-4 is RoHS compliant and meets multiple international safety standards including CSA, UL, IEC, and VDE.
This model uses a through hole mounting type, suitable for traditional PCB assembly.
The CNY17-4 is applicable in both digital and analog circuits, including digital interface replacements for relays and transformers.
