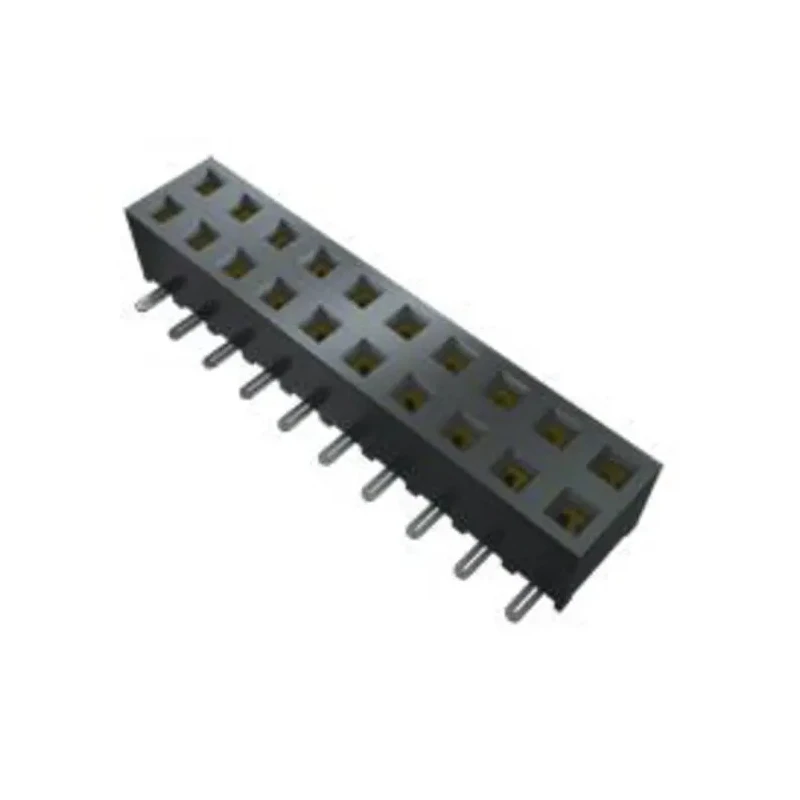

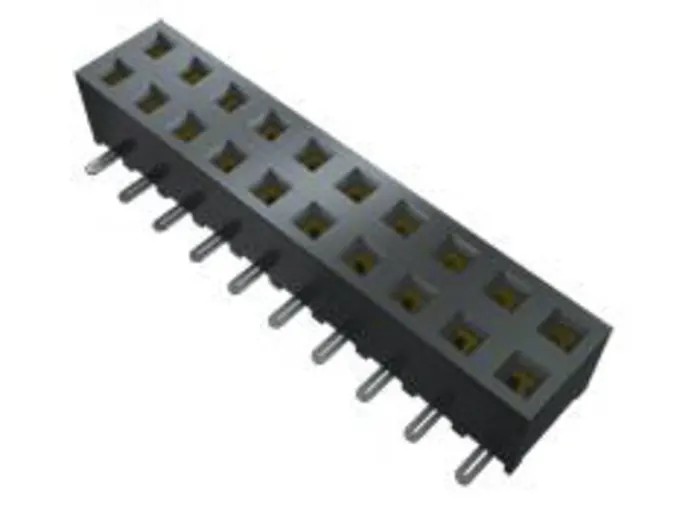

Samtec SMM Series Straight Surface PCB Socket 40-Contact 2 Row 2 mm Pitch Solder SMM-120-01-S-D
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 350V |
| Brand | Samtec |
| Orientation | Straight |
| Current | 3.2A |
| Model | SMM-120-01-S-D |
| Mount Type | Surface |
| Special Features | High-reliability multi-finger Beryllium Copper contact system |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Beryllium Copper Alloy |
| Series | SMM |
| Termination | Surface mount |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Sub Type | High Reliability Socket Strip |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 40 |
| Contact Gender | Female |
| Connector System | Board-to-Board |
| Contact System | Tiger Eye™ |
| Row Pitch | 1.27mm |
Key Features
- This PCB socket offers a straight orientation and surface mount design for board-to-board connection.
- It supports a maximum current of 3.2 A at 350 V voltage rating.
- Housing is made from liquid crystal polymer, ensuring durability under operating temperatures from -55°C to 125°C.
- Contact system uses multi-finger Beryllium Copper alloy with gold plating for enhanced conductivity.
- The connector system is Tiger Eye™ offering reliable mating for single and double row configurations.
- Ideal for industrial and electronic applications requiring high precision and durability.
- Each socket is designed for 40 contact points split evenly across 2 rows with 1.27 mm row pitch.
Product Description
Samtec SMM-120-01-S-D is a straight surface mount PCB socket designed for industrial and electronic applications requiring high reliability and precision. This connector features 40 contacts in a dual-row arrangement with a 2 mm pitch solder termination, making it suitable for board-to-board interfacing.
The housing is constructed from liquid crystal polymer, providing excellent resistance to heat and mechanical stress during operation. It supports voltage up to 350 V and current ratings up to 3.2 A, enabling robust electrical performance in demanding environments.
Contact points are engineered from Beryllium Copper alloy with gold plating to ensure superior conductivity and corrosion resistance. The Tiger Eye™ multi-finger contact system offers reliable mating and long-lasting performance.
Operating temperature ranges from -55°C to 125°C, accommodating a wide variety of industrial and laboratory conditions. Its straight orientation and surface mount design facilitate easy integration onto PCBs with standard 1.27 mm row pitch between contacts.
This connector is specifically designed as a high-reliability socket strip, widely used in electronics manufacturing, testing equipment, and embedded systems requiring precise, durable interconnection solutions.
This PCB Socket offers a straight orientation and surface mount design for board-to-board connection. It supports a maximum current of 3.2 A at 350 V voltage rating. Housing is made from liquid crystal polymer, ensuring durability under operating temperatures from -55°C to 125°C.
Contact system uses multi-finger Beryllium Copper alloy with gold plating for enhanced conductivity. The connector system is Tiger Eye™ offering reliable mating for single and double row configurations. Ideal for industrial and electronic applications requiring high precision and durability.
Each socket is designed for 40 contact points split evenly across 2 rows with 1.27 mm row pitch. Explore our wide range of PCB connectors and sockets at EnvMart for your next industrial or laboratory project.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating of this PCB socket is 3.2 A.
This model can handle a voltage of up to 350 V.
The operating temperature range is from -55°C to 125°C.
The housing is made from liquid crystal polymer.
This PCB socket features 40 contacts arranged in 2 rows.
It uses a high-reliability multi-finger Beryllium Copper contact system known as Tiger Eye™.
The pitch of the contacts is 2 mm, with a row pitch of 1.27 mm.
Yes, this model is designed for surface mount termination.
The termination type is solder.
The contacts in this PCB socket are female.
This PCB socket is ideal for industrial and electronic applications requiring high reliability and precision.
The country of origin for this model is India.
