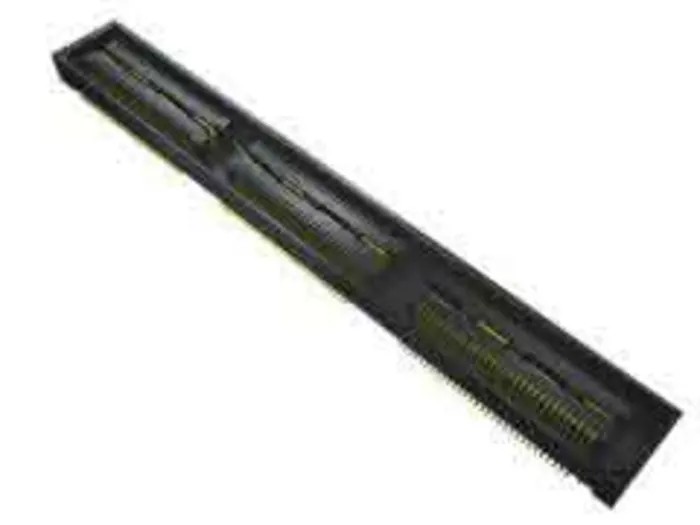

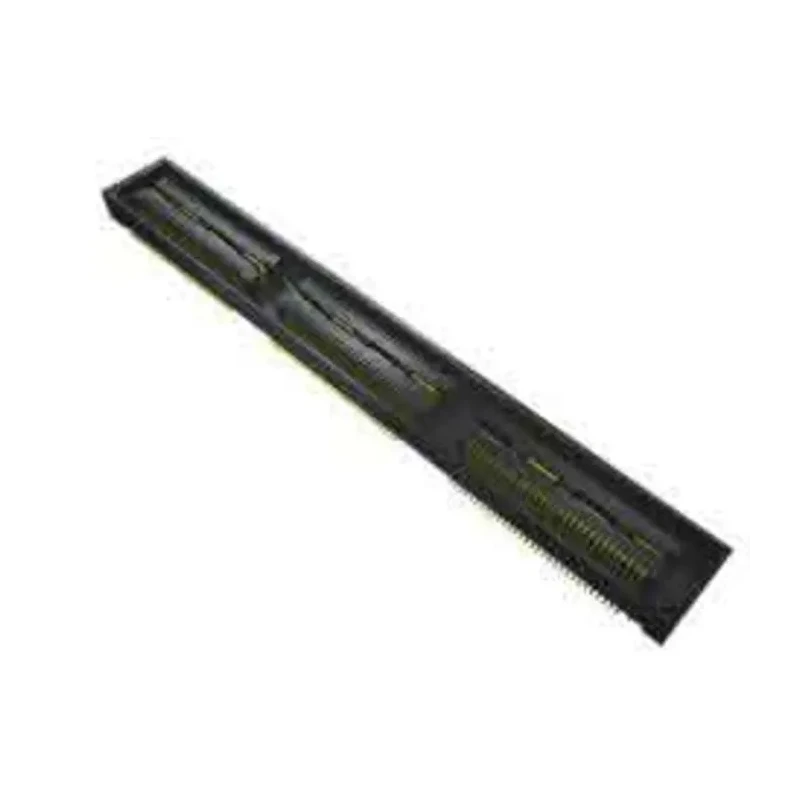

Samtec Straight Surface PCB Socket 60-Contact 2 Row 0.5 mm Pitch Solder 175V QSH-030-01-L-D-A-K-TR

Samtec QSH-030-01-L-D-A-K-TR is a high-performance straight surface PCB socket featuring 60 contacts arranged in 2 rows with a precise 0.5 mm pitch suitable for high-speed ground plane socket strip applications. The socket utilizes a liquid crystal polymer housing material combined with gold-plated bronze contacts to provide durability and excellent electrical performance.

This PCB socket is engineered for demanding industrial and electronic assembly applications requiring board-to-board connector systems with reliable solder termination. It supports a current rating up to 25 A and operates safely within a voltage limit of 175 V, operating across a broad temperature range of -55°C to 125°C.

The socket accommodates stack heights between 5 mm and 30 mm, making it adaptable in various design layouts. As part of Samtec's QSH series, it features Extended Life Product™ (E.L.P.™) technology for enhanced longevity in high-speed digital environments.

This product is RoHS certified, ensuring compliance with environmental regulations. Typical industrial applications include electronics manufacturing, telecommunications, and computing systems requiring precision socket connectors.

Liquid crystal polymer housing for robustness. Gold-plated bronze contacts for reliable conductivity. Operating voltage up to 175 V and current rating of 25 A. Wide operating temperature range from -55°C to 125°C. Surface mount with straight orientation optimizes PCB integration.

Supports 60 contacts in 2 rows with 0.5 mm pitch. Stack height options from 5 mm to 30 mm for flexible design. RoHS compliant design for eco-friendly use. Explore the complete range of PCB Sockets and connectors at EnvMart for tailored electronics assembly solutions.
