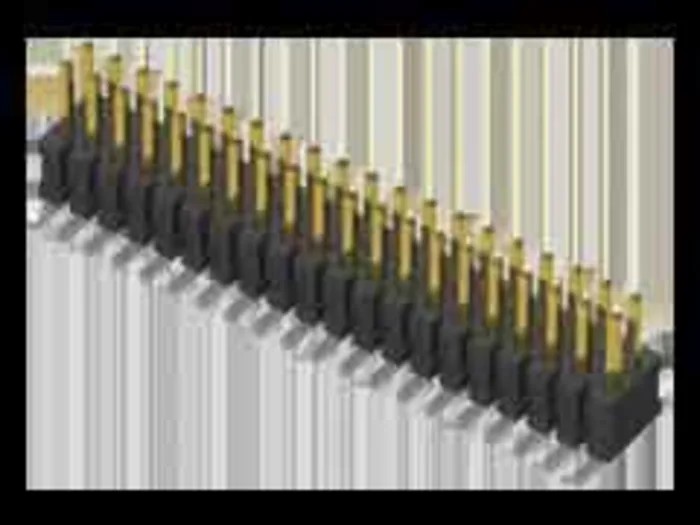

Samtec FTSH Series Straight Surface Pin Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded FTSH-110-01-L-DV-K-P-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec FTSH Series Straight Surface Pin Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded FTSH-110-01-L-DV-K-P-TR

Name: Samtec FTSH Series Straight Surface Pin Header, 20 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded FTSH-110-01-L-DV-K-P-TR
Brand: Samtec
SKU: 154661
Price: 2.97 USD
Availability: InStock



Category PCB Headers Brand Samtec Condition New

Specifications

Country of Origin	India
Brand	Samtec
Orientation	Straight
Current	3.4A
Model	FTSH-110-01-L-DV-K-P-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	FTSH
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	1.27mm
Contact Plating	Gold
Number of Contacts	20
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Wire-to-Board
Tail Pin Length	0.1mm
Mating Pin Length	3.05mm

Key Features

Constructed with high-quality liquid crystal polymer housing for durability.
Contact material is phosphor bronze with gold plating for excellent conductivity.
Designed for surface mount installation with solder termination for secure connections.
Rated for a current of 3.4A and operating temperatures from -55°C to 125°C.
Includes straight orientation with male contact gender and tail pin length of 0.1 mm.
Offers a compact 1.27 mm row pitch and mating pin length of 3.05 mm for precise PCB integration.
Unshrouded design enables easy access and mounting flexibility.
Compatible with wire-to-board connector systems, suitable for industrial and electronic applications.

Product Description

Samtec FTSH-110-01-L-DV-K-P-TR is a high-performance Straight Surface Pin Header designed for reliable electronic connections in PCB applications. This connector comprises 2 rows of 20 male contacts spaced at a precise 1.27 mm pitch, enabling compact and efficient wiring layouts.

The housing is made from liquid crystal polymer, providing excellent mechanical strength and heat resistance, suitable for operating temperatures ranging from -55°C to 125°C. The phosphor bronze contacts with gold plating ensure superior conductivity and corrosion resistance, ideal for long-term electrical performance.

Designed for surface mount technology, it features solder termination to secure the connector firmly onto PCBs. Its unshrouded, straight orientation allows easy insertion and removal of mating connectors, facilitating maintenance and assembly in electronic production environments.

This header supports a current rating of 3.4A, making it suitable for medium power electronic circuits. The tail pin length is 0.1 mm, and the mating pin length is 3.05 mm ensuring precise alignment and connectivity. This product integrates seamlessly with wire-to-board systems, widely used across industrial, manufacturing, aerospace, and telecommunications sectors.

The FTSH Series also offers variations with different post heights, shrouding options, and configurations, addressing diverse design needs. This particular model does not include end shroud, providing flexibility in layout and access.

Constructed with liquid crystal polymer housing for strength and durability. Phosphor bronze contacts with gold plating for enhanced conductivity. Surface mount solder termination ensures a secure connection. Rated for continuous operation between -55°C and 125°C temperatures.

20 contacts in 2 rows spaced at 1.27 mm pitch for compact PCB layouts. Straight orientation male pin design for convenient mating. Supports 3.4A current for medium power applications. Compatible with wire-to-board connector systems in various industries.
