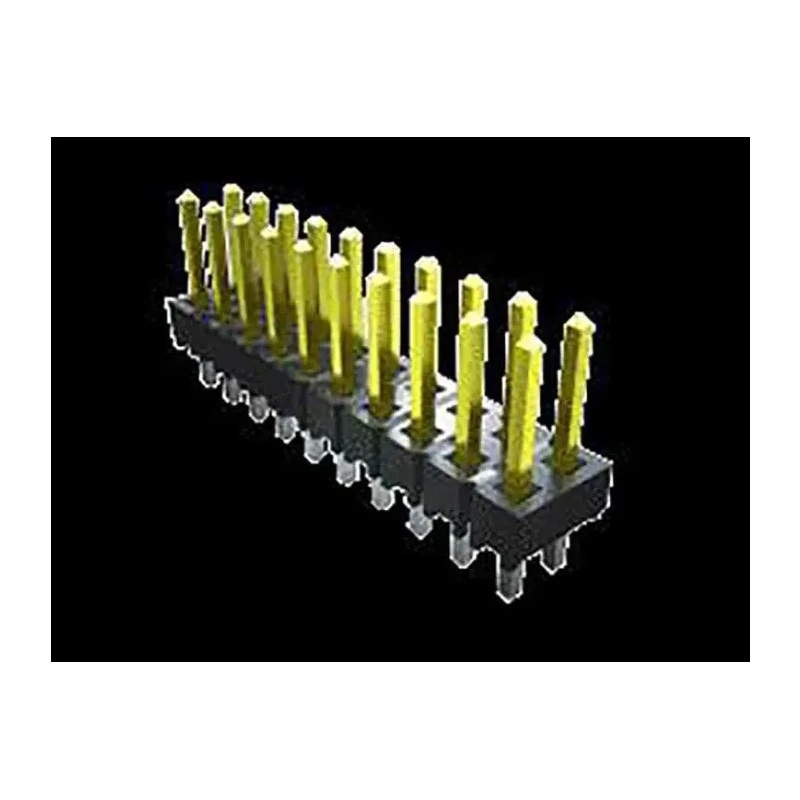

Samtec TSW Series Straight Through Hole Pin Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Unshrouded TSW-108-07-S-D

Samtec TSW Series Pin Header model TSW-108-07-S-D is a precise and versatile through-hole connector designed for PCB applications requiring secure, reliable board-to-board electrical connections. This unshrouded pin header features 16 male contacts arranged in 2 rows with a 2.54 mm pitch, standardizing its compatibility with a large variety of electronic circuit designs.

The housing is molded from polybutylene terephthalate, providing excellent mechanical strength, thermal stability, and resistance to chemicals, ensuring longevity in industrial, manufacturing, and commercial electrical assemblies. Phosphor bronze contacts with gold plating deliver superior electrical conductivity and corrosion resistance, minimizing contact resistance over time.

Engineered to handle up to 4.3 amperes of current and withstand voltages up to 550 volts, this connector suits demanding power and signal transfer scenarios. Its operating temperature range of -55°C to 125°C enables use in harsh environments including industrial automation, HVAC equipment, and laboratory instruments.

The connector design includes a tail pin length of 2.54 mm and a mating pin length of 5.84 mm, optimizing soldering reliability and mating consistency in through-hole PCB assembly processes. The vertical orientation and unshrouded pin style provide flexibility in connector system layouts and ease of access for mating connectors.

Special features include multiple plating and ruggedizing options to optimize performance and cost, making this connector suitable for large-scale manufacturing or customized electronic hardware projects. It is ideal for use in electronic assemblies where reliable, durable interfacing is critical.

The connector features 2 rows of unshrouded male pins for secure board-to-board connections. Constructed with a polybutylene terephthalate housing for durability and chemical resistance. Contacts are made of phosphor bronze and plated with gold to enhance conductivity and corrosion resistance.

Supports a current rating of 4.3 amperes and voltage rating up to 550 volts. Operating temperature ranges from -55°C to 125°C, suitable for demanding environments. Tail pin length is 2.54 mm and mating pin length is 5.84 mm, ensuring reliable solder-through connections.

Through-hole mounting type supports vertical orientation for easy PCB integration. Designed without shrouding to allow flexible mating options while maintaining electrical integrity. Offers a contact system of 0.025-inch square posts to provide stable mechanical and electrical performance.

Applications include use in industrial equipment connectors, electronic manufacturing, laboratory instruments, HVAC systems, and commercial electronics assembly. The Samtec TSW series offers dependable connectivity solutions for high-performance electronics.
