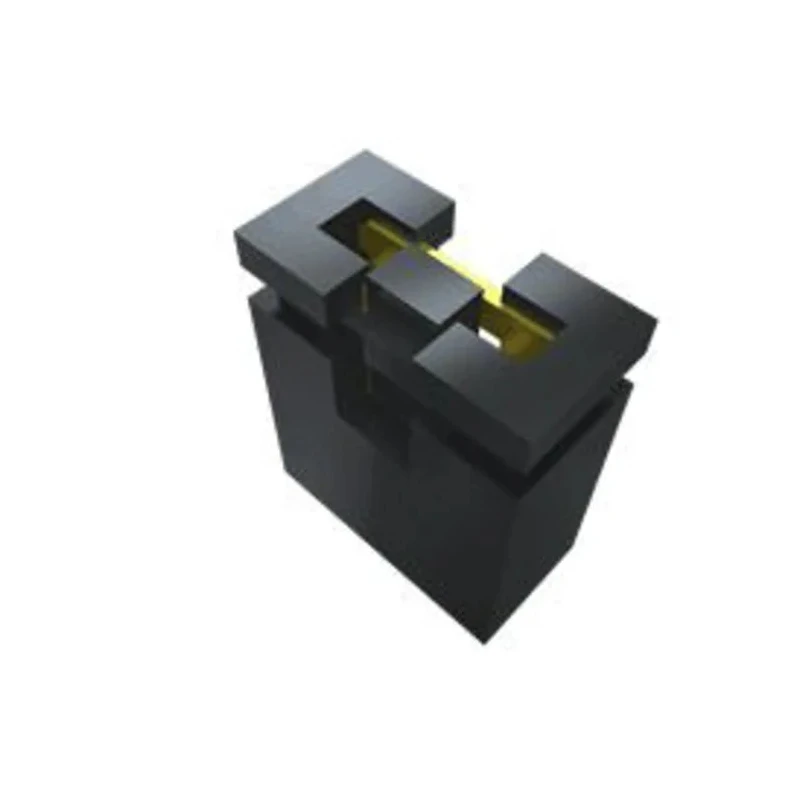

Samtec Shunt Straight Female Black, 2 Way, 1 Row, 2.54 mm Pitch SNT-100-BL-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Samtec |
| Colour | Black |
| Orientation | Straight |
| Current | 4.3A |
| Length | 5.08mm |
| Model | SNT-100-BL-T |
| Depth | 6.1mm |
| Width | 2.54mm |
| Housing Material | Glass Filled Polyester |
| Contact Material | Phosphor Bronze |
| Series | SNT |
| Sub Type | Shunt |
| Number of Rows | 1 |
| Positions | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 2 |
| Contact Gender | Female |
| Connector Gender | Female |
Key Features
- The shunt features phosphor bronze contact material ensuring reliable conductivity.
- It has a glass filled polyester housing for enhanced durability and insulation.
- The compact dimensions include length 5.08 mm, width 2.54 mm, and depth 6.1 mm.
- The contact plating is tin, providing good corrosion resistance.
- Rated current is 4.3 A suitable for low power PCB jumper applications.
- Connector gender is female with straight orientation for easy plug-in.
- The product is black in color and part of the SNT series.
Product Description
Samtec SNT-100-BL-T is a straight female shunt connector commonly used in electronic PCB applications. It offers a 2-way contact system with a pitch of 2.54 mm, providing precise spacing suitable for standard PCB layouts. The connector's housing is constructed from glass filled polyester, delivering mechanical robustness and electrical insulation under various industrial conditions.
Featuring phosphor bronze contacts with tin plating, this shunt ensures dependable electrical conductivity and corrosion resistance for reliable signal transmission. The compact size with length 5.08 mm, width 2.54 mm, and depth 6.1 mm allows for dense component placement on circuit boards.
This product is rated for a current of 4.3 A, making it suitable for low current jumpers and signal routing within industrial and commercial electronics assemblies. The female connector design with straight orientation provides secure mating with compatible male headers in multiple configurations.
Available in black color and belonging to the well-known SNT series, this connector is designed to comply with standard PCB component requirements without specific certifications or approvals.
The shunt features phosphor bronze contact material ensuring reliable conductivity. The housing is made of durable glass filled polyester. Compact dimensions of length 5.08 mm, width 2.54 mm, and depth 6.1 mm support high-density board designs.
The tin-plated contacts provide corrosion resistance for long service life. Rated current of 4.3 A suitable for low power electronics applications. Female straight connector orientation for secure mating. Black color suitable for easy visual identification on PCBs.
Two-position single row configuration.
Common industrial uses include electronics manufacturing, repair, research laboratories, and commercial equipment assembly. This component helps in creating jumper connections and wiring configurations for circuit tuning and prototyping.
Explore further products in the Jumpers & Shunts category for compatible components and accessories on EnvMart.
Explore more products in our Jumpers & Shunts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated current for this shunt connector is 4.3 A, making it suitable for low power PCB jumper applications.
This model has compact dimensions: length of 5.08 mm, width of 2.54 mm, and depth of 6.1 mm.
The pitch of the connector is 2.54 mm, which is standard for many PCB layouts.
The housing is made of glass filled polyester, while the contact material is phosphor bronze with tin plating for corrosion resistance.
The connector features a straight orientation, facilitating easy plug-in with compatible male headers.
This shunt connector has 2 positions in a single row configuration.
The product is manufactured in India.
This connector is part of the SNT series, which is known for its reliable performance in PCB applications.
The SNT-100-BL-T is black in color, allowing for easy visual identification on PCBs.
Common applications include electronics manufacturing, repair, research laboratories, and commercial equipment assembly for jumper connections and circuit tuning.
This connector features 2 contacts, designed for a two-way connection system.
This model has a female connector gender, suitable for secure mating with compatible male headers.
