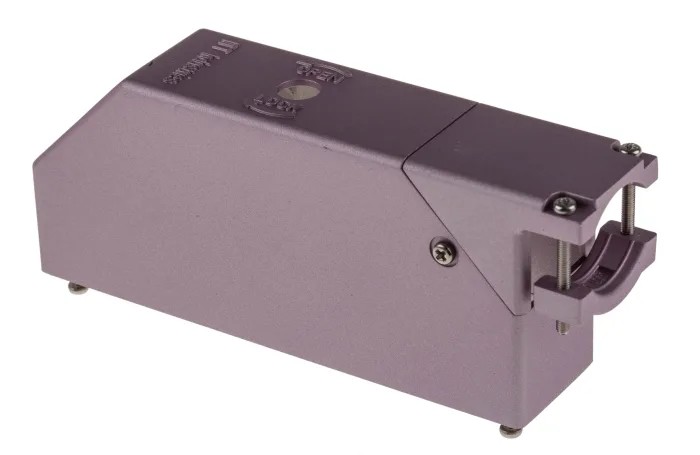

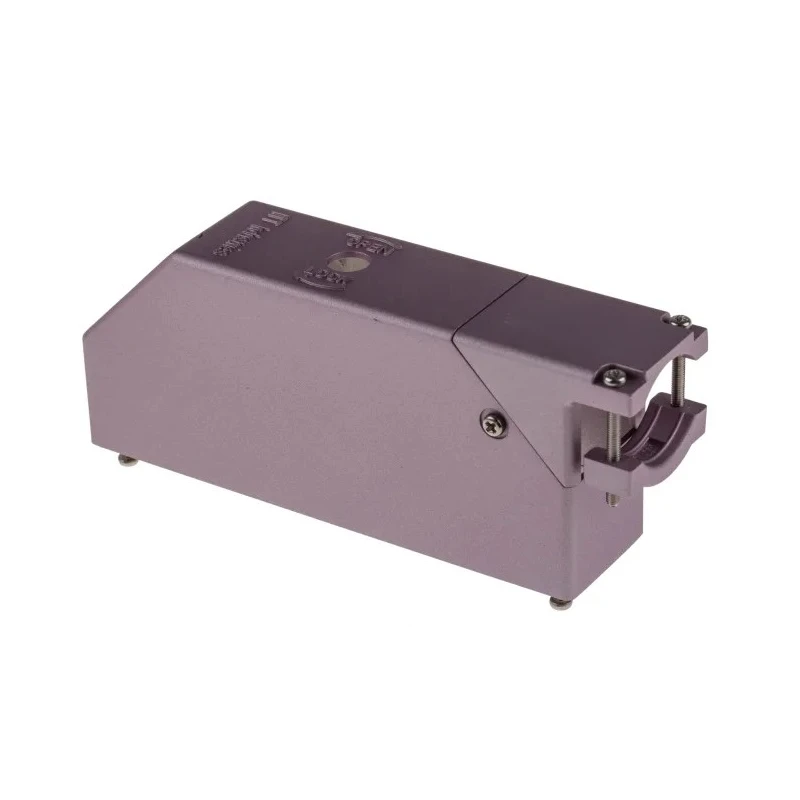

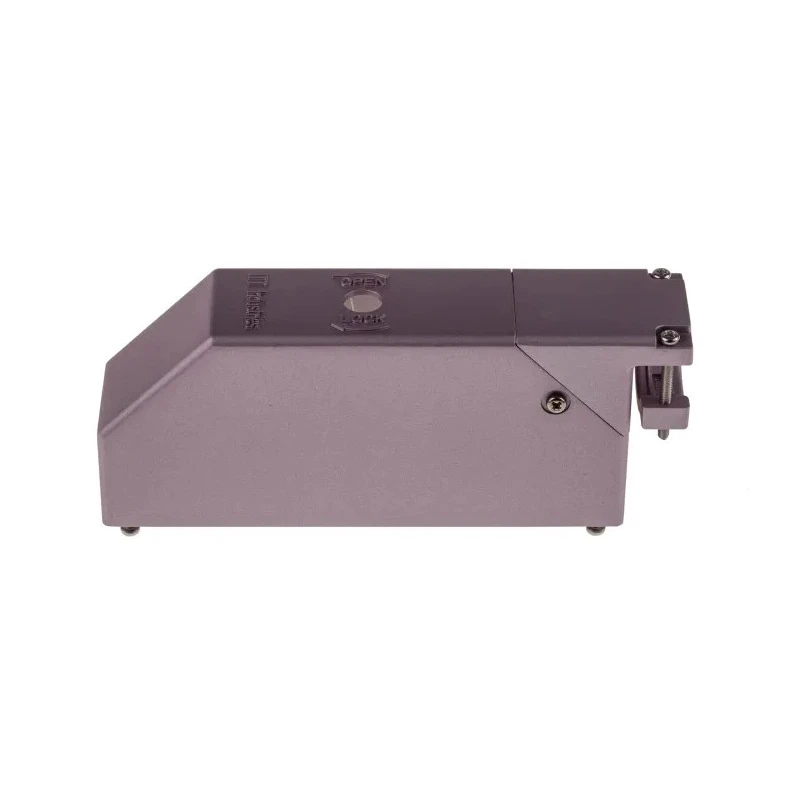

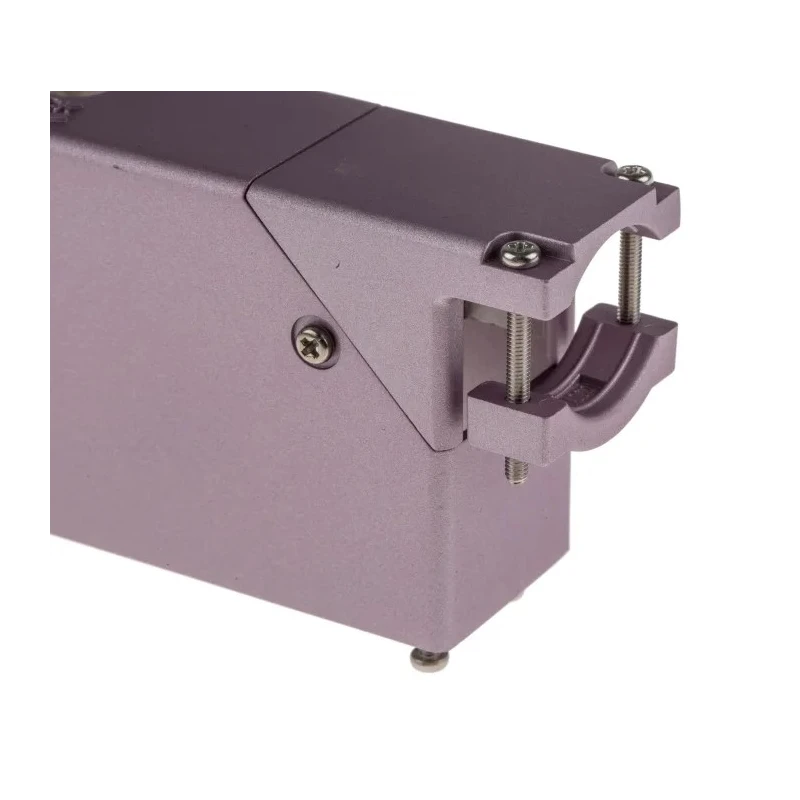

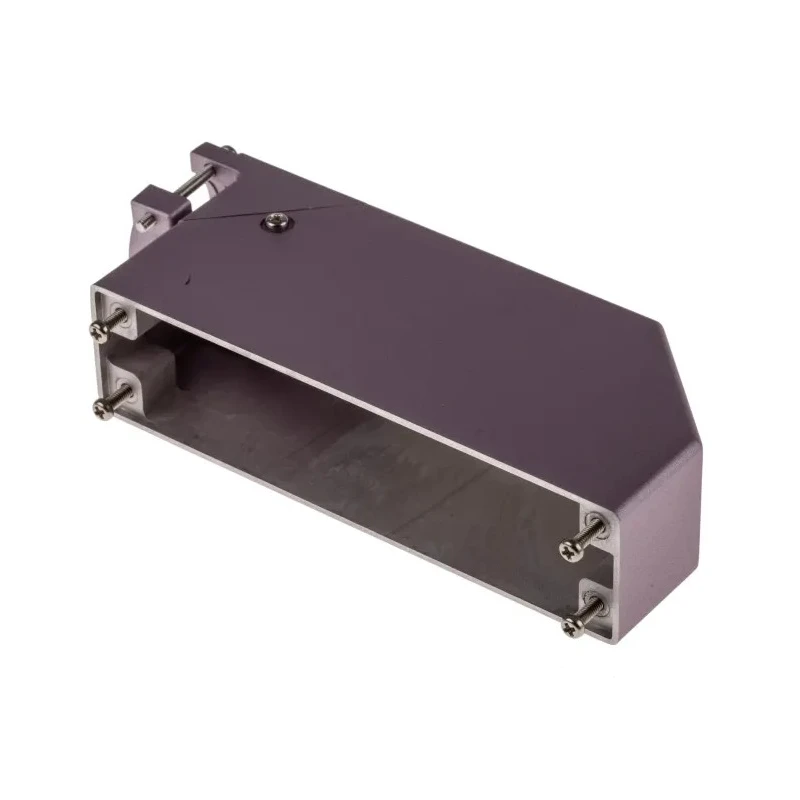

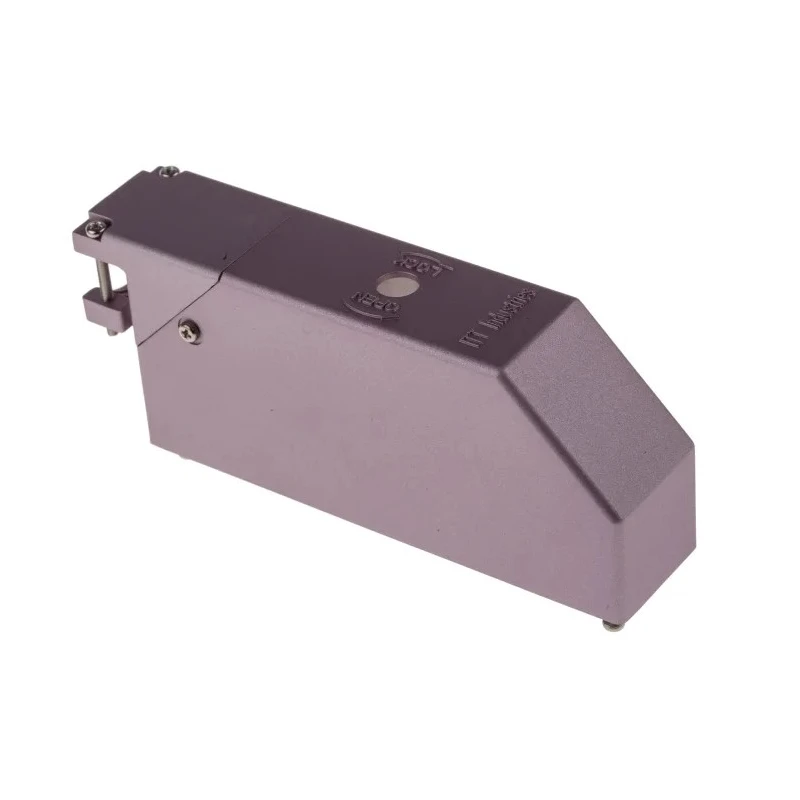

ITT Cannon DL ZIF Backshell Backplane Connector 156 Contacts 5A Metal Housing Straight Orientation DL1

ITT Cannon DL1 ZIF Backshell Backplane Connector is a high-quality metal backshell designed for 156-way ZIP connectors. It features a robust nickel-over die-cast aluminium shell and stainless steel hardware, delivering reliability and durability in demanding environments. This straight mounting backshell includes 2 shells, 10 screws, 1 wire hood, 1 wire clamp, and a lock/open indication seal to provide comprehensive strain relief and polarization options.

The cam actuated zero insertion force (ZIF) coupling mechanism facilitates easy mating and unmating of connectors, minimizing connector and contact damage. The screw clamp termination ensures secure and stable electrical connections capable of handling up to 5 amperes of current. With a maximum cable entry size of 19.05 mm, this backshell accommodates a wide range of cable diameters.

Designed for industrial and professional use, the DL1 backshell is ideal for applications in the broadcast and avionics industries, computer systems, and medical instrumentation, where high reliability and secure connector housing are critical.

Durable nickel-over die-cast aluminium shell with stainless steel hardware for extended service life. Cam actuated ZIF coupling enables easy connector engagement and disengagement. Includes all necessary components: 2 shells, 10 screws, wire hood, wire clamp, and lock/open seal.

Screw clamp termination type provides reliable, maintenance-free connections. Supports 156 contacts with a current rating of 5 amperes. Straight orientation backshell suitable for various industrial cable installations. Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards for electrostatic discharge protection.

Country of origin: Japan. For a wide range of industrial electronics and power connector applications, explore the EnvMart category for Backplane Connectors and related ITT Cannon products.
