TDK 10 pF 50V DC Multilayer Ceramic Capacitor Surface Mount Tape & Reel CGA2B2NP01H100D050BA

Free Delivery in India | Lowest Global Shipping Charges

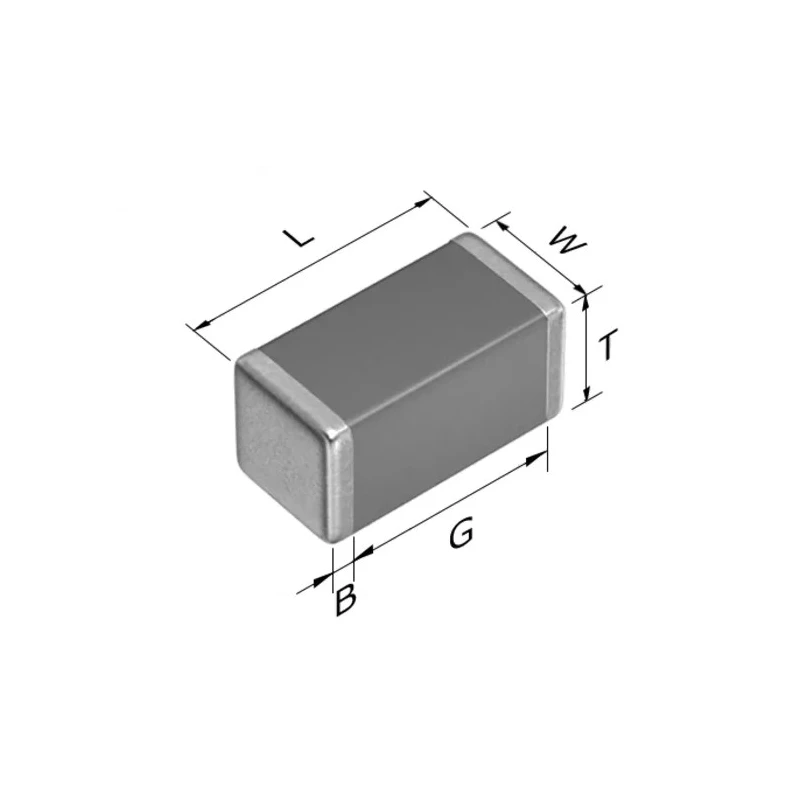

TDK 10 pF 50V DC Multilayer Ceramic Capacitor Surface Mount Tape & Reel CGA2B2NP01H100D050BA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	50V dc
Brand	TDK
Height	0.5mm
Length	1mm
Model	CGA2B2NP01H100D050BA
Packaging	Tape & Reel
Width	0.5mm
Mount Type	Surface
Series	CGA
Termination Type	Surface Mount
Maximum Operating Temperature	150°C
Tolerance	0.5 pF
Capacitance	10pF
Minimum Operating Temperature	-55°C
Package/Case	0402
Dielectric	C0G
Automotive Standard	AEC-Q200
Suppression Class	Class I

Key Features

Capacitance value of 10 pF with a tolerance of ±0.5 pF.
Rated for a maximum operating voltage of 50V DC.

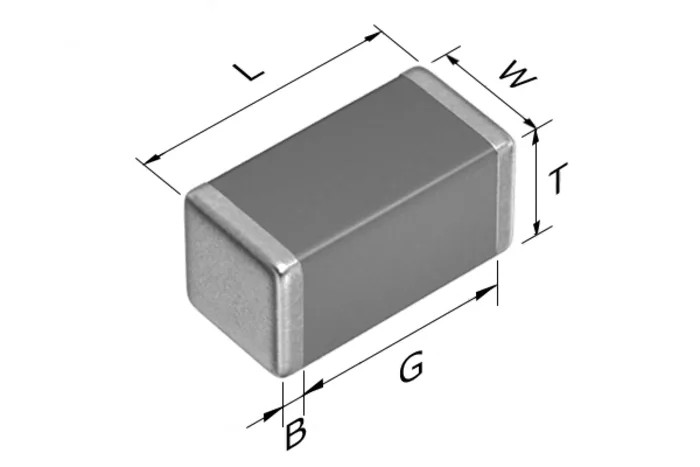

Package size 0402 (1mm x 0.5mm x 0.5mm) for compact surface mounting.
Dielectric material type C0G, Class I with excellent temperature stability.
Compliance with automotive standard AEC-Q200 suitable for harsh environments.
Operating temperature range from -55°C to +150°C supports high temperature applications.
Termination type is surface mount, facilitating automated PCB assembly.
Available in tape and reel packaging for efficient handling and assembly.

Product Description

TDK CGA2B2NP01H100D050BA is a multilayer ceramic capacitor designed for surface mount technology with a capacitance of 10 pF and a voltage rating of 50 volts DC. This capacitor uses a C0G dielectric, classified as Class I, which provides high stability and low losses over a wide temperature range. It features a compact 0402 package size of 1 mm length, 0.5 mm width, and 0.5 mm height, making it suitable for dense PCB layouts.

This capacitor is compliant with the automotive standard AEC-Q200, ensuring reliable performance in automotive engine compartments and other demanding environments. It operates reliably between -55°C and +150°C, making it ideal for high temperature applications such as sensor modules, smoothing, and decoupling circuits in automotive and power electronics.

The product is terminated for surface mounting and supplied in tape and reel packaging for ease of automated PCB assembly. Its excellent DC bias properties and capacitance change within ±15% at maximum temperature assure precise and stable performance in critical electronic applications.

Capacitance of 10 pF with tight tolerance of ±0.5 pF supports precision circuits. Rated voltage of 50V DC suitable for low-voltage automotive and industrial uses. Compact 0402 size supports miniaturized electronic devices.

C0G dielectric material ensures Class I temperature stability and low losses. Meets automotive grade AEC-Q200 for enhanced reliability. Wide operating temperature range from -55°C to 150°C. Surface mount termination facilitates SMT assembly processes.

Supplied in tape and reel packaging formats for efficient line feeding. Ideal for smoothing, decoupling, and filtering in power and sensor applications.

This Multilayer Ceramic Capacitor is suitable for applications across automotive, industrial electronics, sensor modules, and other high-temperature environments. Its robust specifications ensure durability and precision in demanding use cases. Browse the Electronics Components category at EnvMart for more capacitors and related products from TDK and other leading brands.
