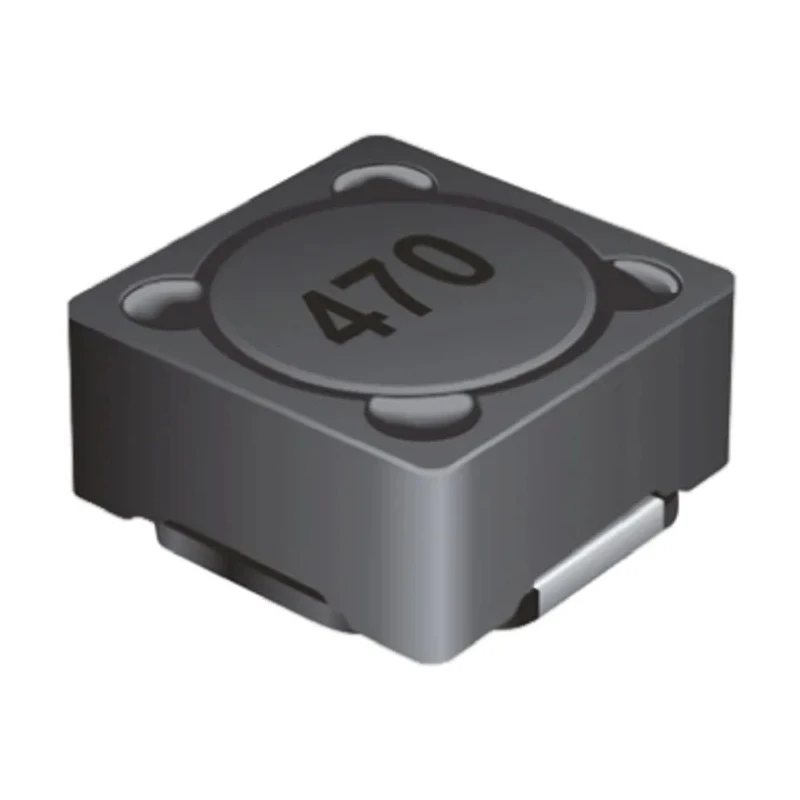

Bourns Shielded Surface Mount Inductor 12 μH ±20% 5.2A Idc Ferrite DR & RI Core SRR1260
Specifications
| Country of Origin | India |
|---|---|
| Brand | Bourns |
| Height | 6mm |
| Length | 12.5mm |
| Model | SRR1260 |
| Depth | 12.5mm |
| Packaging | Reel |
| Series | SRR1260 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite DR & RI |
| Inductance | 12μH |
| Standards/Approvals | RoHS |
| Package/Case | 1260 |
| Maximum DC Current | 5.2A |
| Maximum DC Resistance | 23mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 19.4MHz |
| Minimum Quality Factor | 27 |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded wire wound design minimizes EMI.
- Uses ferrite DR & RI core materials for high performance.
- Compact 1260 package size with low profile height of 6 mm.
- Rated for operating temperatures from -40°C to 125°C.
- Ideal for input/output stages in DC/DC converters and power supplies.
- High quality factor (Q) of 27 ensures efficiency at high frequencies.
- Maximum DC resistance of 23 mΩ maintains low power loss.
- Available in reel packaging for manufacturing automation.
Product Description
Bourns SRR1260 series shielded surface mount inductors provide reliable, high current inductance with a compact design. Featuring a ferrite DR and RI cores, these wire wound inductors deliver 12 μH inductance with ±20% tolerance and support maximum DC currents up to 5.2 A. Their shielded construction reduces electromagnetic interference, making them suitable for sensitive electronic circuits.
Measuring 12.5 mm in length, 12.5 mm in depth, and a low profile height of 6 mm, the SRR1260 inductors fit easily in space-constrained applications. They operate over a wide temperature range from -40°C to 125°C, ensuring stable performance in harsh environments. The maximum DC resistance of 23 milliohms helps maintain energy efficiency in power systems.
Typical applications include use in the input and output stages of DC/DC converters and power supplies for portable communication devices, camcorders, LCD TVs, and automotive radios. Their high quality factor (Q) of 27 and self-resonant frequency of 19.4 MHz make them ideal for high frequency switching power supplies.
The inductors are supplied in reel packaging to facilitate automated placement on assembly lines, improving production efficiency and consistency. With RoHS compliance, these inductors meet environmental standards for manufacturing.
Magnetically shielded wire wound construction reduces EMI. Compact dimensions suitable for dense PCB layouts. High current rating of 5.2 A for robust power handling. Wide operating temperature range from -40°C to 125°C. Low DC resistance minimizes power losses.
RoHS compliant for environmental safety. Ferrite DR & RI core ensures stable inductance.
This Bourns SRR1260 surface mount inductor is an excellent choice for industrial, telecommunications, consumer electronics, automotive, and power management applications. Browse EnvMart’s full catalog of Surface Mount Inductors and PCB components to find complementary parts for your design needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 12 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 5.2 A.
It has a low profile height of 6 mm.
The maximum DC resistance is 23 mΩ, which helps maintain low power loss.
It operates over a wide temperature range from -40°C to 125°C.
The maximum self-resonant frequency is 19.4 MHz.
It uses ferrite DR & RI core materials for high performance and stability.
It is supplied in reel packaging, facilitating automated placement on assembly lines.
Typical applications include input and output stages in DC/DC converters and power supplies.
The inductor has a minimum quality factor (Q) of 27, ensuring efficiency at high frequencies.
Yes, it is RoHS compliant, meeting environmental standards for manufacturing.
The dimensions are 12.5 mm in length, 12.5 mm in depth, and a height of 6 mm.
