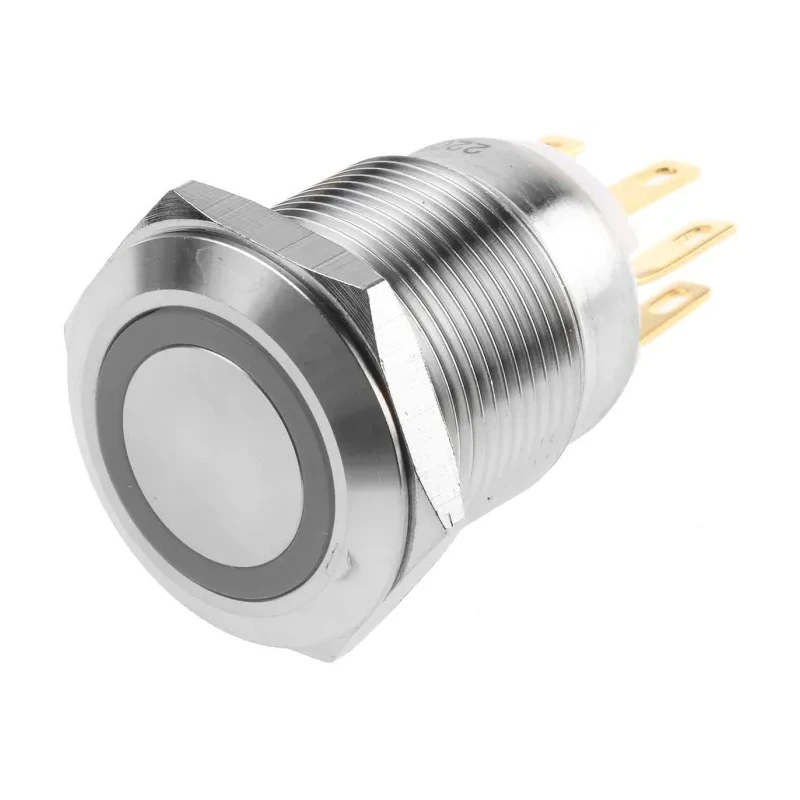

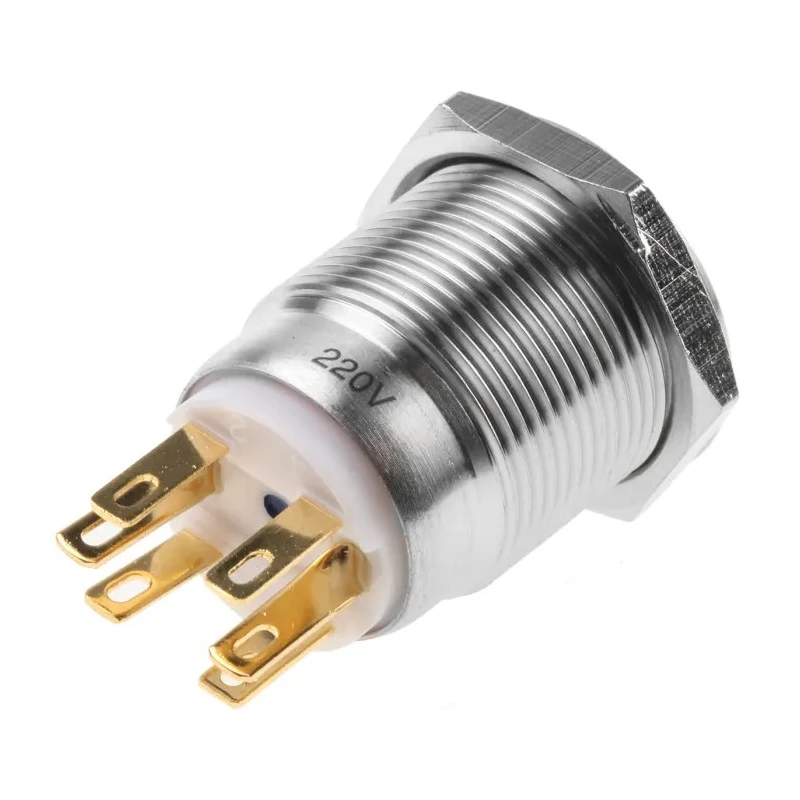

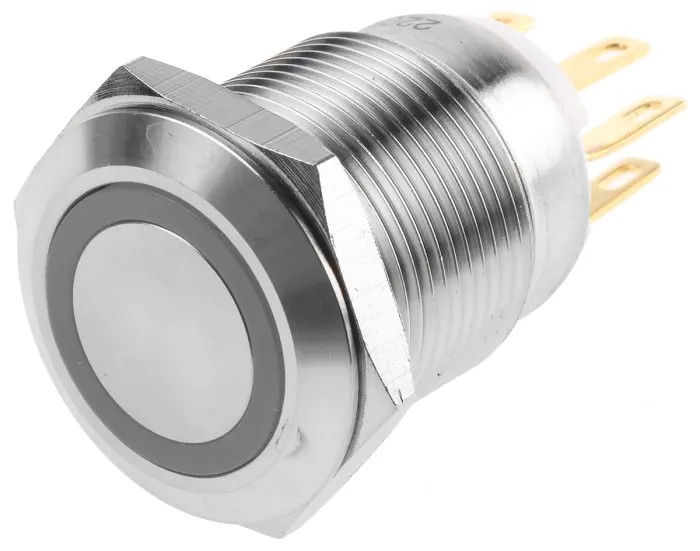

EOZ R Series Illuminated Momentary Panel Push Button Switch SPDT Blue LED IP65 250V AC R19FFSSPAGRB220



Category Push Button Switches & Components Brand EOZ Condition New

Specifications

Country of Origin	France
Brand	EOZ
Model	R19FFSSPAGRB220
IP Rating	IP65
Mount Type	Panel
Series	R
Maximum Operating Temperature	55°C
Contact Configuration	SPDT
Switch Configuration	SPDT
Minimum Operating Temperature	-20°C
Panel Cutout Size	19.2 mm
Terminal type	Solder
Standards/Approvals	RoHS
LED Colour	Blue
Switch Operation	Momentary
Actuator Colour	Silver
Actuator Style	Button
Switch Contact Current	5A
Contact AC Voltage	250V ac

Key Features

The switch is panel mountable with a 19.2 mm cutout diameter.
It features a vandal-resistant design rated IK09 for impact protection equivalent to a 5 kg mass dropped from 200 mm.
The blue LED provides ring or central dot illumination, signaling switch activation clearly.
Suitable for use in access control systems, machinery, public kiosks, vending machines, and exposed industrial environments.
The switch has a contact current rating of 5A AC and complies with RoHS standards.
Operating temperature range is -20°C to 55°C ensuring reliable performance in diverse environments.
The actuator has a silver color and a button style for tactile feedback.
Terminals are of solder type ensuring secure electrical connections.

Product Description

The EOZ R19FFSSPAGRB220 is an R Series illuminated momentary push button switch designed for panel mounting with a 19.2 mm cutout. It operates at 250V AC with a 5A contact current rating and features a single-pole double-throw (SPDT) configuration.

This switch includes a blue LED illumination which can be configured as either a ring or central dot, providing clear visual feedback when activated. Its robust vandal-resistant design is impact-resistant to IK09 standards, making it suitable for demanding industrial, public access control, machinery, and vending machine applications.

Sealed to IP65, the switch is dust-tight and protected against low-pressure jets of water, ensuring durability in harsh environments. The actuator is silver in color and styled as a button with solder terminal types for reliable connectivity.

With an operating temperature range from -20°C to 55°C and compliance with RoHS standards, the switch offers reliable functionality and regulatory conformity. It is manufactured in France and ideal for commercial, industrial, and automation sectors.

The switch is panel mountable with a 19.2 mm cutout diameter. Vandal-resistant to IK09 impact standard. Blue LED illumination for clear operational feedback. SPDT contact configuration with 5A AC contact current rating. IP65 rated for protection against dust and water ingress.

Operates between -20°C to 55°C. Silver button-style actuator with solder terminals. RoHS compliant and manufactured in France. Explore EnvMart's range of push button switches for industrial and commercial automation control solutions.
