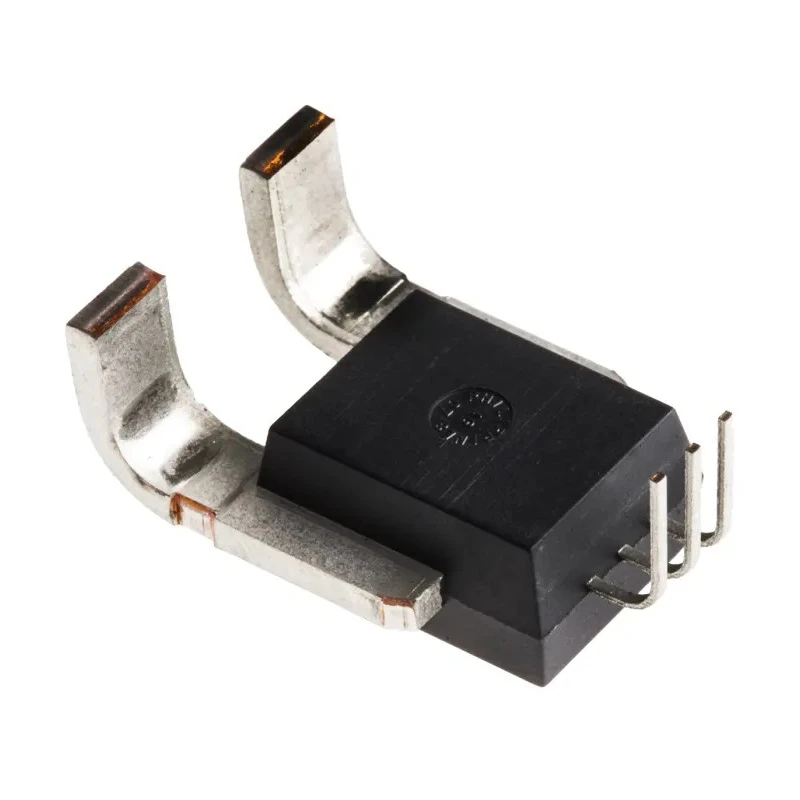

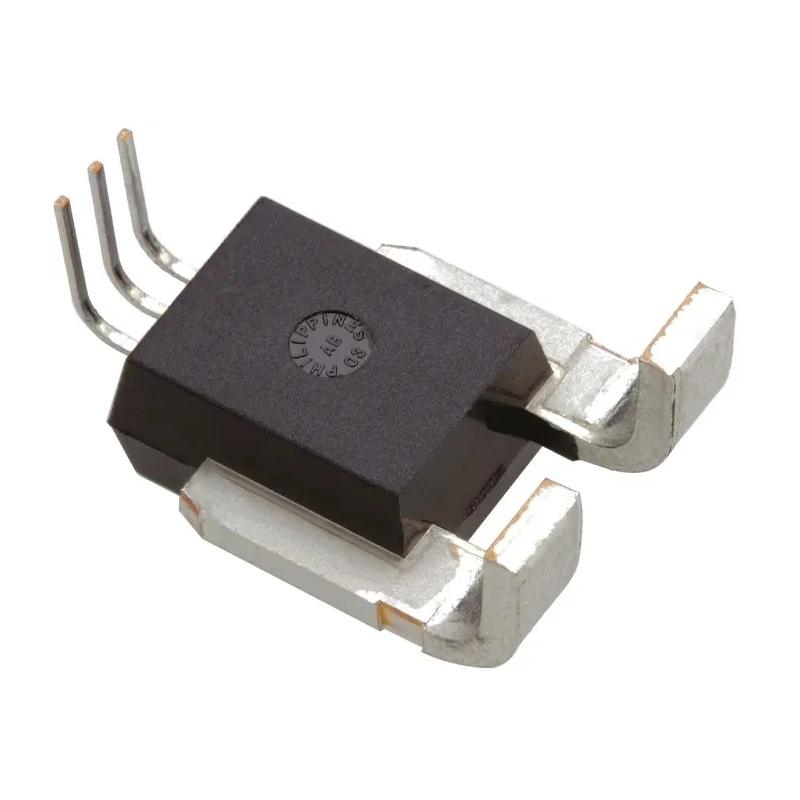

Allegro Microsystems Through Hole Hall Effect Sensor CB Package 3 V 5.5 V 5-Pin ACS758LCB-050U-PFF-T
Specifications
| Country of Origin | India |
|---|---|
| Brand | Allegro Microsystems |
| Response time | 4μs |
| Height | 7mm |
| Length | 10mm |
| Model | ACS758LCB-050U-PFF-T |
| SENSITIVITY | 60mV/A |
| Technology | BiCMOS |
| Sensor Type | Hall Effect Sensors |
| Width | 13mm |
| Mount Type | Through Hole |
| Series | ACS758 |
| Maximum Operating Temperature | 150°C |
| Package Type | CB |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | UL Certified File No.:US-29755-UL |
| Pin Count | 5 |
| Automotive Standard | AEC-Q100 |
| Maximum Supply Voltage | 5.5V |
| Minimum Supply Voltage | 3V |
| Supply Current | 10mA |
| Magnetic Type | Linear |
| Maximum Frequency Response | 120kHz |
| Standards/ApprovalsUL Certified File No. | US-29755-UL |
Key Features
- This sensor operates with a supply voltage range of 3 to 5.5 volts.
- It provides up to 120 kHz maximum frequency response for rapid signal processing.
- Designed for automotive applications, it meets AEC-Q100 standards for high reliability.
- The device maintains accurate performance between -40°C and 150°C operating temperatures.
- With a sensitivity of 60 mV per ampere, it can sense currents from 50A to 200A.
- It features a quick response time of 4 microseconds for dynamic sensing.
- The package dimensions are compact with 7mm height, 10mm length, and 13mm width.
- Supply current is low at 10 mA ensuring efficient power consumption.
Product Description
Allegro Microsystems ACS758LCB-050U-PFF-T through hole Hall effect sensor is a high precision current sensor IC designed for effective current measurement in industrial, automotive, and electronic applications.
Operating within a voltage range of 3 V to 5.5 V and capable of sensing currents from 50A up to 200A, this sensor uses BiCMOS technology to deliver linear magnetic response with exceptional accuracy.
The sensor is housed in a compact CB package with 5 pins suitable for easy through hole mounting on PCBs, measuring 7 mm in height, 10 mm in length, and 13 mm in width.
Its response time of 4 microseconds and maximum frequency response of 120 kHz make it ideal for dynamic current sensing requirements, including automotive systems complying with the AEC-Q100 standard.
The device operates reliably within a wide temperature range of -40°C to 150°C and consumes low supply current of 10 mA, optimizing power efficiency. This sensor operates with a supply voltage range of 3 to 5.5 volts. It provides up to 120 kHz maximum frequency response for rapid signal processing.
Designed for automotive applications, it meets AEC-Q100 standards for high reliability. The device maintains accurate performance between -40°C and 150°C operating temperatures. With a sensitivity of 60 mV per ampere, it can sense currents from 50A to 200A.
It features a quick response time of 4 microseconds for dynamic sensing. The package dimensions are compact with 7mm height, 10mm length, and 13mm width. Supply current is low at 10 mA ensuring efficient power consumption.
5-pin through hole mounting facilitates easy PCB integration. UL certified, ensuring compliance with safety standards. The device is suitable for industrial, automotive, laboratory, and electronic system current sensing tasks where accurate, reliable, and fast current measurement is critical.
Explore the full Allegro Microsystems range of sensor ICs and current sensing solutions on EnvMart for diverse industrial and commercial applications.
Explore more products in our Hall Effect Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor operates with a supply voltage range of 3 V to 5.5 V.
It provides a maximum frequency response of 120 kHz for rapid signal processing.
The sensitivity of this model is 60 mV per ampere, allowing it to sense currents effectively.
This sensor can sense currents from 50A to 200A, making it suitable for a range of applications.
It maintains accurate performance between -40°C and 150°C operating temperatures.
The response time of this model is 4 microseconds, which is suitable for dynamic sensing requirements.
The package dimensions are 7 mm in height, 10 mm in length, and 13 mm in width.
It features a 5-pin through hole mounting design for easy integration onto PCBs.
The device meets AEC-Q100 standards for automotive applications and is UL certified.
The supply current is low at 10 mA, ensuring efficient power consumption.
This sensor uses BiCMOS technology to deliver a linear magnetic response with high accuracy.
It is suitable for industrial, automotive, laboratory, and electronic system current sensing tasks.
