TDK 22 nF 450V DC ±5% Multilayer Ceramic Capacitor, Surface Mount, Tape & Reel CGA6N4C0G2W223J230AA

TDK CGA6N4C0G2W223J230AA is a high-quality Multilayer Ceramic Capacitor designed for robust and precise electronic component applications. It offers a capacitance of 22nF with a voltage rating of 450V DC and a tolerance of ±5%, suitable for demanding electrical environments.

This capacitor uses a C0G dielectric, which ensures excellent temperature stability, low loss, and minimal DC bias, making it ideal for circuits requiring high accuracy and reliability.

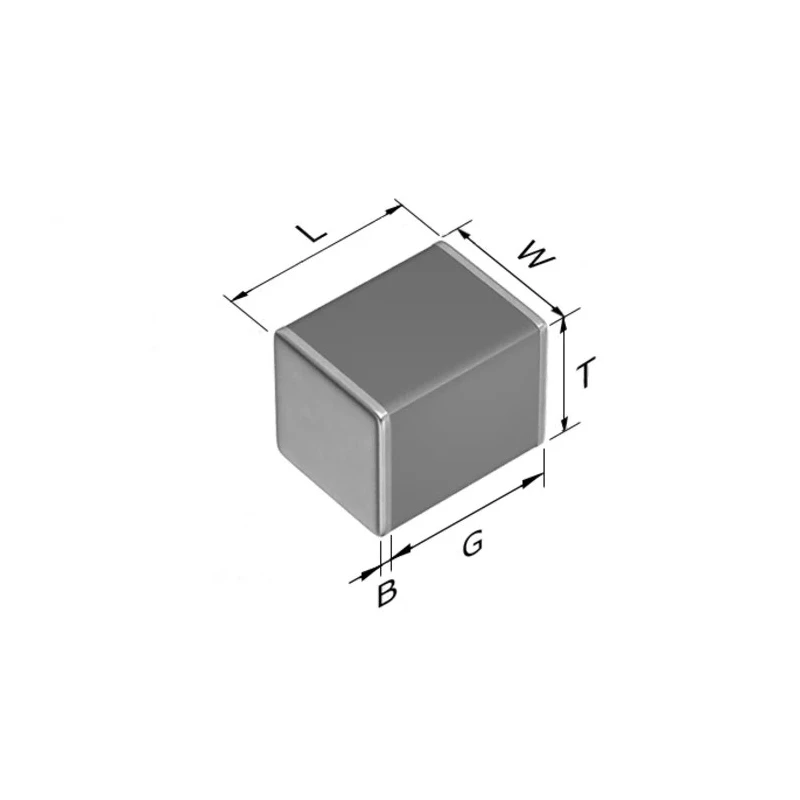

With compact dimensions of 3.2mm length, 2.5mm width, and 2.3mm height in a 1210 package, it supports surface mount technology with tape and reel packaging, facilitating automated PCB assembly processes.

Certified to automotive standard AEC-Q200, it meets stringent quality requirements for automotive and industrial sectors, ensuring reliability even under harsh conditions.

Applications include decoupling, smoothing, and snubber circuits in power inverters and DC-DC converters, particularly useful in electric and hybrid electric vehicles due to its superior DC bias properties and low residual inductance.

The capacitor operates effectively over a temperature range from -55°C to 125°C. It is designed for surface mount with stable electrical characteristics provided by its class I suppression rating. The product originates from Japan, reflecting high manufacturing standards.
