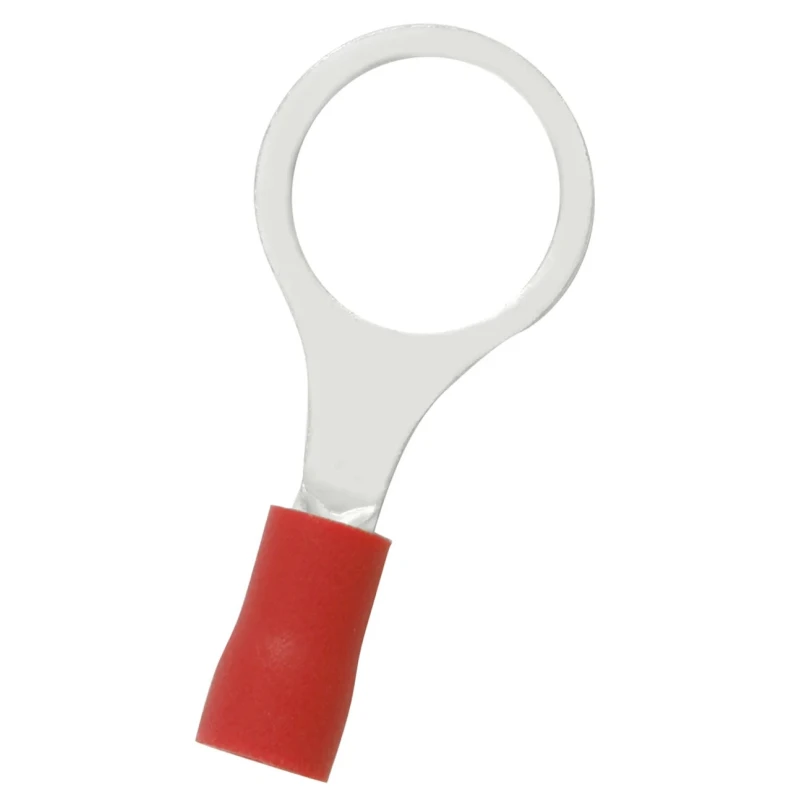

RS PRO Insulated Ring Terminal, Vinyl Insulation, Red, 10.5 mm Stud Size, 22 AWG to 16 AWG Wire Size 178-8657
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.75mm |
| Model | 178-8657 |
| Insulation | Insulated |
| Overall Length | 30.5mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 13.6mm |
| Inner Ring Diameter | 10.5mm |
| Stud Size | 10.5 mm |
| RS PRO Insulated Ring Terminal, M8 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | RS PRO |
| JST, FV Insulated Ring Terminal, M10 Stud Size 22 AWG 16 AWG Wire Size, RedBrand | JST |
Key Features
- Made with copper contact material for excellent conductivity.
- Vinyl insulation provides robust electrical protection in red color.
- Stud size of 10.5 mm supports reliable secure connection.
- Compatible with wire sizes ranging from 22 AWG to 16 AWG.
- Overall length of the terminal is 30.5 mm for easy installation.
- Outer ring diameter measures 13.6 mm and inner ring diameter 10.5 mm.
- Contact plating of tin enhances corrosion resistance and durability.
- Operating temperature range from -40°C to 105°C suits various environments.
Product Description
The RS PRO 178-8657 Insulated Ring Terminal is designed for secure and efficient electrical connections in industrial and electronic applications. It features a vinyl insulation material that provides electrical isolation and protection, while the copper contact material ensures superior conductivity and minimal resistance.
This ring terminal supports wire sizes from 22 AWG to 16 AWG, matching a maximum wire size of 1.5 mm² and minimum of 0.5 mm², making it versatile for various wiring needs in manufacturing, construction, and maintenance sectors.
With a stud size of 10.5 mm, it offers a robust mechanical connection, enhanced by a tin plating that improves corrosion resistance and longevity under harsh conditions. The terminal dimensions, including an outer ring diameter of 13.6 mm and overall length of 30.5 mm, facilitate easy and reliable installation in power distribution and control panels.
Its operating temperature range from -40°C to 105°C makes it suitable for use in diverse environmental conditions, including industrial, HVAC, and automotive electrical systems. The red color coding allows quick visual identification of wire gauge and terminal specification compliance.
Made with copper contact material for excellent conductivity. Vinyl insulation provides robust electrical protection in red color. Stud size of 10.5 mm supports reliable secure connection. Compatible with wire sizes ranging from 22 AWG to 16 AWG.
Overall length of the terminal is 30.5 mm for easy installation. Outer ring diameter measures 13.6 mm and inner ring diameter 10.5 mm. Contact plating of tin enhances corrosion resistance and durability. Operating temperature range from -40°C to 105°C suits various environments.
This insulated Ring Terminal is ideal for industrial, electronics manufacturing, maintenance, and repair applications requiring dependable wire termination and connection integrity. Explore our Wire Terminals & Splices category and RS PRO brand selection for other compatible electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes ranging from 22 AWG to 16 AWG, corresponding to a minimum wire size of 0.5 mm² and a maximum wire size of 1.5 mm².
The stud size of this insulated ring terminal is 10.5 mm, providing a secure mechanical connection.
The overall length of the terminal is 30.5 mm, with an outer ring diameter of 13.6 mm and an inner ring diameter of 10.5 mm.
The contact material of this terminal is copper, which ensures excellent conductivity.
It features vinyl insulation, which provides robust electrical protection.
The operating temperature range is from -40°C to 105°C, making it suitable for various environments.
The contact plating is tin, which enhances corrosion resistance and durability.
This terminal is manufactured in Taiwan.
It is suitable for industrial, electronics manufacturing, maintenance, and repair applications requiring reliable wire termination.
The thickness of this insulated ring terminal is 0.75 mm.
The red color coding allows for quick visual identification of wire gauge and terminal specification compliance.
This model belongs to the RS PRO series of insulated ring terminals.
