| Country of Origin | Taiwan |
|---|---|
| Brand | RS PRO |
| Colour | Red |
| THICKNESS | 0.8mm |
| Model | 178-7277 |
| Insulation | Insulated |
| Overall Length | 22.5mm |
| Contact Material | Copper |
| Series | RS PRO |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Vinyl |
| Minimum Operating Temperature | -40°C |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.5mm² |
| Maximum Wire Size mm² | 1.5mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Outer Ring Diameter | 8mm |
| Inner Ring Diameter | 5.3mm |
| Stud Size | 5.3 mm |

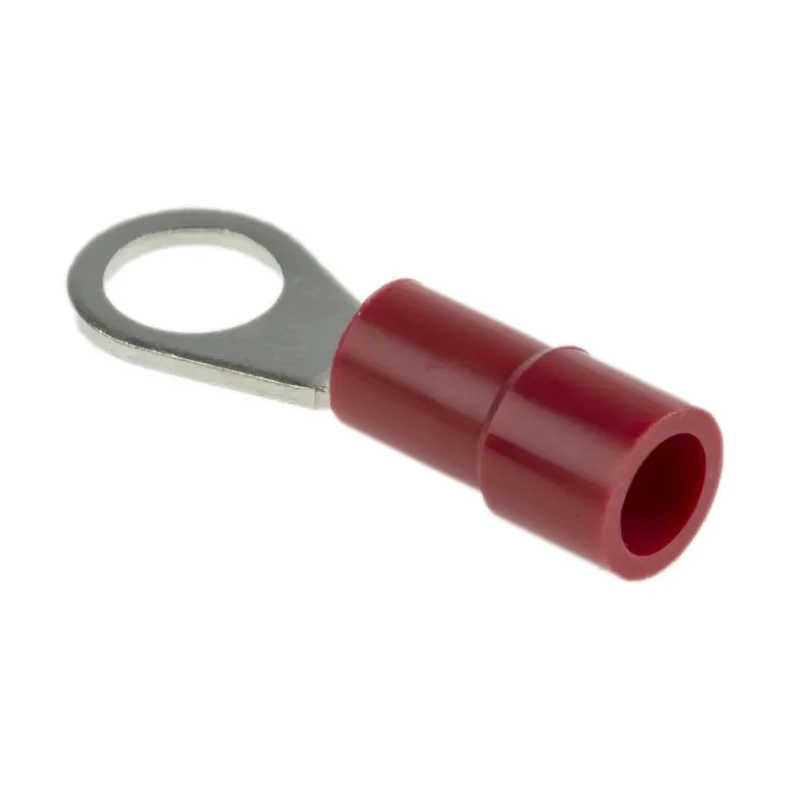

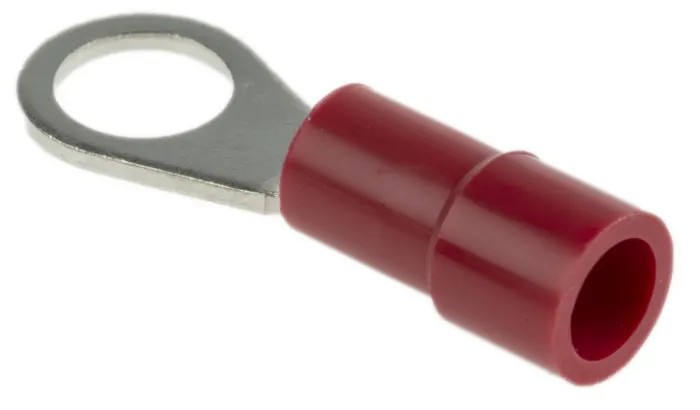

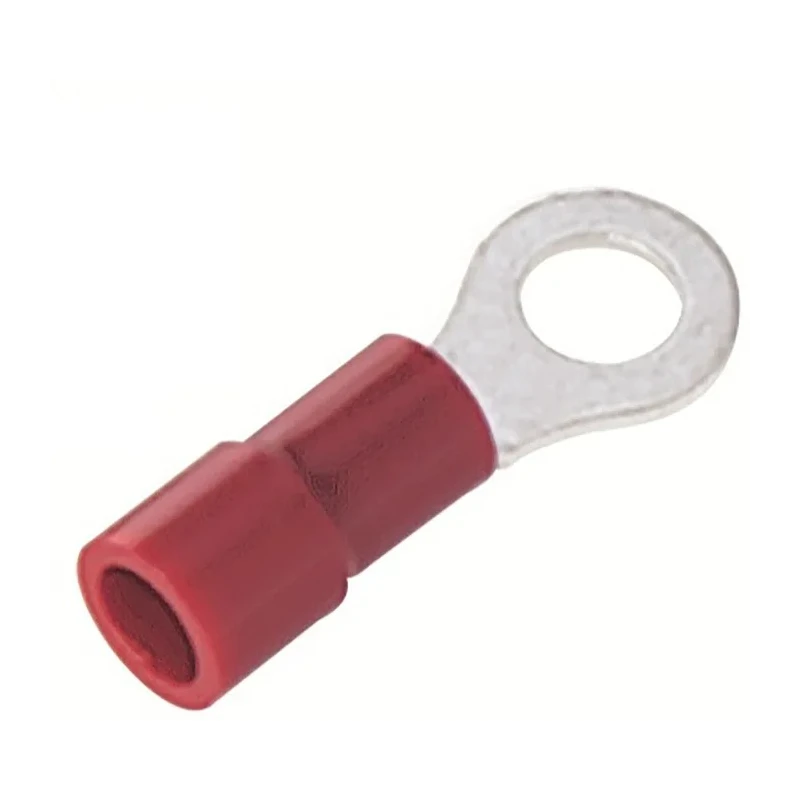

RS PRO 178-7277 Insulated Ring Terminal is designed for secure and reliable electrical connections, featuring a 5.3 mm stud size and suitable for wire sizes from 22 AWG to 16 AWG. The red vinyl insulation provides electrical protection and easy visual identification in wiring systems.
Constructed with copper contact material, the terminal offers excellent electrical conductivity, while the tin plating enhances corrosion resistance, ensuring longevity in diverse applications.
The ring terminal has an overall length of 22.5 mm, with an outer ring diameter of 8 mm and a thickness of 0.8 mm, making it compact yet durable for various installation requirements.
It operates effectively within a temperature range of -40°C up to 105°C, suitable for a wide range of industrial, electronic, and electrical applications. This product is ideal for use in electronics assembly, power and connector systems, wire terminal and splice tasks, and general industrial wiring setups.
High-quality copper contact material ensures excellent conductivity. Red vinyl insulation provides electrical isolation and color coding. Precisely sized 5.3 mm stud and 8 mm outer ring diameter fits standard bolts. Compatible with wire sizes 22 AWG to 16 AWG (0.5 mm² to 1.5 mm²).
Tin plating protects against corrosion for durable performance. Operates safely between -40°C and 105°C temperature range. Compact design with 22.5 mm overall length and 0.8 mm thickness. Manufactured in Taiwan, Province Of China for quality assurance.
This insulated Ring Terminal is a trusted choice for automotive, industrial, laboratory, and commercial electrical connections, ensuring strong and safe wire fastening. Explore the broad range of RS PRO electrical components on EnvMart for all your project needs.
