Releco PCB Power Relay with 230V AC Coil, 10A Switching Current, SPDT Contact Configuration C10-A10X / AC 230 V

Releco C10-A10X / AC 230 V is a high-performance PCB power relay featuring a 230V AC coil and a 10A switching current with SPDT contact configuration. It is ideally suited for industrial and commercial electrical and automation applications requiring reliable switching on printed circuit boards (PCB).

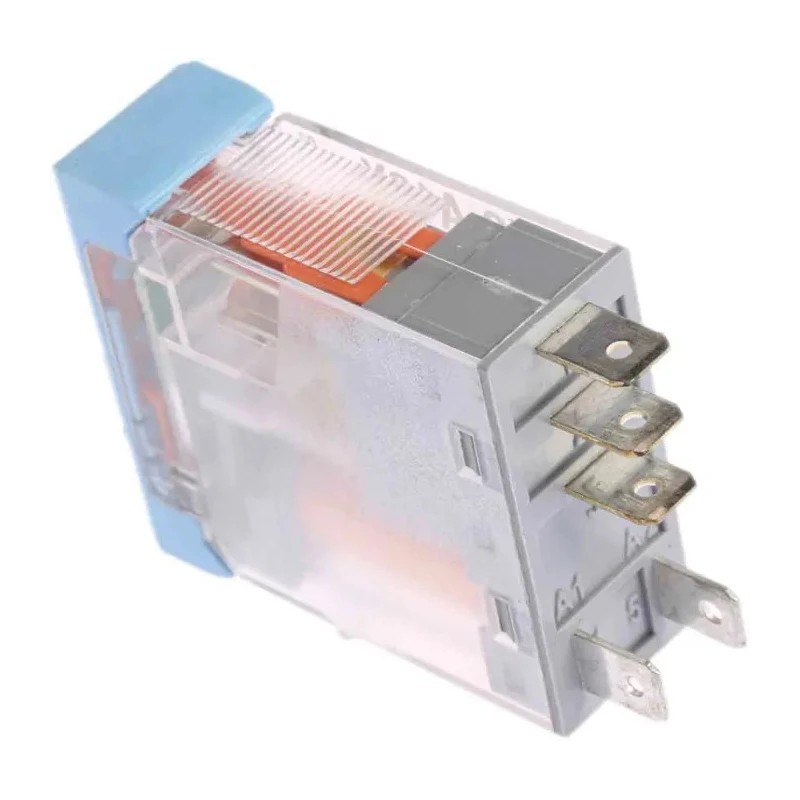

This relay from the Releco C10 series is non-latching, plug-in mount type, providing robust and efficient operation. It's engineered with a silver alloy contact material to ensure excellent conductivity and long service life. The fast-connect terminal design facilitates quick and secure installations on PCB assemblies.

With dimensions of 35.4mm height, 28.8mm length, and 12.5mm width, the relay is compact and space-saving, allowing convenient integration into control panels and electronic devices. The coil resistance is 28.8kΩ with a coil power rating of 1.1W, optimizing power consumption for embedded control circuits.

The operating temperature range spans from -40°C to 60°C, ensuring dependable function under various environmental conditions. The product meets rigorous international standards including IEC, EN, CSA, UL, and RoHS compliance, underscoring its quality and safety credentials in electrical equipment.

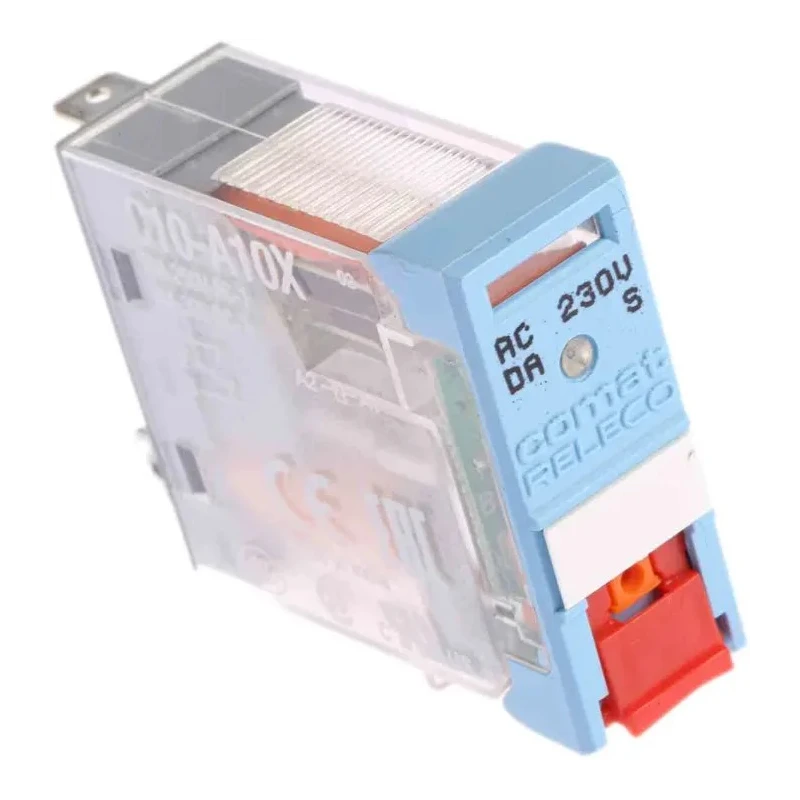

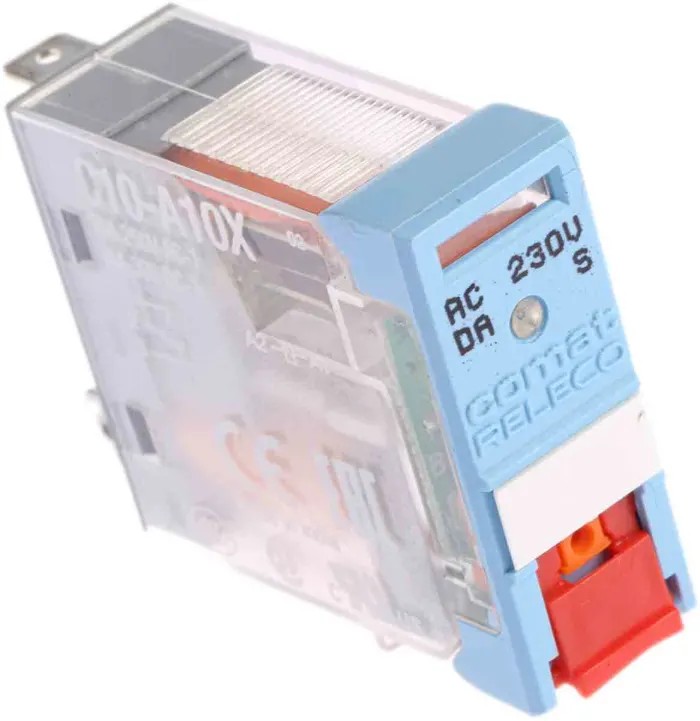

Additional operational features include a color-coded test button with push-to-test and lift-to-latch functions, an LED indicator for coil energization status, and a mechanical flag indicator for contact position monitoring. These features simplify maintenance and troubleshooting in demanding industrial settings.

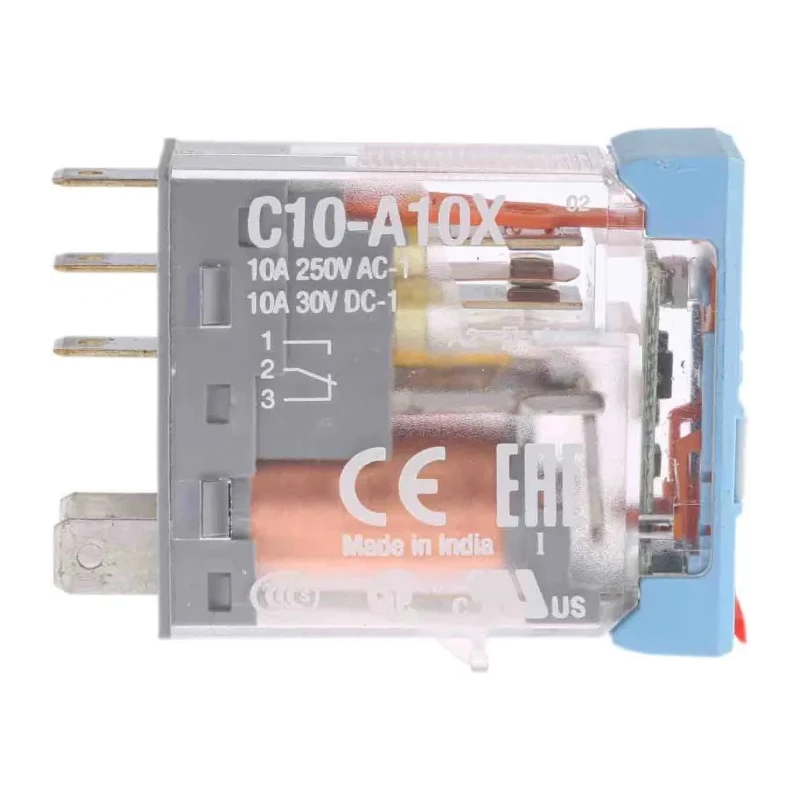

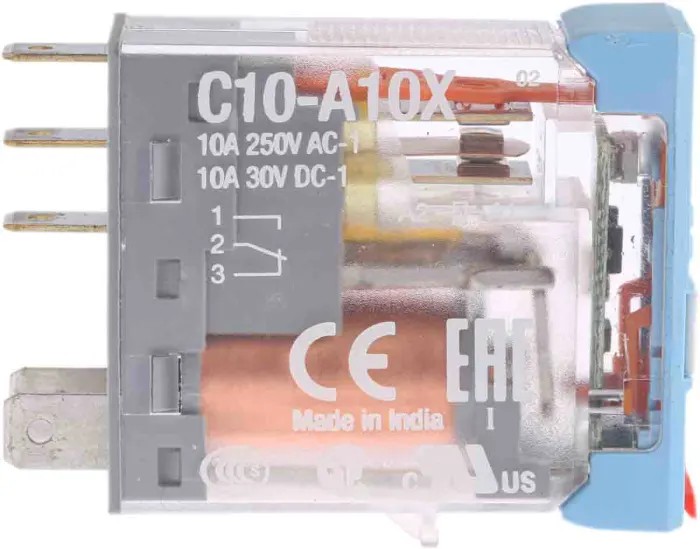

This PCB Power Relay supports switching AC voltages up to 250V and DC voltages up to 30V, making it suitable for a broad range of electrical control and signaling applications such as automation systems, industrial machinery controls, HVAC systems, and manufacturing equipment.

Designed for PCB mounting with quick connect terminal type. Single pole double throw (SPDT) contact configuration. Coil power consumption of 1.1 watts ensuring energy efficiency. Operating temperature range from -40°C to 60°C.

Silver alloy contact material enhances conductivity and durability. Compact dimensions: 35.4mm height, 28.8mm length, and 12.5mm width. Switching AC voltage rated up to 250V AC and DC voltage up to 30V DC. Incorporates test button, LED indicator, and mechanical flag for operation status.

Complies with IEC, EN, CSA, UL, and RoHS standards and approvals. Explore a wide selection of industrial relays and power switching components in the Electronics & Electricals category at EnvMart for your automation and control needs.
