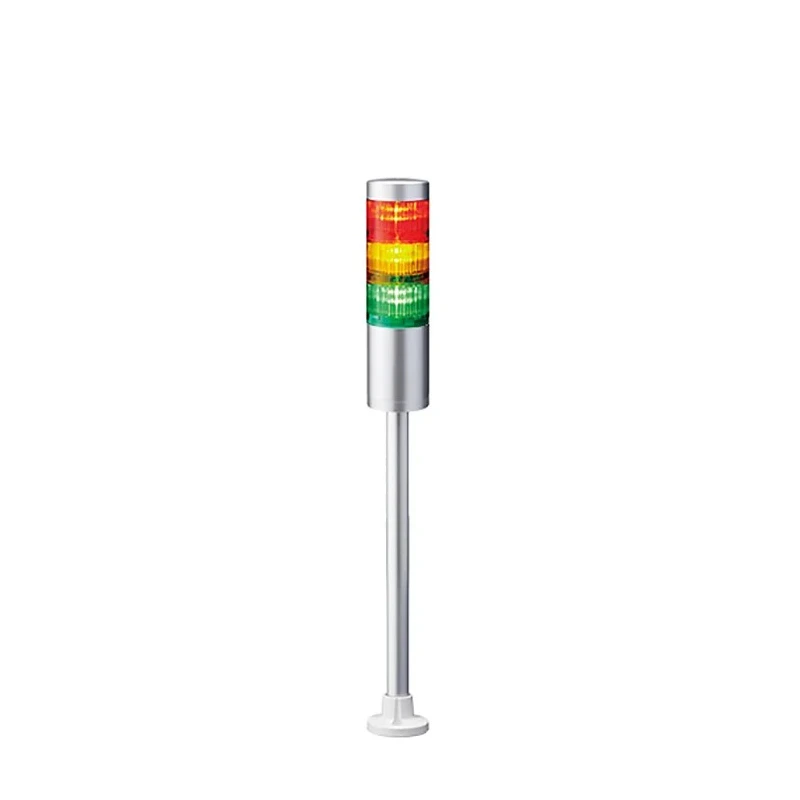

Patlite LR6 Series Signal Tower Buzzer, 3 Lights 24V DC Pole Mount LR6-302PJNU-RYG
Specifications
| Country of Origin | Indonesia |
|---|---|
| Brand | Patlite |
| Height | 509mm |
| Model | LR6-302PJNU-RYG |
| IP Rating | IP65 |
| Mount Type | Pole Mount |
| Bulb Type | LED |
| Series | LR6 |
| Maximum Operating Temperature | 50°C |
| Current Type | DC |
| Current consumption | 250mA |
| Minimum Operating Temperature | -20°C |
| Base Diameter | 60mm |
| Terminal type | Terminal Block |
| Standards/Approvals | RoHS Directive (EN 50581), UL 508, UL Recognised Component (File No.E215660), CSA-C22.2 No. 14, EMC Directive (EN 61000-6-4,EN 61000-6-2), FCC Part 15 Subpart B Class A, KC (KN 61000-6-4,KN 61000-6-2) |
| Maximum Supply Voltage | 24V dc |
| Housing Colour | Silver |
| Light Effect | Steady |
| Minimum Sound Level | 85dB |
| Sounder Type | Buzzer |
| Maximum Sound Level | 90dB |
| Number of Light Elements | 3 |
| Connection Cable Length | 1m |
Key Features
- Modular twist and lock system allows easy customization and reconfiguration of LED and sound modules.
- Steady red, amber and green LED lights provide clear signaling.
- Re-engineered sound module delivers loud omni-directional buzzer sound with water and dust protection.
- Constructed for performance in harsh environments with IP65 rated silver housing.
- Operating temperature range from -20°C to 50°C ensures reliability in diverse conditions.
- Compact dimensions with 509mm height and 60mm base diameter for convenient installation.
- Complies with international standards including RoHS, UL 508, CSA, EMC Directive, FCC, and KC certifications.
- Connection via terminal block with a 1 meter cable length for flexible wiring.
Product Description
Patlite LR6-302PJNU-RYG Signal Tower Buzzer is an industrial-grade 3-light signal tower designed for effective automation signaling. Equipped with red, amber, and green steady LEDs and a buzzer sound module, it operates on 24V DC supply voltage, facilitating clear and reliable status indications.
This model features a modular twist and lock system that enables easy assembly and customization of light and sound modules, enhancing operational flexibility. The tower has a sleek silver body with IP65 rating, protecting it against dust and water ingress for use in harsh industrial environments.
The sound module is completely enclosed to produce a loud, omni-directional buzzer sound, ensuring alerts are audible from all directions. The unit supports operation temperatures from -20°C up to 50°C, making it suitable for a wide range of industrial settings.
The device is pole mounted with a circular bracket and offers a compact footprint with a base diameter of 60mm and a total height of 509mm. Connection is facilitated via terminal blocks with a 1 meter cable length to enable versatile installation arrangements.
The signal tower conforms to multiple global standards and certifications including RoHS Directive (EN 50581), UL 508, CSA-C22.2 No.14, EMC Directive (EN 61000-6-4, EN 61000-6-2), FCC Part 15 Class A, and KC standards, ensuring compliance and reliability.
Modular twist and lock system for easy assembly and customization. 3 steady LED colors: red, amber, and green for distinct visual signaling. Enclosed sound module delivering loud omni-directional buzzer alerts. IP65 rated silver housing for protection in harsh environments.
Operating temperature range from -20°C to 50°C for versatile use. Compact pole mount design with a 60mm base diameter and 509mm height. Terminal block connection with 1 meter cable length for flexible wiring. Compliant with stringent international certifications for quality assurance.
Low current consumption of 250mA for energy-efficient operation. Ideal for industrial automation, manufacturing, and control applications.
This Patlite LR6 series signal tower buzzer is essential for industrial and automation signaling, providing reliable visual and audible alerts to enhance operational safety and efficiency. It can be effectively deployed in manufacturing plants, laboratories, and commercial installations requiring clear status indication. Explore more Signal Towers and automation products on EnvMart for your industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The operating temperature range is from -20°C to 50°C, making it suitable for various industrial environments.
This model has a height of 509mm and a base diameter of 60mm, allowing for convenient pole mounting.
It uses a terminal block connection with a cable length of 1 meter for flexible wiring options.
The maximum supply voltage for this signal tower is 24V DC.
The sound module produces a minimum sound level of 85dB and a maximum sound level of 90dB, ensuring audible alerts.
It complies with several certifications including RoHS, UL 508, CSA-C22.2 No. 14, and FCC Part 15, among others.
The housing has an IP65 rating, providing protection against dust and water ingress.
It features steady light effects with red, amber, and green LED lights for clear signaling.
Yes, the sound module is completely enclosed and produces a loud, omni-directional buzzer sound.
The housing is constructed from silver material, designed for performance in harsh environments.
The modular twist and lock system allows for easy assembly and customization of the light and sound modules, enhancing operational flexibility.
The current consumption of this model is 250mA, making it energy-efficient for operation.
