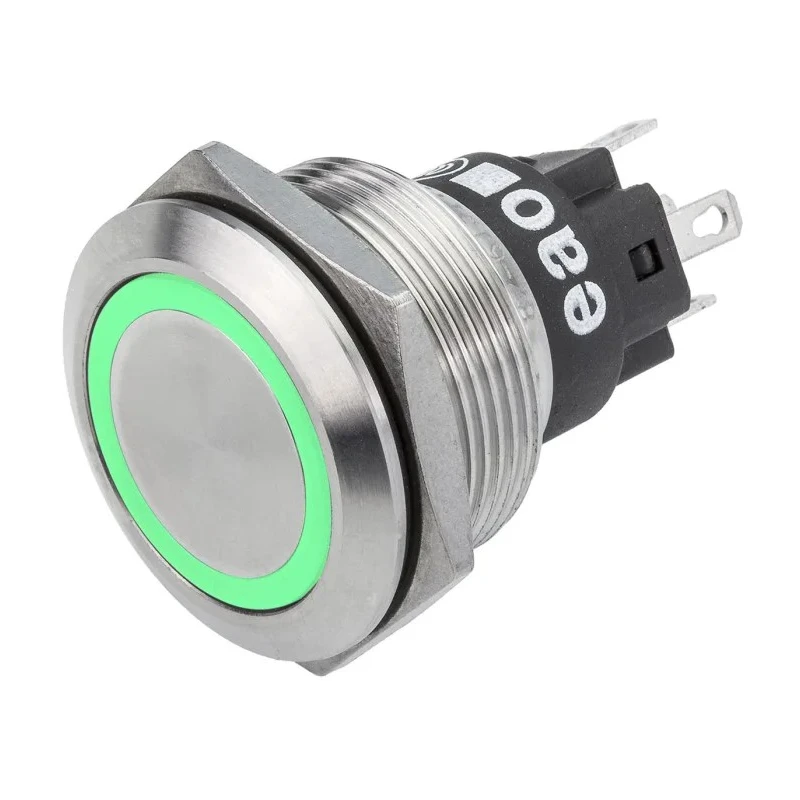

EAO Illuminated Momentary Push Button Switch Panel Mount 22.3 mm Cutout SPDT Green LED IP65 IP67 240V DC 82-6151.1134



Category Push Button Switch Brand EAO Condition New

Specifications

Country of Origin	Switzerland
Brand	EAO
Length	34.5mm
IP Rating	IP65, IP67
Mount Type	Panel
Series	82
Maximum Operating Temperature	70°C
Contact Configuration	SPDT
Switch Configuration	CO
Minimum Operating Temperature	-30°C
Panel Cutout Size	22.3 mm
Standards/Approvals	CB, CCC, cUL, UL
LED Colour	Green
Switch Operation	Momentary
Actuator Colour	Silver
Contact DC Voltage	240V dc
Actuator Style	Round
Switch Contact Current	3A
Contact AC Voltage	240V ac
Vandal resistant	IK10 impact resistance & frontal protection up to IP67

Key Features

The switch features a green LED illumination for clear status indication.
Momentary operation enables precise control by activating only when pressed.
Designed for panel mounting with a compact 22.3 mm cutout diameter.
Robust stainless steel body offers resistance to impact and corrosion.
IP65 and IP67 ratings ensure protection against dust and water ingress for harsh environments.
Suitable for operating temperatures ranging from -30°C to +70°C.
Switch contact current supports up to 3 A for reliable switching performance.
Vandal resistant design meets IK10 protection standards for demanding applications.

Product Description

The EAO 82-6151.1134 Illuminated Momentary Push Button Switch is a high-performance panel mount switch ideally suited for industrial, medical, and automation applications. Featuring a compact 22.3 mm cutout, this round actuator switch provides reliable momentary operation with a Single Pole Double Throw (SPDT) contact configuration. The switch is illuminated by an energy-efficient green LED ring, allowing clear and immediate visual feedback during operation.

Constructed with a robust stainless steel body, the switch offers excellent resistance to impact, corrosion, and vandalism, meeting IK10 impact resistance standards. Its IP65 and IP67 ratings guarantee dust-tight protection and submersion resilience, making it suitable for both indoor and harsh outdoor or industrial environments.

Designed to operate within a temperature range of -30°C to +70°C, it maintains functionality in extreme conditions. The switch supports AC and DC contact voltages up to 240V and a contact current of 3 A, adapting to a wide variety of control circuits.

With a mechanical lifespan surpassing one million operations, it ensures dependable, long-lasting service with reduced maintenance needs. This switch is commonly employed in building management systems, medical devices, factory automation, audio and video equipment, and other industrial control setups.

The switch features a green LED illumination for clear status indication. Momentary operation enables precise control by activating only when pressed. Designed for panel mounting with a compact 22.3 mm cutout diameter. Robust stainless steel body offers resistance to impact and corrosion.

IP65 and IP67 ratings ensure protection against dust and water ingress for harsh environments. Suitable for operating temperatures ranging from -30°C to +70°C. Switch contact current supports up to 3 A for reliable switching performance.

Vandal resistant design meets IK10 protection standards for demanding applications. Long mechanical lifespan exceeding one million operations guarantees durability. Applicable across building management, medical devices, industrial automation, and audio/video equipment.

The EAO 82 series push button switches deliver precision, reliability, and ruggedness required for critical industrial and commercial installations. Explore more EAO Push Button Switches and panel accessories on EnvMart for comprehensive control solutions.
