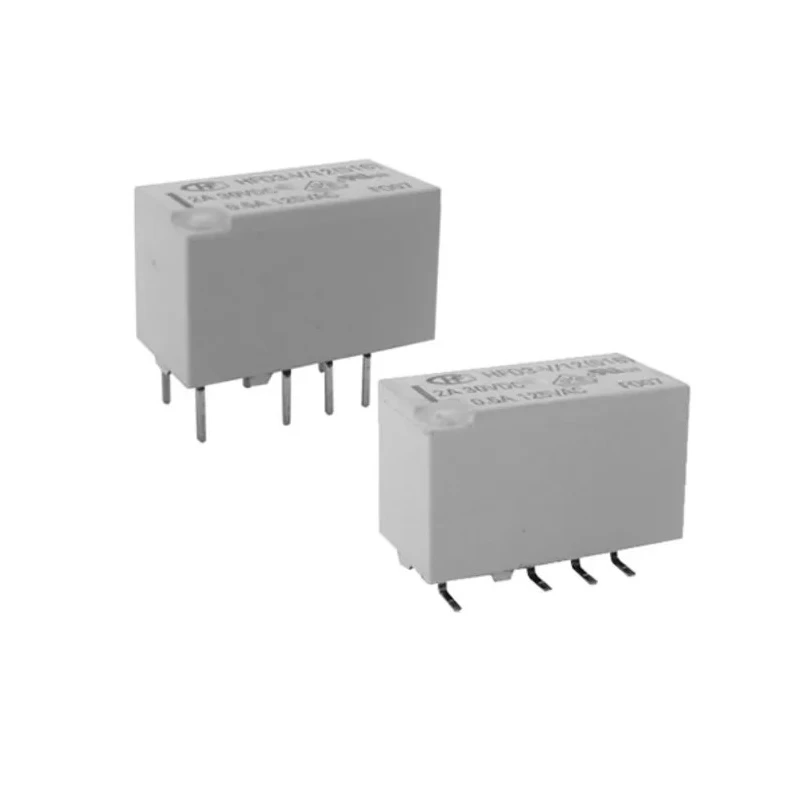

Hongfa Europe GMBH PCB Signal Relay, 5V DC Coil, 2A Current, DPDT Contact Configuration HFD3-V/5
Specifications
| Country of Origin | China |
|---|---|
| Brand | Hongfa Europe GMBH |
| Height | 9.2mm |
| Length | 15mm |
| Model | HFD3-V/5 |
| Width | 7.5mm |
| Mount Type | PCB |
| Contact Material | Gold Plated |
| Series | HFD3-V |
| Maximum Operating Temperature | 85°C |
| Contact Configuration | DPDT |
| Minimum Operating Temperature | -40°C |
| Switching Current | 2A |
| Terminal type | PCB Terminal |
| Contact Resistance | 100mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 125Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 220V dc |
| Switching AC Voltage | 277V ac |
| Coil Power | 140mW |
Key Features
- This relay supports switching voltages up to 277V AC and 220V DC.
- It operates within a temperature range of -40°C to 85°C.
- The relay is designed for PCB mounting with gold-plated contacts for reliable performance.
- It offers low coil power consumption of 140mW and coil resistance of 125Ω.
- With a compact size of 15mm length, 7.5mm width, and 9.2mm height, it is suitable for small form factor applications.
- The relay withstands surge voltages up to 6000VAC providing robust isolation.
- It is RoHS compliant, ensuring environmental safety and compliance.
- Gold plated contacts ensure high conductivity and long service life.
Product Description
Hongfa Europe GMBH HFD3-V/5 is a high-quality PCB signal relay featuring a 5V DC coil and dual pole double throw (DPDT) contact configuration. It is engineered for precise control in electronic circuits requiring reliable signal switching capabilities at up to 2A current. This relay is widely used in industrial and automotive control systems, automation equipment, and signal conditioning applications.
The relay supports switching voltages of up to 277V AC and 220V DC, with maximum switching power rated at 62.5VA. Designed for PCB mounting, it has a compact form factor with dimensions of 15mm length, 7.5mm width, and 9.2mm height, making it suitable for space-constrained designs.
Operating temperature range extends from -40°C to 85°C, ensuring performance stability under harsh environmental conditions. Its coil power consumption is low at 140mW, with a coil resistance of 125Ω for energy-efficient actuation. The relay contacts are gold plated to provide excellent electrical conductivity and resist corrosion over extended use.
Additional features include a high isolation voltage of 6kVAC between coil and contacts and surge withstand voltage of 6000VAC, which safeguard the relay against voltage spikes and electrical noise. The component is RoHS compliant, highlighting its ecological and health safety standards adherence.
This signal relay is ideal for applications in industrial automation, automotive electronics, telecommunications, and control panels where reliable signal switching and durability are critical.
This relay supports switching voltages up to 277V AC and 220V DC. It operates within a temperature range of -40°C to 85°C. The relay is designed for PCB mounting with gold-plated contacts for reliable performance. It offers low coil power consumption of 140mW and coil resistance of 125Ω.
With a compact size of 15mm length, 7.5mm width, and 9.2mm height, it is suitable for small form factor applications. The relay withstands surge voltages up to 6000VAC providing robust isolation. It is RoHS compliant, ensuring environmental safety and compliance.
Gold plated contacts ensure high conductivity and long service life.
EnvMart customers seeking reliable, efficient PCB Signal Relays for automation and control systems will find the Hongfa Europe GMBH HFD3-V/5 a perfect fit in their electronic designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay supports switching voltages up to 277V AC and 220V DC.
This model operates with a coil voltage of 5V DC.
It has a maximum switching current rating of 2A.
The relay has a compact size of 15mm in length, 7.5mm in width, and 9.2mm in height.
It operates within a temperature range of -40°C to 85°C.
This unit features a dual pole double throw (DPDT) contact configuration.
The relay has a low coil power consumption of 140mW.
The contacts are made of gold-plated material, ensuring high conductivity.
Yes, it is RoHS compliant, ensuring adherence to environmental safety standards.
The relay can withstand surge voltages up to 6000VAC, providing robust isolation.
This model is designed for PCB mounting.
The coil resistance is 125Ω.
