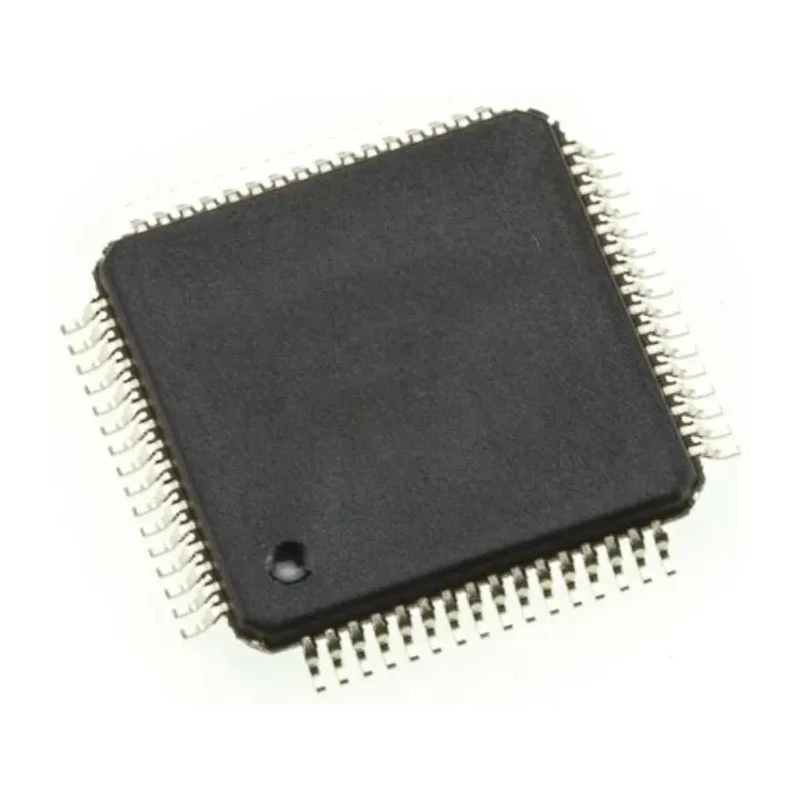

Infineon 32 bit ARM Cortex M0 CY8C4100 Microcontroller 48 MHz 128kB FLASH 64-Pin TQFP CY8C4147AZI-S445

Free Delivery in India | Lowest Global Shipping Charges

Infineon 32 bit ARM Cortex M0 CY8C4100 Microcontroller 48 MHz 128kB FLASH 64-Pin TQFP CY8C4147AZI-S445

Name: Infineon 32 bit ARM Cortex M0 CY8C4100 Microcontroller 48 MHz 128kB FLASH 64-Pin TQFP CY8C4147AZI-S445
Brand: Infineon
SKU: 153195
Price: 5.62 USD
Availability: InStock



Category Microcontroller Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.4mm
Length	10mm
Model	CY8C4147AZI-S445
Width	10mm
Mount Type	Surface
Series	CY8C4100
Maximum Operating Temperature	85°C
Package Type	TQFP
Minimum Operating Temperature	-40°C
Ram size	16kB
Standards/Approvals	RoHS
Pin Count	64
Maximum Supply Voltage	5.5V
Minimum Supply Voltage	1.71V
Device Core	ARM Cortex M0
Program Memory Size	128kB
Maximum Clock Frequency	48MHz
Number of Programmable I/Os	54
Analogue Comparators	2
Number of Timers	1
Instruction Set Architecture	Thumb-2
ADCs	2 x 10/12 Bit
Program Memory Type	FLASH
Active mode	1.7 mA at 3-MHz flash program execution
Deep Sleep mode	1.5 μA with watch crystal oscillator

Key Features

Part of the CY8C4100 series with a 64-pin TQFP package.
32-bit ARM Cortex M0 core with 16kB RAM for efficient processing.
Operates with maximum supply voltage of 5.5 V and minimum supply voltage of 1.71 V.
Equipped with 54 programmable I/Os, 2 analogue comparators, and 2 ADCs with 10/12 bit resolution.
Program memory is of type FLASH, supporting operating frequencies up to 48 MHz.
Operating temperature range from -40°C to 85°C for extended environmental tolerance.
Surface mount device with dimensions 10mm x 10mm x 1.4mm (LxWxH).
Low power consumption with active mode current of 1.7 mA at 3-MHz flash execution.

Product Description

Infineon CY8C4147AZI-S445 is a high-performance 32 bit ARM Cortex M0 microcontroller from the CY8C4100 series, designed for embedded system applications requiring flexible programmable features.

This device operates at a maximum clock frequency of 48 MHz and features 128kB of FLASH program memory alongside 16kB of RAM, housed in a 64-pin Thin Quad Flat Package (TQFP) with compact 10 x 10 x 1.4 mm dimensions, suitable for surface mounting.

Designed to meet a wide range of industrial and commercial applications, including automation, consumer electronics, and control systems, it includes 54 programmable input/outputs, 2 analogue comparators, and dual ADC channels with 10/12 bit precision for analog signal processing.

The microcontroller supports Thumb-2 instruction set architecture and operates efficiently within a supply voltage range of 1.71 V to 5.5 V, with extended operating temperature tolerance from -40°C to +85°C, making it suitable for harsh environments.

Part of the scalable PSoC® 4 platform combining programmable analog and digital blocks. Integrated power management allowing active mode current consumption of 1.7 mA and deep sleep mode current of 1.5 μA for low power designs.

Features four opamps with reconfigurable high-drive external and internal drive modes. Includes universal digital blocks (UDBs) offering flexible programmable logic for customized system behavior. Supports extensive peripherals supported by Cypress-provided peripheral component library and user-defined hardware state machines.

This microcontroller is RoHS compliant, ensuring environmental safety standards. Its combination of flexibility, low power consumption, and compact package size makes it ideal for embedded applications in industrial, laboratory, manufacturing, and consumer electronic markets.
