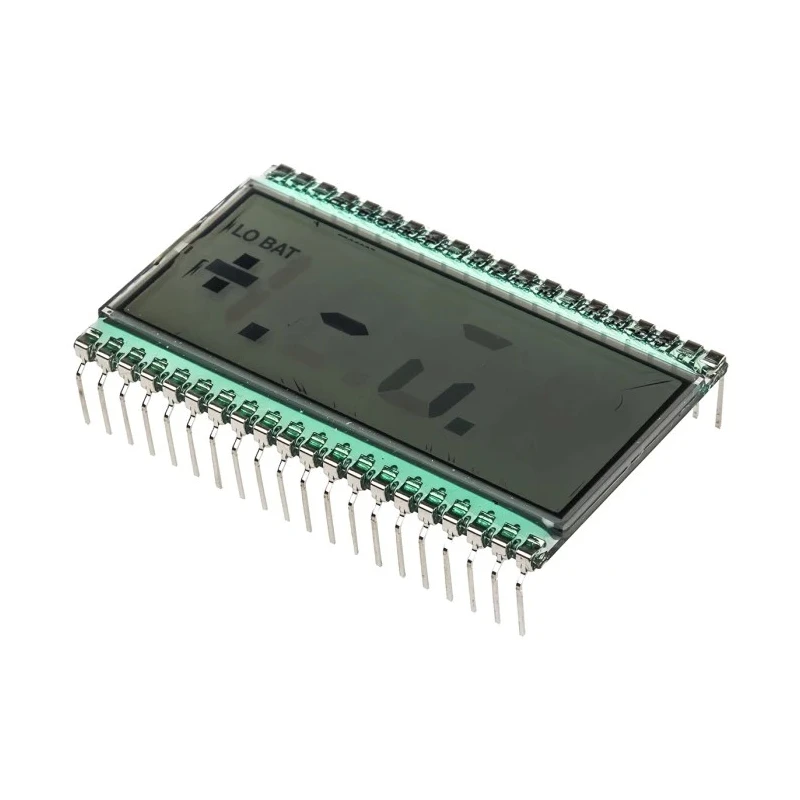

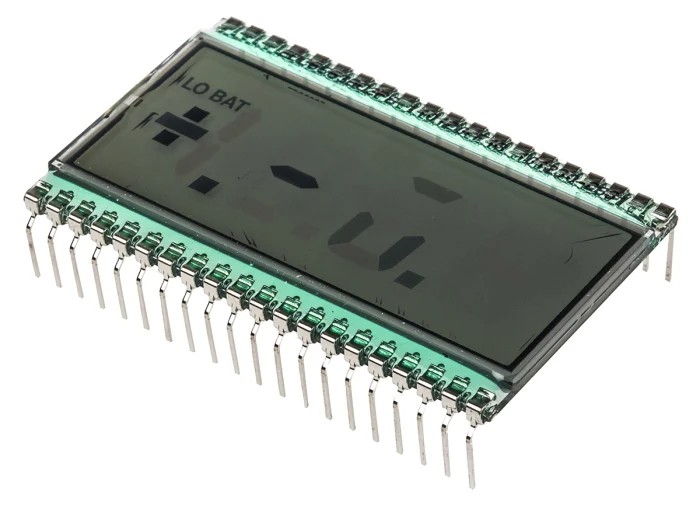

RS PRO 7 Segment LED LCD Monochrome Display, Black on Grey, 1 x 6, Viewing Area 64x17 mm, LED Backlight, PHRC Series 184-7737
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | RS PRO |
| Model | 184-7737 |
| Series | PHR |
| Character height | 12.7mm |
| Maximum Operating Temperature | 80°C |
| Minimum Operating Temperature | -30°C |
| External Width | 50.8mm |
| External Depth | 2.9mm |
| External Height | 30.5mm |
| Character Width | 7mm |
| Illumination Colour | Black |
| Viewing Area Dimensions | 64 x 17 mm |
| Backlight Type | LED |
| Character Matrix | 1 x 6 |
| Reflective 6-digit LCD, VI-602-DP-RCBrand | Varitronix |
| RS PRO PHT 7 Segment LED LCD Monochrome Display, Black on Grey, 1 x 6Brand | RS PRO |
Key Features
- The display features a standard 7-segment format with inter-digit decimal points and alternate colons.
- Characters measure 7 mm in width by 12.7 mm in height offering clear readability.
- Viewing area dimensions are 64 x 17 mm with external size of 50.8 mm width, 30.5 mm height, and 2.9 mm depth.
- Designed for operation in temperatures ranging from -30°C to 80°C, ensuring usability in diverse environments.
- Constructed on flat glass with rigid pins in a dual in-line (DIL) package for easy PCB mounting.
- The reflective mode and wide viewing angle guarantee clear readings in direct sunlight and low light.
- LED backlight provides bright illumination for enhanced display visibility.
- Low energy consumption suitable for battery-powered equipment.
Product Description
RS PRO 184-7737 is a high-quality 7 Segment LED LCD Monochrome Display designed for industrial and portable electronic applications. It features a black-on-grey reflective display with LED backlighting, optimizing visibility under various lighting conditions including direct sunlight and dim environments.
This 1 x 6 character matrix display has characters sized 7 mm wide and 12.7 mm high, arranged in a standard 7-segment format with inter-digit decimal points and alternate colons. The overall viewing area measures 64 x 17 mm while the external dimensions are 50.8 mm (width) x 30.5 mm (height) x 2.9 mm (depth), making it compact and ideal for circuit board integration.
Operating temperature ranges from -30°C to +80°C, suitable for a wide range of portable devices and instrument panels. The display is constructed on a flat glass plate with rigid pins in a dual in-line (DIL) package format, ensuring robust connection and easy installation on printed circuit boards (PCBs).
The low energy use makes it favorable for battery-powered equipment, while the reflective display mode and wide viewing angles ensure that the information displayed is legible from various perspectives. This product does not include any certification approvals and comes with a bezel to protect the display.
The LED backlight provides clear illumination for enhanced character visibility. The reflective black-on-grey display improves readability in diverse lighting environments. The 7-segment monochrome format is widely used in electronic measurement devices and control panels.
The compact dimensions and DIL package facilitate easy PCB integration. Suitable for industrial, laboratory, manufacturing, and HVAC applications. Factory-tested for quality with consistent performance standards.
This RS PRO display module is an excellent component for engineers and technicians requiring reliable, easy-to-read numeric displays in electronic designs. Explore a wide selection of RS PRO industrial-grade components in the EnvMart electronics catalog for additional compatible parts and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 80°C.
The viewing area dimensions are 64 x 17 mm.
The characters measure 12.7 mm in height.
It features an LED backlight for enhanced visibility.
The character matrix format is 1 x 6.
The external dimensions are 50.8 mm in width, 30.5 mm in height, and 2.9 mm in depth.
The minimum operating temperature is -30°C.
This model is a 7 Segment LED LCD monochrome display.
It is constructed on flat glass with rigid pins in a dual in-line (DIL) package, facilitating easy PCB mounting.
It is designed for operation in temperatures ranging from -30°C to 80°C, making it suitable for diverse environments.
The illumination color of this display is black on grey.
This display is suitable for industrial, laboratory, manufacturing, and HVAC applications.
