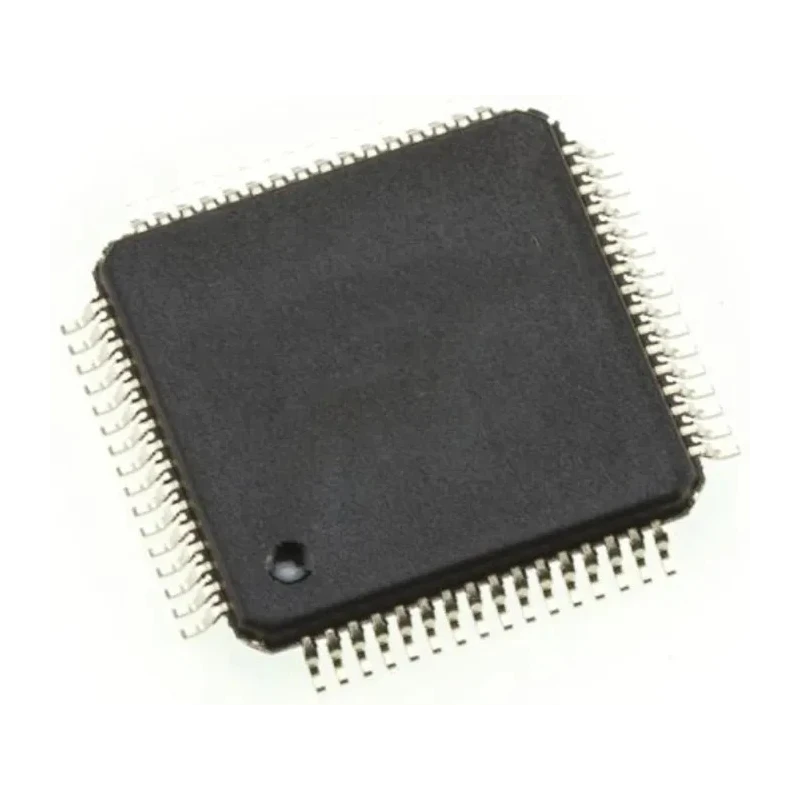

Infineon 32-bit ARM Cortex M0 Microcontroller CY8C4100 Series, 48 MHz, 128kB FLASH, 16kB RAM, 64-Pin TQFP CY8C4147AXI-S475

Infineon CY8C4147AXI-S475 is a high-performance 32-bit ARM Cortex M0 microcontroller from the CY8C4100 series, clocked at 48 MHz and equipped with 128kB of flash memory and 16kB of RAM. This device is designed to meet the needs of various embedded system applications across industrial, commercial, and IoT sectors.

The microcontroller integrates two 10/12-bit ADCs, two analogue comparators, and features 54 programmable I/O pins for versatile connection options. It operates within a broad supply voltage range of 1.71 V to 5.5 V, enhancing compatibility with diverse power sources. The device’s 64-pin TQFP surface-mount package provides a compact footprint of 14.05 mm by 14.05 mm with a low profile height of 1.45 mm.

Advanced power management capabilities include an active mode current consumption of 1.7 mA at 3-MHz flash program execution and ultra-low deep sleep mode current of 1.5 μA with a watch crystal oscillator, making it suitable for battery-powered and low-power applications.

The architecture is based on the ARM Cortex M0 core with Thumb-2 instruction set providing high code density and performance efficiency. It supports one timer and meets a broad temperature range from -40°C to 85°C, allowing use in automotive and industrial environments without automotive certifications.

Applications include embedded control systems, sensor interface, IoT devices, industrial automation, and communication modules. Its scalable and reconfigurable PSoC 4 platform architecture combines programmable analog and digital blocks with flexible routing capabilities.

Operates with a maximum clock frequency of 48 MHz. Features 128 kB flash program memory and 16 kB RAM. Includes 2 analogue comparators and 2 ADCs with 10/12 bit resolution. Designed for a wide supply voltage range of 1.71 V min to 5.5 V max.

Has 54 programmable I/Os supporting flexible configurations. Small form factor with dimensions 14.05mm x 14.05mm and height 1.45mm. Supports low power modes including deep sleep with 1.5 μA current consumption. Programmed using ARM Cortex M0 Thumb-2 instruction set architecture.

Operating temperature range from -40°C to 85°C for industrial applications. Surface mount type with 64-pin TQFP package for compact PCB integration.

This microcontroller is a robust choice for developers seeking a low-power, feature-rich ARM Cortex M0 device with flexible analog and digital peripherals. It is suitable for industrial instrumentation, consumer electronics, and embedded communication devices.
