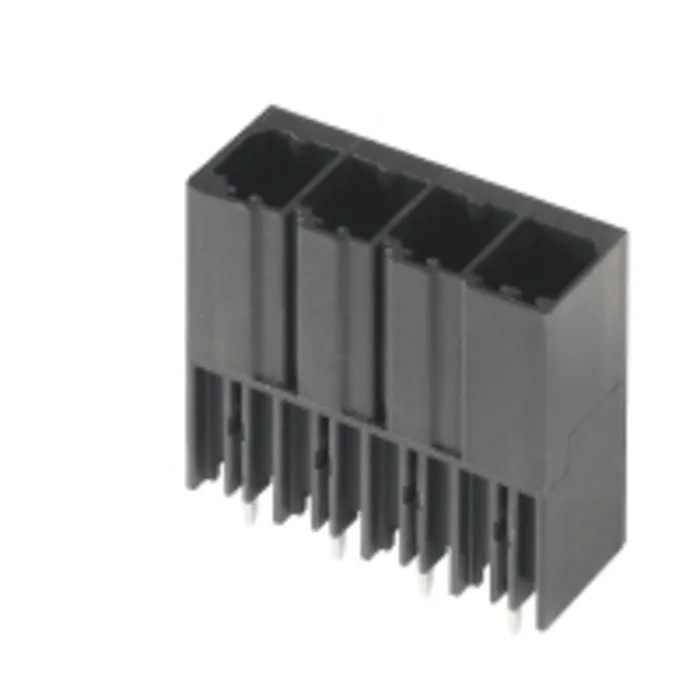

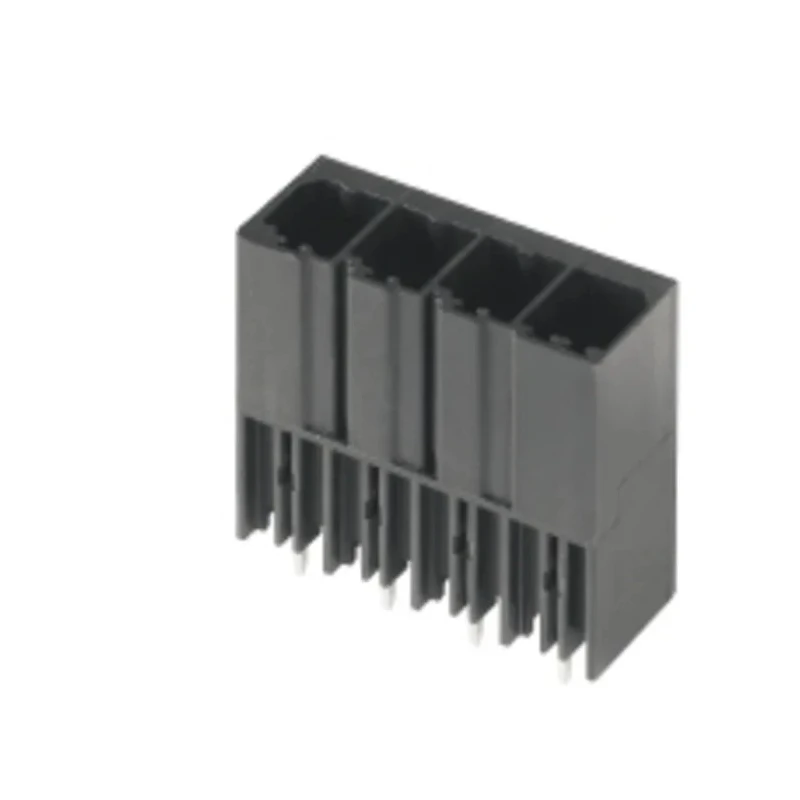

Weidmüller SV Series PCB Connector 6-Contact 7.62 mm Pitch 1 Row Male Straight Solder Connection Black 1930640000

Weidmüller 1930640000 SV Series PCB Connector is a high-quality male header designed for electronic applications requiring secure and reliable PCB connections. Featuring 6 contact points arranged in a single row with a 7.62 mm pitch, it provides stable electrical performance with a rated current of 35 A and supports voltage up to 1 kV. The connector housing is composed of durable polyamide fiberglass and copper alloy materials ensuring robustness and longevity in demanding environments.

The connector is oriented straight with a solder wire connection method, making it suitable for precise PCB implementations. Its compact dimensions of 44.1 mm in length, 11.4 mm in width, and 28.3 mm in depth allow for integration in confined spaces without compromising connectivity.

Certified to CSA and cURus standards, the SV series connector guarantees safe operation. It features a mating profile engineered to provide touch safety with a clearance of more than 3 mm, unique coding to avoid incorrect mating, and an additional fastening mechanism that enhances the mechanical stability of the connection. The connector assembly remains operational up to 125 °C, making it ideal for industrial, manufacturing, instrumentation, and electrical engineering applications.

Further versatility is offered by optional mounting flange types including flange (F), screw flange (SF), and clip-on screw flange (SFC), catering to secure fastening requirements.

This PCB Connector is manufactured in Romania, reflecting quality European production standards. Its reliable design suits electronic component assemblies in industrial automation, power distribution equipment, and control systems.

Features male connector gender with straight orientation for efficient solder connection. Constructed with polyamide fiberglass and copper alloy housing for durability and electrical performance. Rated for a current carrying capacity of 35 A and voltage withstand of up to 1 kV.

Compact dimensions: length 44.1 mm, width 11.4 mm, depth 28.3 mm for versatile PCB integration. Designed to meet CSA and cURus standards ensuring industrial safety and compliance. Provides touch safety via a mating profile with over 3 mm clearance and uniquely coded to prevent incorrect mating.

Operates reliably up to 125 °C with additional fastening mechanism and integrated positioning. Available with flange mounting options for secure installation. Explore more Weidmüller connectors and components in the Electronics & Electricals category at EnvMart for comprehensive industrial solutions.
