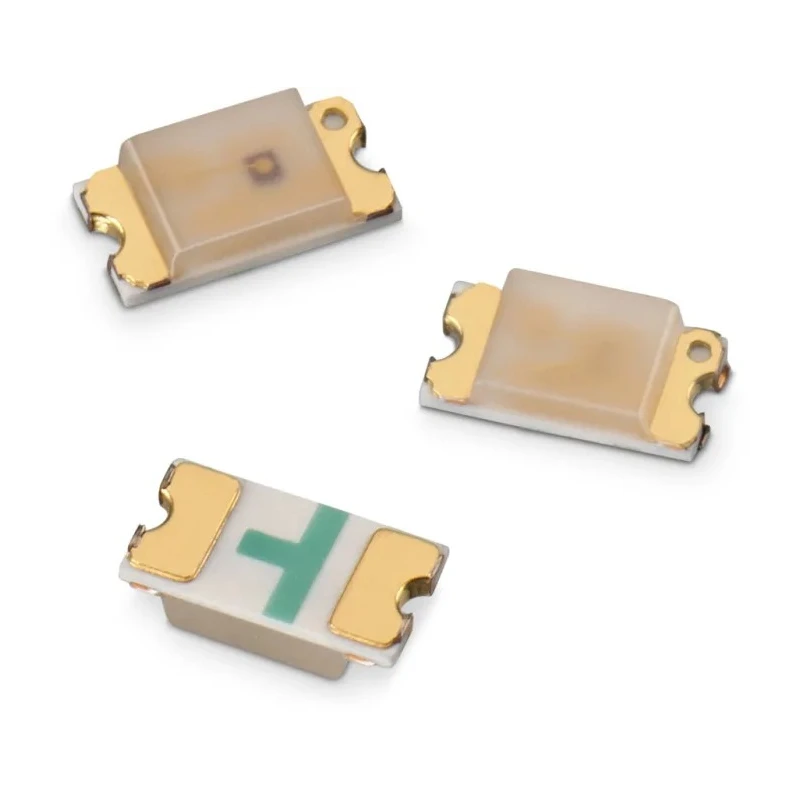

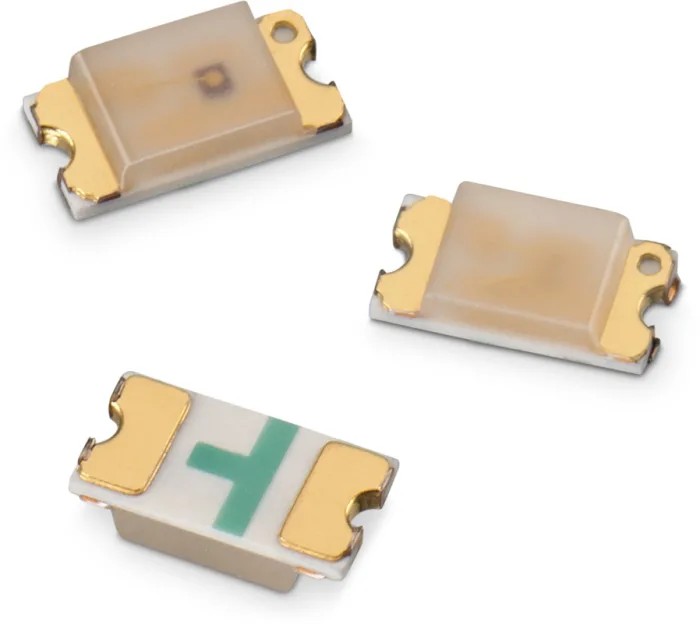

Wurth Elektronik 2.4 V Red LED 0603 Surface Mount WL-SMCD 150060RS55040
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 150060RS55040 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SMCD |
| Maximum forward current | 20mA |
| Viewing angle | 140 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 624nm |
| Forward Voltage | 2.4V |
| Number of Pins | 2 |
| LED Luminosity | 90 mcd |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 1.6 x 0.8 x 0.4 mm |
| Lens Shape | Rectangular |
| Lens Finish | Diffused |
| Thin version | 0.4 mm |
Key Features
- The LED features a forward current rating of 20mA for reliable operation.
- It has a maximum power dissipation of 48mW to ensure safe performance.
- The compact 0603 package dimensions are 1.6 x 0.8 x 0.4 mm with thin profile design.
- Wide viewing angle of 140 degrees provides broad light dispersion.
- The LED produces a luminous intensity of 90 mcd with a dominant wavelength of 624nm.
- The lens is diffused with a rectangular shape and clear color finish.
- The device is RoHS compliant adhering to environmental standards.
- Ideal for applications including office automation, industrial equipment, and backlighting of buttons and LCDs.
Product Description
Wurth Elektronik 150060RS55040 is a red LED with a forward voltage of 2.4 V, delivered in a compact 0603 surface mount package (1.6 x 0.8 x 0.4 mm), designed for precision and efficiency in electronic assemblies. Its thin profile and rectangular lens with diffused clear finish enable broad and uniform light emission.
This LED supports a maximum forward current of 20mA and a maximum power dissipation of 48mW, assuring stable operation within protected electrical limits. The wide 140° viewing angle enhances visibility across various lighting applications.
The luminous intensity of 90 millicandela and a dominant wavelength emission at 624 nm deliver vivid and consistent red light, suitable for both decorative and functional illumination needs.
Being RoHS compliant, this component meets rigorous environmental and safety regulations, making it suitable for industrial, office automation, home appliance, and other commercial equipment usages.
The product is packed in tape and reel format, facilitating automated placement in manufacturing lines, thus improving production efficiency.
Wurth Elektronik 150060RS55040 finds common uses in front panel backlighting, button indicator lighting, LCD backlighting, and navigation system illumination in multiple industrial domains.
Forward current rating ensures durable LED operation. Compact surface mount 0603 package saves board space. Wide viewing angle delivers extensive illumination coverage. High luminous intensity offers bright and clear indication.
Diffused lens provides uniform light diffusion. Environmental compliance through RoHS certification. Efficient packaging suitable for high volume manufacturing. Versatile use across office automation and industrial equipment.
Thin LED version enhances PCB design flexibility. Product manufactured in Taiwan ensuring quality control. Browse the Electronics & Electricals category on EnvMart for more quality LEDs from Wurth Elektronik and other leading brands to meet your production and design requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this LED is 2.4 V.
It has a maximum forward current rating of 20mA.
The compact 0603 package dimensions are 1.6 x 0.8 x 0.4 mm.
The luminous intensity is 90 millicandela (mcd).
It features a wide viewing angle of 140 degrees.
The maximum power dissipation is 48mW.
The LED has a rectangular lens with a diffused clear finish.
Yes, this LED is RoHS compliant, adhering to environmental standards.
It is packed in tape and reel format, facilitating automated placement.
This model is suitable for applications including office automation, industrial equipment, and backlighting of buttons and LCDs.
This LED is manufactured in Taiwan.
The thin profile of 0.4 mm enhances PCB design flexibility, allowing for more compact layouts.
