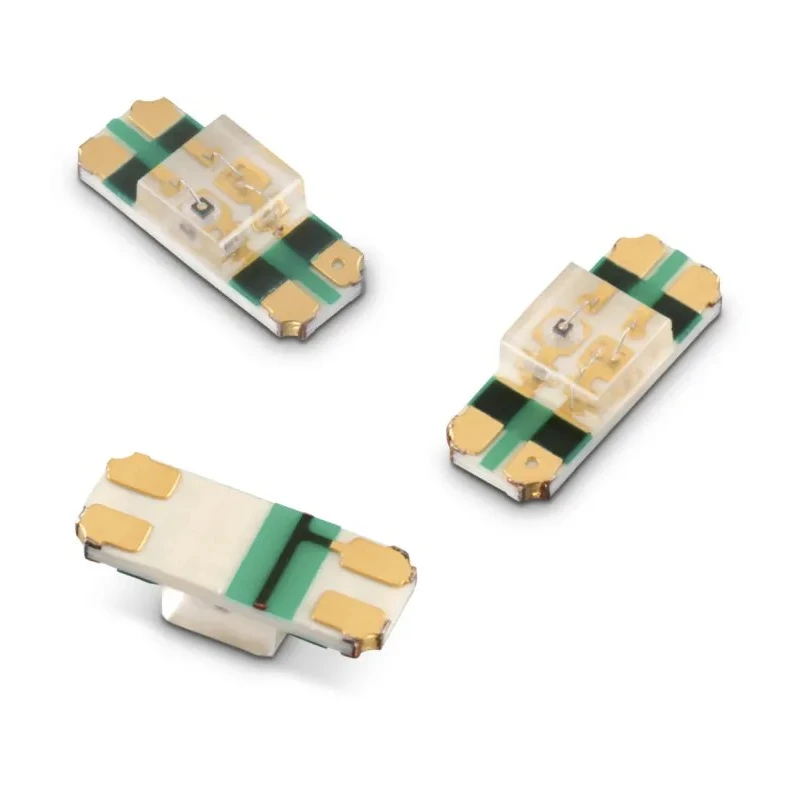

Wurth Elektronik 2.4 V Red, Green Bi-Color LED 1205 Surface Mount with 4 Pins WL-SBRW 156125RV73000
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Model | 156125RV73000 |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | WL-SBRW |
| Number Of Leds | 2 |
| Maximum forward current | 20mA |
| Viewing angle | 120 ° |
| Package Type | 1205 |
| Standards/Approvals | RoHS |
| LED Colour | Red, Green |
| Dominant Wavelength | 571, 624nm |
| Forward Voltage | 2.4V |
| Number of Pins | 4 |
| Maximum Power Dissipation | 48mW |
| Lens Dimensions | 3.2 x 1.2 x 0.8 mm |
| Lens Shape | Rectangular |
| Wurth Elektronik Green & Red LED 1205 SMD, 156125RV73000PBrand | Wurth Elektronik |
Key Features
- Operates at 2.4 V forward voltage with a maximum forward current of 20 mA.
- Features low power consumption with maximum power dissipation of 48 mW.
- Includes a wide viewing angle of 120 degrees for excellent visibility.
- Compact lens dimensions of 3.2 x 1.2 x 0.8 mm in a rectangular clear lens shape.
- Surface mount package type 1205 with 4 pins ensures compatibility with automatic placement machines.
- RoHS compliant and suitable for front panel indicators and keypad backlighting applications.
- Dual dominant wavelengths of 571 nm (green) and 624 nm (red) for bi-color indication.
- Manufactured in Taiwan, Province of China, ensuring quality standards.
Product Description
Wurth Elektronik 156125RV73000 is a bi-color LED featuring red and green emissions in a compact 1205 surface mount package designed for electronic applications requiring space efficiency and clear visual indication.
This LED operates at a forward voltage of 2.4 V with a maximum forward current rating of 20 mA, providing low power consumption with a maximum power dissipation of 48 mW. The device's clear rectangular lens with dimensions of 3.2 x 1.2 x 0.8 mm offers a wide viewing angle of 120 degrees for enhanced visibility in various indicator applications.
With a four-pin surface mount design, the LED supports automated PCB assembly and is compatible with standard soldering processes. The bi-color LED delivers dual dominant wavelengths of 571 nm for green and 624 nm for red light, making it ideal for use in front panel indicators, LCD backlighting, keypad illumination, symbols, switch buttons, messenger boards, and telecommunications equipment.
This product complies with the RoHS directive, ensuring environmental safety and reliability. The compact size and bright output make it suitable for use in narrow space applications where clear and multicolor visual signals are required.
Operates at low voltage and current for energy-efficient signalling. Compact 1205 surface mount package designed for automated assembly. Wide 120° viewing angle enhances LED visibility from multiple directions. Clear rectangular lens provides consistent light dispersion.
Complies with RoHS for environmental and safety standards. Bi-color functionality covering red and green indications. Manufactured in Taiwan, Province of China.
This Wurth Elektronik bi-color LED is well suited for industrial electronics, telecommunications, instrumentation, commercial panels, and other applications requiring reliable LED indicators with multi-color capability. Explore more LED components and lighting solutions on EnvMart to enhance your product designs and manufacturing quality.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The forward voltage of this bi-color LED is 2.4 V.
The maximum forward current for this model is 20 mA.
The dominant wavelength for the green light is 571 nm, and for the red light, it is 624 nm.
This LED has a wide viewing angle of 120 degrees, enhancing visibility from multiple directions.
The lens dimensions of this model are 3.2 x 1.2 x 0.8 mm.
This surface mount LED features 4 pins.
The maximum power dissipation of this LED is 48 mW.
This LED is packaged in Tape & Reel format, suitable for automated assembly.
Yes, this LED complies with RoHS standards, ensuring environmental safety.
This bi-color LED is suitable for front panel indicators, keypad backlighting, and telecommunications equipment.
The mount type for this LED is surface mount, designed for compatibility with automated placement machines.
This LED belongs to the WL-SBRW series.
