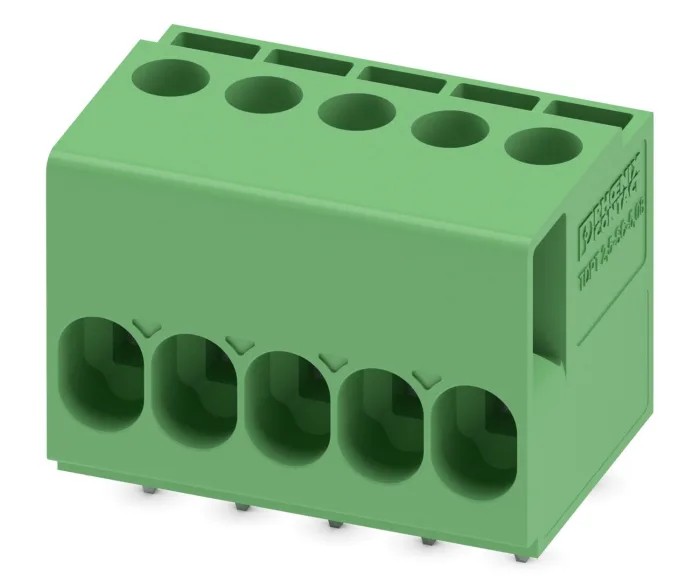

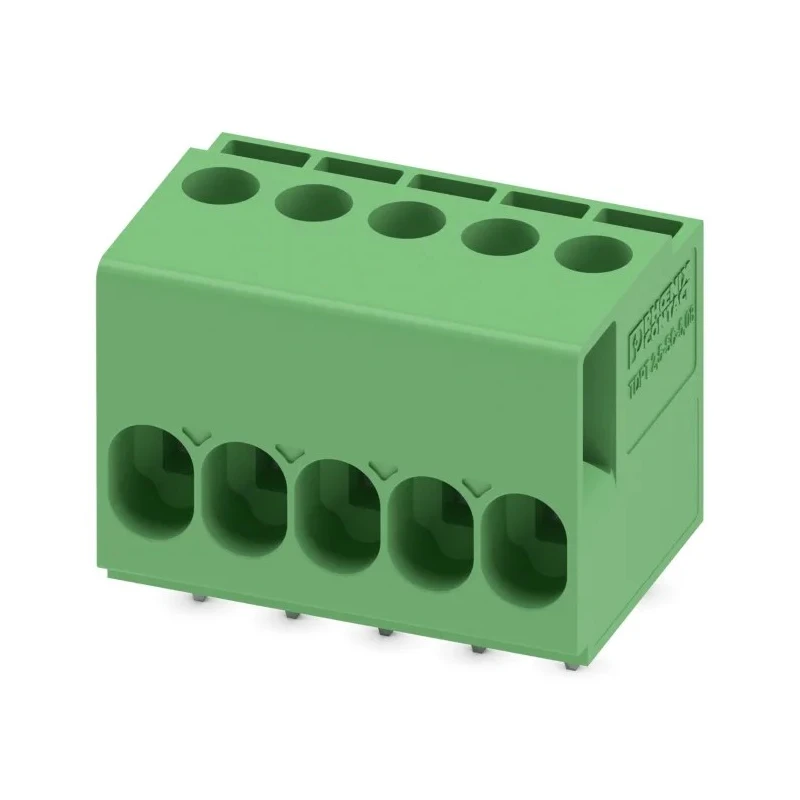

Phoenix Contact PCB Terminal Block TDPT 2.5/ 5-SC-5.08 Series Straight Wave Soldering Mount 5 Contacts 5.08 mm 1017494
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Orientation | Straight |
| Current | 24A |
| Model | 1017494 |
| Mount Type | Wave Soldering Mount |
| Series | TDPT 2.5/ 5-SC-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 5 |
| PCB Terminal block, nominal current | 24 A, nom. voltage: 400 V, pitch: 5.08 mm, number of positions: 5, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green |
Key Features
- Supports nominal current of 24 A and voltage of 400 V for reliable electrical connections.
- Features a straight orientation with screw connection including a tension sleeve for secure wiring.
- Designed with a single row and 5 contact positions compatible with 0-degree conductor/PCB connection direction.
- Constructed in green color complying with WEEE and RoHS environmental standards.
- Easy adaptation due to consistent size and pinning compatible with push-in spring connections.
- Ensures low temperature rise with maximum contact force for efficient performance.
- Made in China with high manufacturing standards ensuring quality and durability.
Product Description
Phoenix Contact 1017494 is a PCB Terminal Block from the TDPT 2.5/ 5-SC-5.08 Series, designed for straight wave soldering mount applications. It features 5 contacts with a 5.08 mm pitch, ideal for industrial electronics and electrical components requiring secure PCB connection points with nominal current of 24 A and voltage rating of 400 V.
This terminal block utilizes a screw connection method with a tension sleeve, ensuring reliable and firm conductor attachment in wave soldering mounting processes. Its straight orientation and single-row layout offer easy integration onto PCBs with conductor/PCB connection direction of 0° in vibrant green color, meeting WEEE and RoHS-compliant standards for environmental safety.
The design benefits from identical sizing and pinning aligned with push-in spring connections, allowing for versatile usage scenarios and consistent replacements or upgrades. The terminal block minimizes temperature rise during operation through optimized contact force, enhancing electrical performance and durability in demanding industrial, manufacturing, HVAC, and power distribution environments.
This product is made in China under stringent quality controls and is suitable for a wide range of industrial electronics applications requiring robust and compliant PCB connection solutions.
Supports nominal current of 24 A and voltage of 400 V. Screw connection with tension sleeve for secure wiring. Wave soldering mount type with straight orientation. Pitch is 5.08 mm with 5 contact positions in a single row.
Color: green; WEEE and RoHS compliance. Compatible with push-in spring connection pinning. Designed to minimize temperature rise during use. Explore more products in the PCB Terminal Block category at EnvMart for reliable industrial connectivity solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block supports a nominal current of 24 A and a voltage rating of 400 V.
It features a wave soldering mount type, designed for secure attachment during the soldering process.
This model has 5 contact positions arranged in a single row.
The pitch size of this terminal block is 5.08 mm.
It utilizes a screw connection method with a tension sleeve for secure wiring.
The orientation of this terminal block is straight, allowing for easy integration onto PCBs.
Yes, it is compliant with WEEE and RoHS environmental standards.
The terminal block is constructed in a vibrant green color.
The conductor/PCB connection direction is 0 degrees, facilitating straightforward connections.
This product is made in China under stringent quality controls.
It is suitable for a wide range of industrial electronics applications, including manufacturing and power distribution.
It minimizes temperature rise during operation through optimized contact force, enhancing electrical performance.
