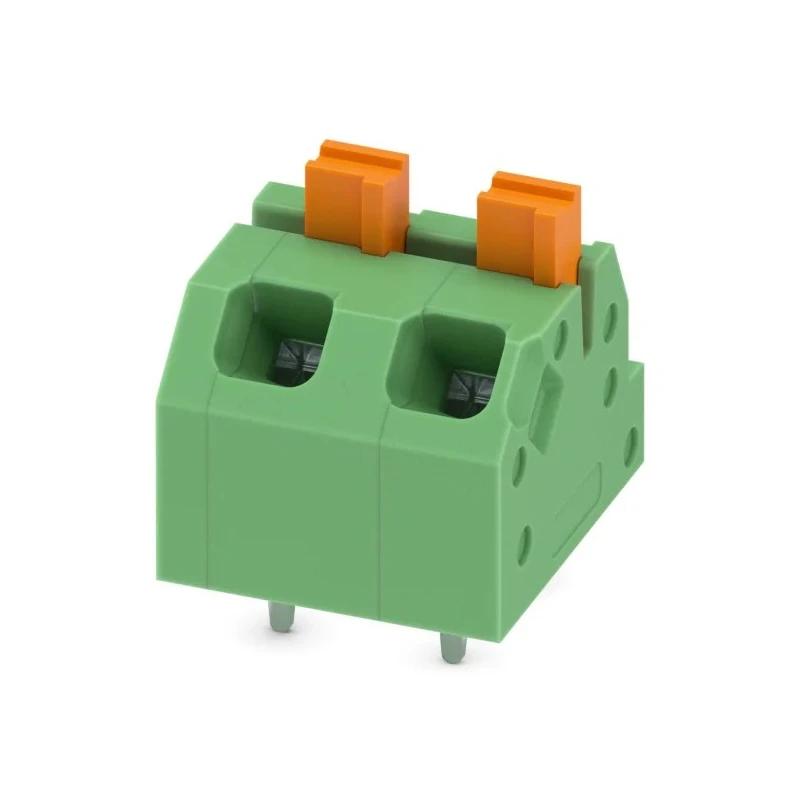

Phoenix Contact PCB Terminal Block SPTAF 1/ 2-5.0-EL Series Angled Wave Soldering Mount 2 Contact, 5 mm Pitch, 2 Row 1862411

Phoenix Contact 1862411 PCB Terminal Block from the SPTAF 1/ 2-5.0-EL series is engineered for high reliability in electrical connections on printed circuit boards. This angled wave soldering mount terminal block features 2 contacts spaced at a 5 mm pitch with a 2-row configuration, enabling space-efficient PCB assembly and excellent electrical conductivity rated for 16 amperes and 320 volts.

Housed in robust polyamide material, the terminal block ensures great mechanical strength and resistance to electrical and environmental stresses, suitable for demanding industrial, electronic components, and power connector applications. It employs a push-in spring connection system that streamlines conductor attachment without the need for additional tools, minimizing installation time and maintenance efforts.

The conductor and PCB connection direction is angled at 45 degrees to optimize soldering quality during wave soldering processes, enhancing mechanical and electrical reliability. The device is further equipped with a finger-operated release button for effortless conductor release and features an integrated test point to facilitate fast circuit verification.

Compliant with EU RoHS regulations and cULus recognized standards, this terminal block guarantees environmental and safety compliance. Its compact size and design make it ideal for use in industrial machines, electronic PCB assemblies, power systems, and manufacturing equipment where space constraints and connection reliability are critical.

Nominal current capacity of 16 A with a nominal voltage rating of 320 V. Housing crafted from polyamide for durability. Push-in spring connection method for tool-free wiring. Angled orientation with 45° conductor/PCB direction.

Wave soldering mount type suitable for reliable PCB attachment. Integrated test option for convenient electrical testing. Finger-operated release button for ease of use. Complies with EU RoHS and cULus standards. Compact two-row, two-contact design with 5 mm pitch spacing.

Manufactured in Germany ensuring quality assurance.
