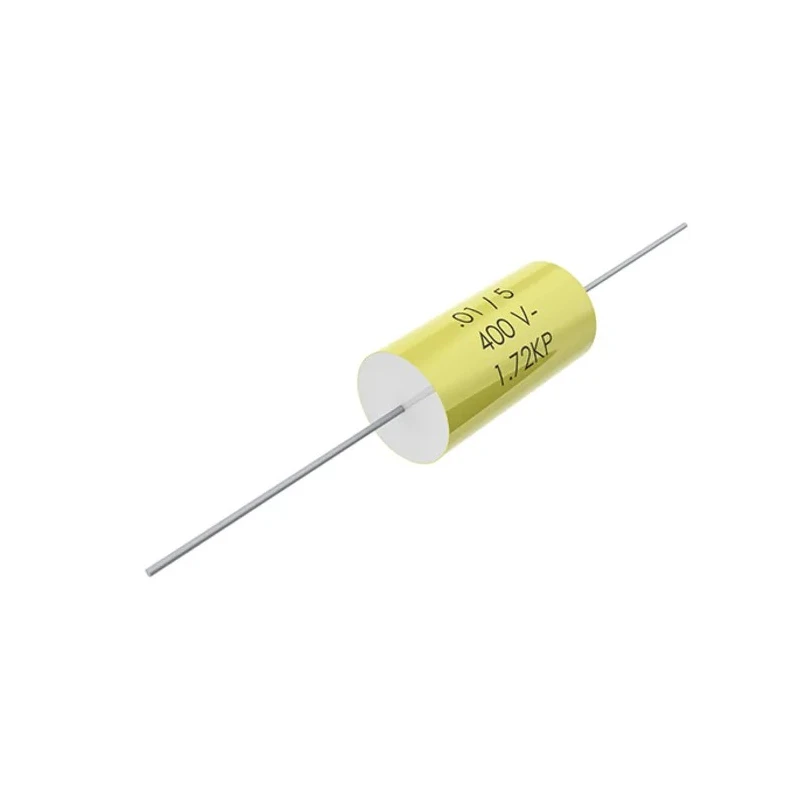

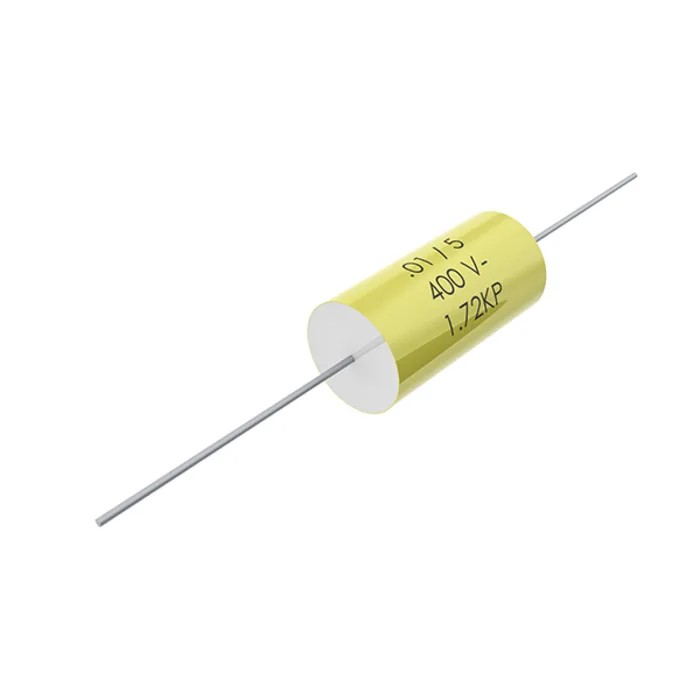

KEMET A72 Film Capacitor, ±10 % Tolerance, 22 nF, 1500 V dc, 450 V ac, Through Hole A72SQ2220AA00K
Specifications
| Country of Origin | Italy |
|---|---|
| Capacitance Range | 47 pF - 0.33 μF |
| Diameter | 5 - 22.5 mm |
| Brand | KEMET |
| Length | 28mm |
| Model | A72SQ2220AA00K |
| Width | 12.5mm |
| Mount Type | Through Hole |
| Series | A72 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -55°C |
| Terminal type | Axial |
| Dissipation Factor | 0.1% |
| Lead Length | 40mm |
| Standards/Approvals | IEC 60384-13, UL |
| Package/Case | Plastic |
| Pin Count | 2 |
| Rated AC Voltage | 450V ac |
| Rated DC Voltage | 1500V dc |
| Lead Diameter | 0.8mm |
| Capacitance tolerance | ±5%, ±10%, ±20% |
Key Features
- Rated for 1500 V DC and 450 V AC voltages ensuring robust performance.
- Mount type is through-hole with axial lead terminals and 40 mm lead length.
- Constructed with polypropylene film and metal foil ensuring self-healing properties.
- Operating temperature range from -55°C to 105°C supports a wide range of industrial environments.
- Encapsulated in polyester tape wrapping with thermosetting resin for durability.
- Complies with IEC 60384-13 and UL standards, ensuring reliable and certified quality.
- Dissipation factor is low at 0.1% for minimal energy loss during operation.
- Manufactured in Italy adhering to stringent quality and environmental norms.
Product Description
The KEMET A72SQ2220AA00K Film Capacitor is designed for demanding electronic applications requiring stable capacitance and robust voltage tolerance. It exhibits a nominal capacitance of 22 nF with a tolerance of ±10 %, making it suitable for precision circuits. This capacitor supports a rated DC voltage of 1500 V and an AC voltage of 450 V, allowing it to be used in high-voltage filtering and signal processing roles.
Featuring a through-hole mount design with axial leads measuring 40 mm in length, it facilitates secure and easy PCB installation. The capacitor winding is made using polypropylene film combined with metal or metallized foil, providing excellent self-healing capability and long-term reliability. The housing is wrapped in polyester tape alongside a thermosetting resin case, ensuring environmental and mechanical protection.
Designed to operate reliably in temperatures ranging from -55°C to 105°C, this capacitor meets IEC 60384-13 and UL standards, indicating compliance with international safety and quality benchmarks. Dissipation factor is a low 0.1 %, highlighting its efficiency in minimizing power loss.
High capacitance stability with ±10 % tolerance. Robust voltage rating for 1500 V DC and 450 V AC applications. Through-hole mount with axial leads for dependable connectivity. Self-healing polypropylene film technology.
Wide operating temperature from -55°C to 105°C. Compliant with IEC 60384-13 and UL standards. Durable polyester tape and thermosetting resin encapsulation. Low dissipation factor of 0.1% for energy-efficient operation. Manufactured in Italy with high quality assurance.
This capacitor is ideal for electronic manufacturing, power supply design, high-frequency filtering, and other industrial, laboratory, and commercial electrical applications. It offers reliable performance and durability under harsh conditions, making it a valuable component in many electronic assemblies.
Explore more premium Film Capacitors from KEMET and find exactly the right parts for your application in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The KEMET A72 Film Capacitor has a nominal capacitance of 22 nF with a tolerance of ±10%.
It is rated for a DC voltage of 1500 V and an AC voltage of 450 V.
This capacitor operates reliably within a temperature range of -55°C to 105°C.
This model features a through-hole mount design with axial lead terminals.
The lead length for this film capacitor is 40 mm.
The dissipation factor is low at 0.1%, which minimizes energy loss during operation.
It complies with IEC 60384-13 and UL standards, ensuring reliable quality and safety.
It is constructed with polypropylene film and metal foil, providing self-healing properties and durability.
The capacitor has a length of 28 mm, a width of 12.5 mm, and a diameter range of 5 - 22.5 mm.
This capacitor is suitable for electronic manufacturing, power supply design, and high-frequency filtering among other industrial applications.
This film capacitor is manufactured in Italy, adhering to stringent quality and environmental norms.
The terminal type for this model is axial, allowing for easy PCB installation.
