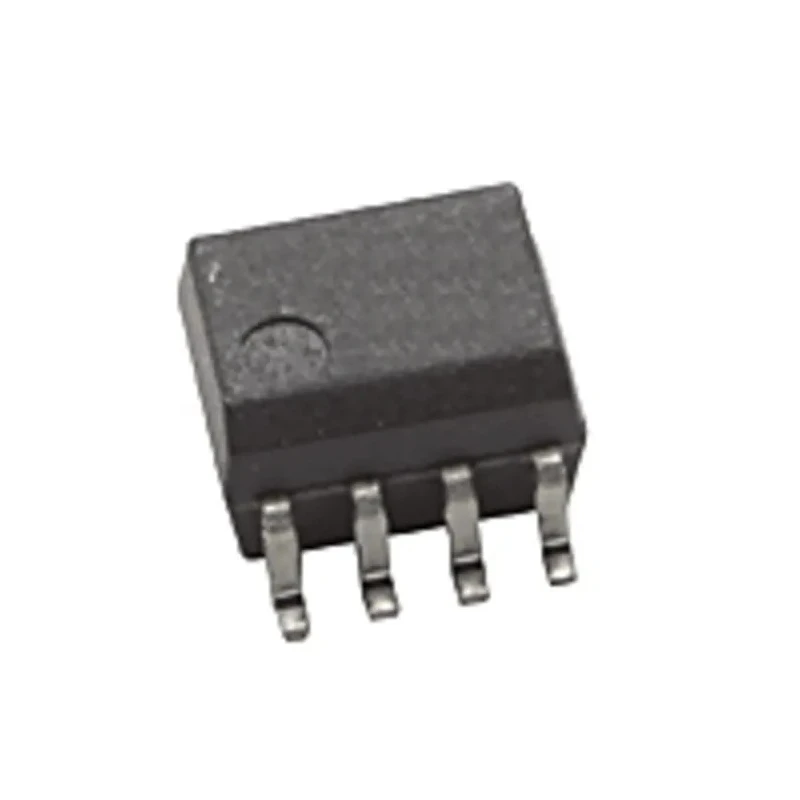

Broadcom Optocoupler, Surface Mount, 8-Pin SO Package, Transistor Output, 3750Vrms Isolation Voltage, -45 to HCPL-0601-500E
Specifications
| Country of Origin | India |
|---|---|
| Brand | Broadcom |
| Model | HCPL-0601-500E |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Output type | Transistor |
| Series | HCPL |
| Maximum Operating Temperature | 80°C |
| Package Type | SO |
| Minimum Operating Temperature | -45°C |
| Maximum input current | 20mA |
| Number Of Channels | 1 |
| Standards/Approvals | CSA, UL |
| Maximum Forward Voltage | 1.8V |
| Number of Pins | 8 |
| Typical Rise Time | 24ns |
| Typical Fall Time | 10ns |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides galvanic isolation suitable for mixed-voltage automotive and industrial systems.
- Transistor output ensures reliable logic-level signalling.
- Wide operating temperature range from -45°C to 80°C for harsh environments.
- Typical rise time of 24ns and fall time of 10ns support fast digital switching.
- Maximum forward voltage of 1.8V and input current up to 20mA for LED drive compatibility.
- Single channel configuration simplifies circuit integration.
- Supplied in tape & reel packaging for automated assembly.
- Certified with CSA, UL, and meets AEC-Q100 automotive standards.
Product Description
Broadcom HCPL-0601-500E is a high-performance optocoupler designed for surface mount applications, packaged in an 8-pin small-outline (SO) form factor. It provides galvanic isolation with an isolation voltage rating of 3750Vrms, making it ideal for protecting sensitive electronics in automotive and industrial environments.
The device features a transistor output and supports logic-level signalling, enabling seamless interfacing with microcontrollers and other digital systems. With a maximum operating temperature of 80°C and a minimum of -45°C, it is well-suited for use in harsh temperature conditions commonly found in automotive control modules and industrial machinery.
The optocoupler offers fast digital switching capabilities, with a typical rise time of 24ns and a fall time of 10ns, ensuring minimal propagation delay. It is designed for an input LED with a maximum forward voltage of 1.8V and can handle up to 20mA input current, accommodating standard LED drive levels.
Certified by CSA and UL, and compliant with the automotive-grade AEC-Q100 standard, the HCPL-0601-500E meets stringent safety and reliability requirements. It is supplied in tape & reel packaging, facilitating automated pick-and-place assembly processes in manufacturing.
Galvanic isolation up to 3750Vrms enhances electrical safety in mixed-voltage systems. Transistor output provides reliable and efficient logic signal transmission. Wide temperature range from -45°C to 80°C supports robust operation.
Fast switching with 24ns rise and 10ns fall times reduces signal delay. Maximum input LED forward voltage 1.8V and current 20mA for compatibility. Single channel simplifies system design and integration. Tape & reel packaging enables automated assembly.
Meets CSA, UL safety certifications and AEC-Q100 automotive standards.
This optocoupler is ideal for industrial, automotive, and communication equipment where electrical isolation and signal integrity are critical. Its robust specifications make it suitable for vehicle control modules, board-level isolation, and safety circuitry in demanding environments.
Explore more Optocouplers and related electronic components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The HCPL-0601-500E has an isolation voltage rating of 3750Vrms, providing effective galvanic isolation for sensitive electronics.
This model operates within a temperature range of -45°C to 80°C, making it suitable for harsh environments.
The typical rise time is 24ns and the fall time is 10ns, supporting fast digital switching capabilities.
The maximum input current for the HCPL-0601-500E is 20mA, allowing compatibility with standard LED drive levels.
This model features a transistor output, which ensures reliable logic-level signalling.
The HCPL-0601-500E is a single channel optocoupler, simplifying circuit integration.
It is supplied in tape & reel packaging, facilitating automated assembly processes.
The HCPL-0601-500E is certified by CSA and UL, and complies with the AEC-Q100 automotive standard.
The maximum forward voltage for the input LED is 1.8V, ensuring compatibility with typical LED configurations.
This optocoupler is designed for surface mount applications, packaged in an 8-pin SO form factor.
The HCPL-0601-500E is manufactured in India.
This model belongs to the HCPL series of optocouplers.
