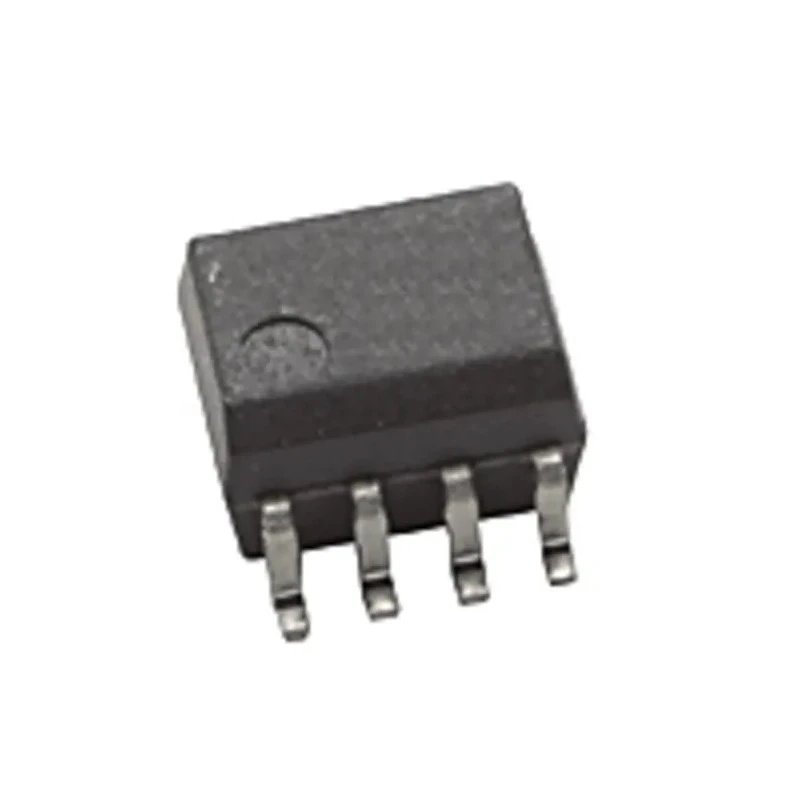

Broadcom 2-Channel Optocoupler Surface Mount 8-Pin SO Package HCPL-0661-500E

Free Delivery in India | Lowest Global Shipping Charges

Broadcom 2-Channel Optocoupler Surface Mount 8-Pin SO Package HCPL-0661-500E

Name: Broadcom 2-Channel Optocoupler Surface Mount 8-Pin SO Package HCPL-0661-500E
Brand: Broadcom
SKU: 151664
Price: 7.54 USD
Availability: InStock



Category Optocoupler Brand Broadcom Condition New

Specifications

Country of Origin	India
Brand	Broadcom
Model	HCPL-0661-500E
Packaging	Tape & Reel
Mount Type	Surface
Output type	Transistor
Series	HCPL
Maximum Operating Temperature	80°C
Package Type	SO
Minimum Operating Temperature	-45°C
Maximum input current	15mA
Number Of Channels	2
Standards/Approvals	UL, CSA
Maximum Forward Voltage	1.8V
Number of Pins	8
Typical Rise Time	24ns
Typical Fall Time	10ns
Automotive Standard	AEC-Q100
Low Input Current Capability	5mA
Guaranteed ac and dc Performance over Temperature	-40 degrees C to 85 degrees C

Key Features

Combines GaAsP LED and high gain photodetector for isolated logic signal transfer.
Achieves common mode transient immunity of 10,000 V/ms for noise immunity.
Low input current capability of 5mA enables energy-efficient operation.
Operates reliably within -45°C to 80°C temperature range.
Supports data rates up to 10 MBd compatible with LSTTL/TTL logic.
Available in surface mount 8-Pin SO package with tape and reel packaging.
Meets UL and CSA safety approvals and automotive AEC-Q100 standard.
Output transistor features Schottky clamp for fast switching performance.

Product Description

Broadcom HCPL-0661-500E is a high-performance 2-channel optocoupler designed for surface mount applications, housed in an 8-Pin SO package. This device integrates a Gallium Arsenide Phosphide (GaAsP) LED with a high gain photodetector to provide reliable optically isolated transistor output signals. It ensures signal integrity with a guaranteed common mode transient immunity of 10,000 V/ms (minimum 10 kV/ms CMR at 1000 V).

The low input current capability of approximately 5mA allows for energy-efficient operation, while maintaining compatibility with LSTTL/TTL logic circuits. Operating temperature range from -45°C to 80°C ensures usability in harsh environments common in industrial and automotive sectors.

The output stage features an open collector transistor with a Schottky clamp to achieve fast switching times, supported by typical rise and fall times of 24ns and 10ns respectively. The device is also packaged in tape and reel format to facilitate automated manufacturing processes.

Broadcom HCPL-0661-500E complies with UL and CSA safety standards and meets automotive grade AEC-Q100 certifications, making it suitable for critical automotive and industrial applications where electrical isolation and noise immunity are essential.

Offers excellent transient immunity and electrical isolation up to 3750 Vrms. Supports data transfer rates of up to 10 megabaud (MBd) for high-speed communications. Provides stable and guaranteed performance over a broad temperature range.

Includes series model HCPL known for reliability in semiconductor electronic components.

This optocoupler is widely used in industrial control systems, power supplies, data communication interfaces, and automotive electronics where isolation between input and output is critical for device safety and system integrity.

Explore more semiconductor electronic components and Optocouplers in the Electronics & Electricals category on EnvMart for your industrial and technical requirements.
