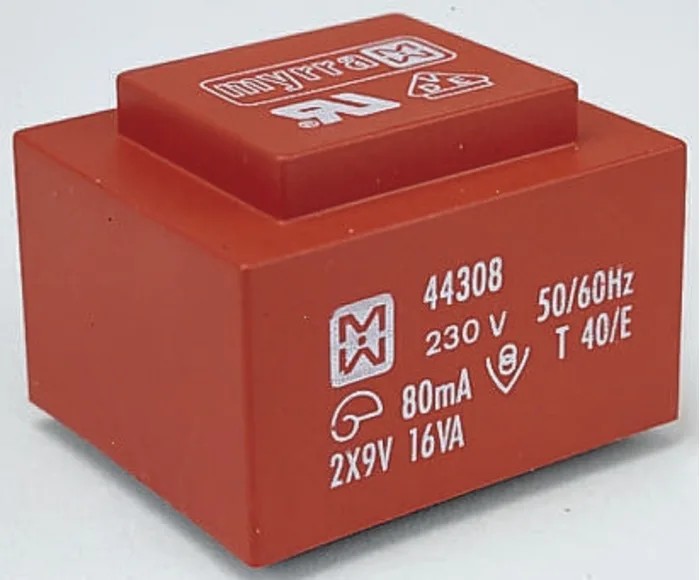

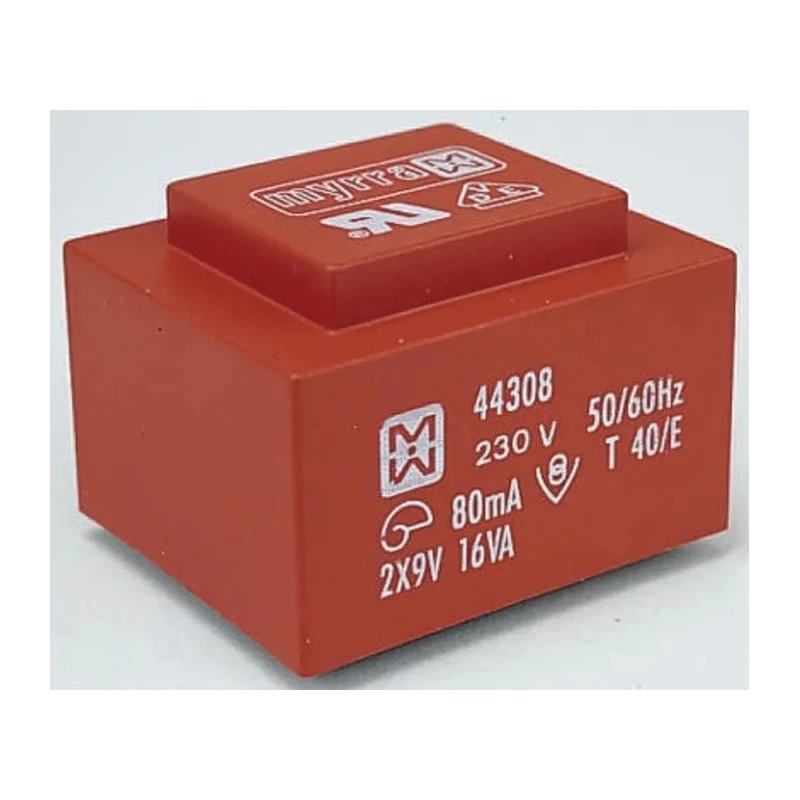

Myrra 9 V ac 2 Output Through Hole PCB Transformer 16 VA 230 V ac Primary Voltage Model 44308

Myrra 44308 Through Hole PCB Transformer is a highly reliable and compact transformer designed specifically for printed circuit board mounting. It features a primary voltage of 230 V ac and provides dual 9 V ac secondary outputs, each capable of delivering power at 16 VA. This transformer is suitable for use in a variety of electronic and electrical applications including industrial control panels, laboratory equipment, and general power supply units.

Designed with a through hole mount type, it ensures secure attachment to PCBs and easy integration into assembly workflows. Its compact dimensions of 56.5mm length, 47.25mm width, and 38.75mm depth make it ideal for space-constrained installations.

The product offers excellent electrical isolation with a voltage rating of 4 kV, helping to prevent electrical faults and enhance operator safety. It is engineered to operate reliably within a maximum temperature range of 50°C and supports frequency from 50 to 60 Hz, accommodating diverse power source requirements.

This PCB transformer complies with multiple international safety and performance standards including CEI 85, UL 1585, EN 60950, and EN 61558-2-6. Manufactured in France, it reflects stringent quality control and engineering excellence.

Primary voltage: 230 V ac. Secondary voltage: 9 V ac, dual output. Power rating: 16 VA. Through hole mounting for PCB integration. Dimensions: 56.5 mm (L) x 47.25 mm (W) x 38.75 mm (D). Isolation voltage: 4 kV. Operating temperature up to 50°C.

Frequency range: 50 - 60 Hz. Standards: CEI 85, UL 1585, EN 60950, EN 61558-2-6. Weight: 400 g.

This transformer is well-suited for industrial electronics, power supplies, and laboratory test equipment requiring stable and isolated low-voltage outputs. Explore more high-quality PCB Transformers and power supply components from top brands at EnvMart.
