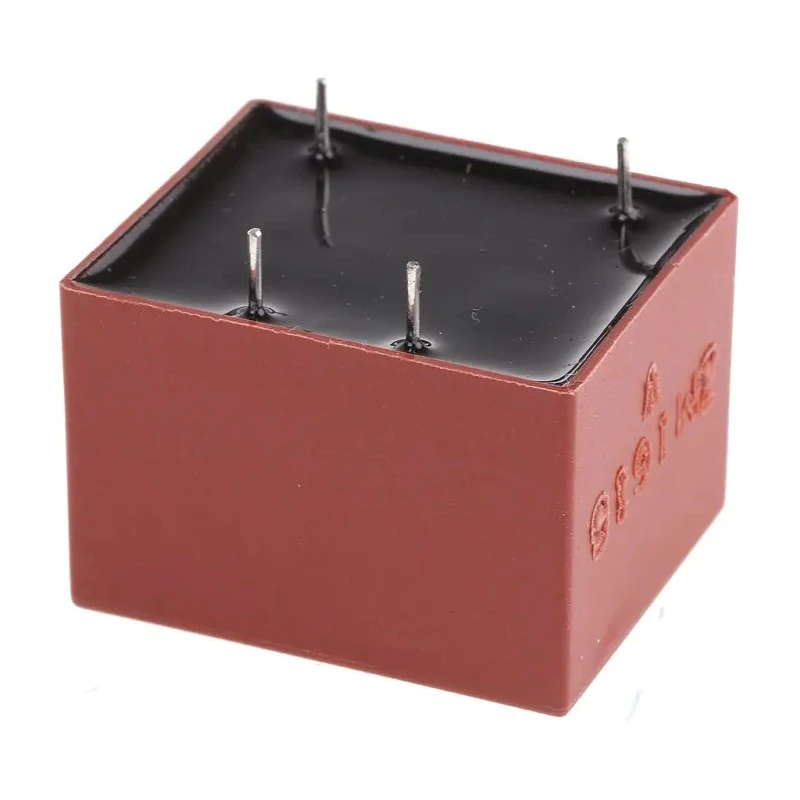

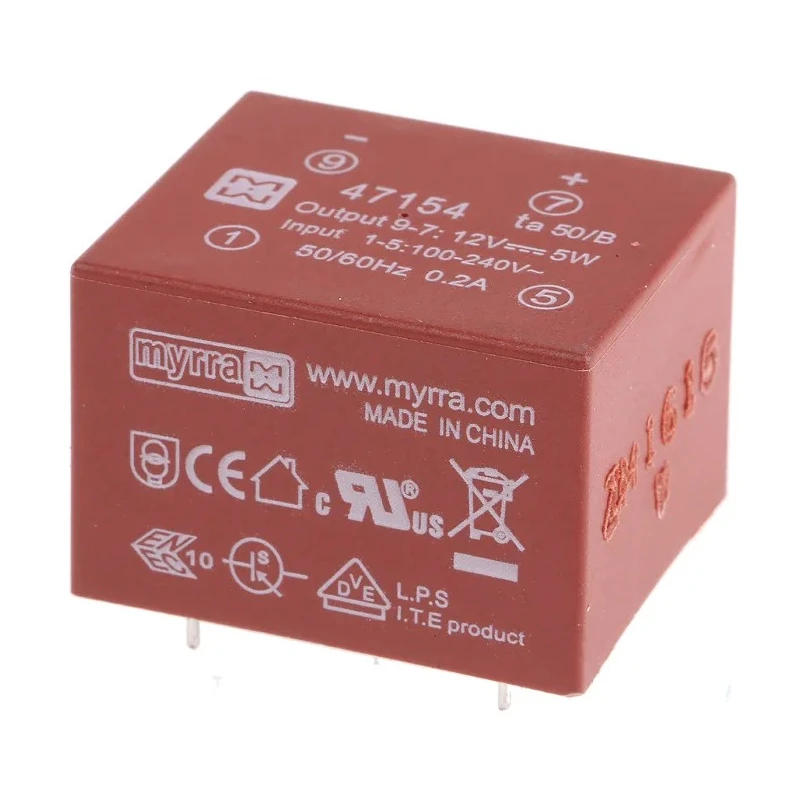

Myrra 1 Output SMPS Transformer 5 W Power 370 V dc, 265 V ac Primary Voltage 12 V dc Secondary Voltage Model 47154
Specifications
| Country of Origin | China |
|---|---|
| Brand | Myrra |
| Power | 5W |
| Length | 31.7mm |
| Model | 47154 |
| Depth | 21.8mm |
| Width | 26.7mm |
| Mount Type | Through Hole |
| Series | 47000 |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Secondary current | 1350mA |
| Number of outputs | 1 |
| Isolation Voltage | 4000V ac |
| Primary Voltage | 370 V dc, 265 V ac |
| Secondary Voltage | 12 V dc |
| Minimum Operating Frequency | 47Hz |
| Maximum Operating Frequency | 440Hz |
| Block 12 V ac 1 Output Pin PCB Transformer, ENEC 10 (VDE), C-UL-US 5 VABrand | Block |
| Myrra 3 Output SMPS Transformer, 265 V ac, 370 V dc, 24 V dcBrand | Myrra |
Key Features
- The transformer uses through hole mount configuration for easy PCB integration.
- It features a single regulated DC output suitable for telecom and industrial applications.
- Compact dimensions of 31.7mm length, 26.7mm width, and 21.8mm depth ensure space efficiency.
- Operating temperature ranges from -25°C to 70°C, enabling a broad range of environmental adaptability.
- High isolation voltage of 4000 V ac ensures operational safety.
- Compliance with multiple safety and EMC standards like EN 55022 Class B and UL 94-V0.
- Designed based on flyback topology for energy-efficient operation with low standby power consumption.
- Suitable for telecom supplies, electric substations, industrial, domestic, and consumer electronics.
Product Description
Myrra 47154 SMPS Transformer is a high-performance single output switched mode power supply transformer delivering 5 W power output. It accepts a primary voltage of 370 V dc or 265 V ac and outputs a regulated 12 V dc. The transformer features a through hole mount type for easy PCB assembly and a compact form factor with dimensions of 31.7 mm length, 26.7 mm width, and 21.8 mm depth.
Designed on flyback topology, this encapsulated electronic transformer offers energy savings through high efficiency and low standby power consumption. Its single regulated DC output makes it an ideal choice for telecom supplies, electric substations, industrial use, domestic, and consumer electronics.
The device can operate effectively in ambient temperatures from -25°C to 70°C, withstanding up to 4000 V ac isolation voltage, providing reliable performance in demanding environments. It complies with stringent industry standards including EN 55022 Class B, EN 60335, EN 61558-2-17, EN 55014-2, EN 61000-4-x, UL 94-V0, EN 60950, and EN 55014-1, ensuring safety and electromagnetic compatibility.
This transformer serves as a practical replacement for conventional 50 Hz transformers, fuse, bridge rectifier, regulator, and filtering capacitor in power applications below 5 W. The compact size and efficient design facilitate integration in a wide range of electronic equipment and industrial systems.
The transformer provides a low noise, stable power supply source with 1350 mA secondary current capacity. Its compliant build and certifications make it well-suited for telecommunications and power electronics sectors. Compact chassis and through-hole mounting simplify board-level design and manufacturing.
High operational frequency range from 47 Hz to 440 Hz enables versatile application usage. The transformer is manufactured in China and adheres to the 47000 series specifications. Explore additional power supply and transformer solutions at EnvMart for industry-grade electronics components and reliable power distribution systems.
Explore more products in our Power Supplies & Transformers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It accepts a primary voltage of 370 V dc or 265 V ac.
The transformer provides a regulated secondary voltage output of 12 V dc.
The dimensions are 31.7 mm in length, 26.7 mm in width, and 21.8 mm in depth.
The maximum operating temperature is 70°C.
It has a high isolation voltage rating of 4000 V ac.
The secondary current capacity is 1350 mA.
The operating frequency range is from 47 Hz to 440 Hz.
It features a through hole mount type for easy PCB assembly.
It complies with multiple safety and EMC standards including EN 55022 Class B and UL 94-V0.
This model is suitable for telecom supplies, electric substations, industrial use, domestic, and consumer electronics.
The transformer is manufactured in China.
