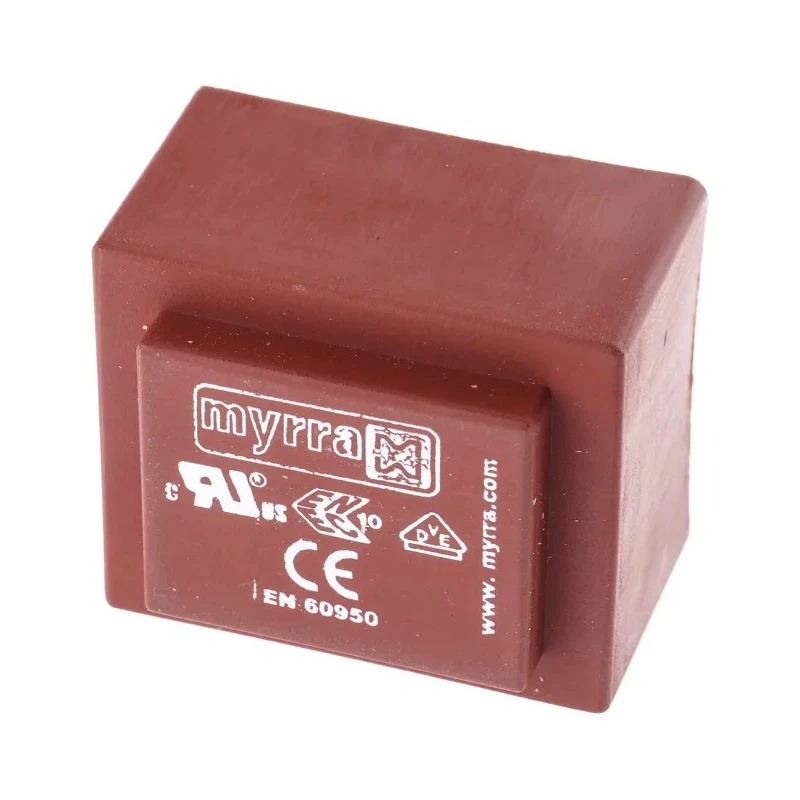

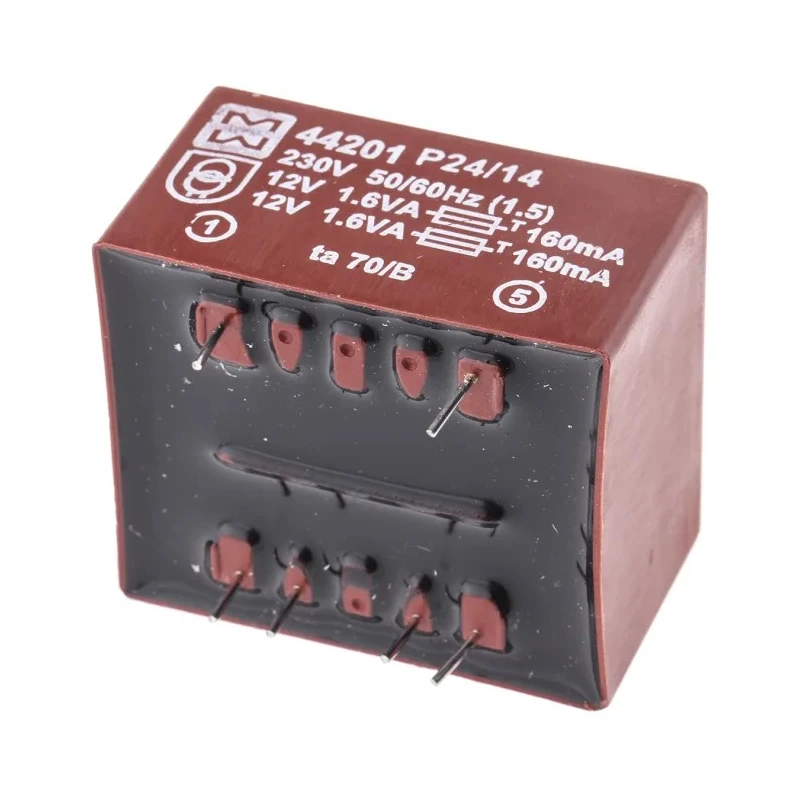

Myrra 12 V ac 2 Output PCB Transformer, 230 V ac, 30 VA, Mount Type PCB, UL 1585, EN 61558-2-6, UL 506, CEI 126, EN 44201

Myrra 44201 is a high-quality PCB transformer designed for electronic components requiring a 12 V ac output with two outputs. It operates with a 230 V ac primary voltage input and provides a power rating of 30 VA, ideally suited for applications needing reliable, isolated power conversion on compact PCB layouts.

This encapsulated toroidal transformer features a compact size with dimensions of 41 mm in length and 28 mm in depth, making it easy to integrate within modern electronic assemblies. It employs PCB mounting style which is commonly used for low profile, easy installation on circuit boards. The isolation voltage of 4 kV ensures safety and effective separation between primary and secondary circuits, critical for sensitive industrial, laboratory, and commercial electronics equipment.

Operating temperature up to 250°C and compliance with international standards such as UL 1585, EN 61558-2-6, UL 506, CEI 126, EN 60950, and CEI 85, provide confidence in performance and safety. Suitable for use in industrial control systems, electronic instrumentation, telecommunications, and other applications requiring stable secondary voltages at common utility frequencies of 50 to 60 Hz.

The transformer's total gross weight of 150 grams supports its use in lightweight embedded power supplies. This model, part of the Myrra 44000 series, is manufactured in France, reflecting European manufacturing standards and quality controls.

The 2-output design allows for versatile power distribution in dual voltage rail circuits or separate isolated circuits, expanding its application range in industrial electronics and embedded systems.

Primary voltage rating: 230 V ac. Secondary voltage: 12 V ac (two outputs). Power rating: 30 VA. Dimensions: 41 mm length x 28 mm depth. Mount type: PCB. Isolation voltage: 4 kV. Operating temperature max: 250°C. Frequency range: 50 Hz - 60 Hz.

Weight: 150 g. Certifications: UL 1585, EN 61558-2-6, UL 506, CEI 126, EN 60950, CEI 85. Country of origin: France.

Explore the extensive range of PCB Transformers and other electronic components available at EnvMart for industrial, laboratory, and commercial electronic power design applications.
