Myrra SMPS Transformer 5 W Power 265 V Primary, 3.3 V Secondary, 5 Outputs, 85 to 370 V AC 47151

Free Delivery in India | Lowest Global Shipping Charges

Myrra SMPS Transformer 5 W Power 265 V Primary, 3.3 V Secondary, 5 Outputs, 85 to 370 V AC 47151

Name: Myrra SMPS Transformer 5 W Power 265 V Primary, 3.3 V Secondary, 5 Outputs, 85 to 370 V AC 47151
Brand: Myrra
SKU: 324811
Price: 20.22 USD
Availability: InStock



Category SMPS Transformer Brand Myrra Condition New

Specifications

Country of Origin	China
Brand	Myrra
Power	5W
Length	31.7mm
Model	47151
Depth	21.8mm
Gross Weight	30g
Width	26.7mm
Mount Type	Through Hole
Maximum Operating Temperature	50°C
Minimum Operating Temperature	-25°C
Secondary current	1350mA
Number of outputs	5
Standards/Approvals	RoHS, CE, VDE, ENEC, UL
Number of Pins	4
Primary Current	0.2A
Primary Voltage	265 V, 85 to 370 V ac
Secondary Voltage	3.3 V
Minimum Operating Frequency	47Hz
Maximum Operating Frequency	440Hz

Key Features

Single regulated DC output electronic transformer based on flyback topology.
High energy efficiency with low standby power consumption.
Through hole mount type with 4 pins for stable installation.
Operating temperature range from -25°C to 50°C for diverse environments.
Compact design with dimensions of 31.7mm length, 26.7mm width and 21.8mm depth.
Secondary current capacity of 1350mA and primary current of 0.2A.
Conforms to standards including RoHS, CE, VDE, ENEC, and UL.
Ideal for telecom supplies, electric substations, industrial and consumer electronics applications.

Product Description

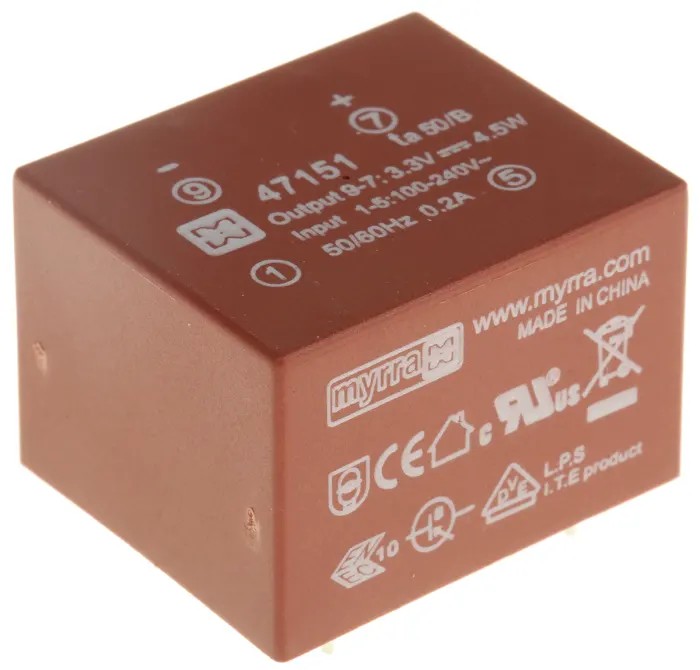

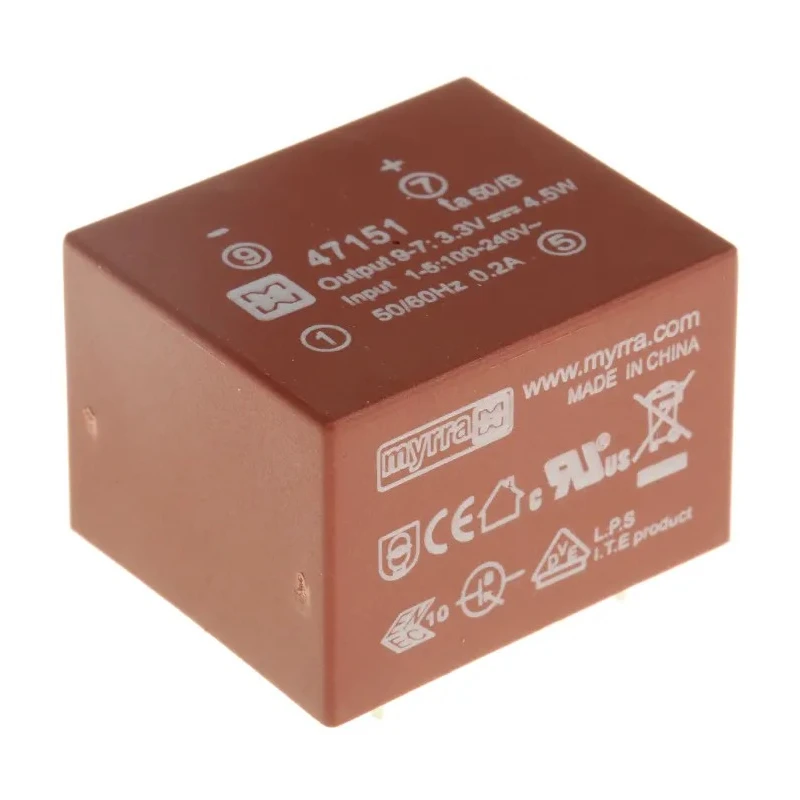

Myrra 47151 SMPS Transformer is a switched mode power supply with a power rating of 5 W. It supports a wide primary voltage range from 85 to 370 V AC and outputs a regulated secondary voltage of 3.3 V. Designed with 5 outputs, this transformer uses flyback topology for efficient energy conversion and regulation.

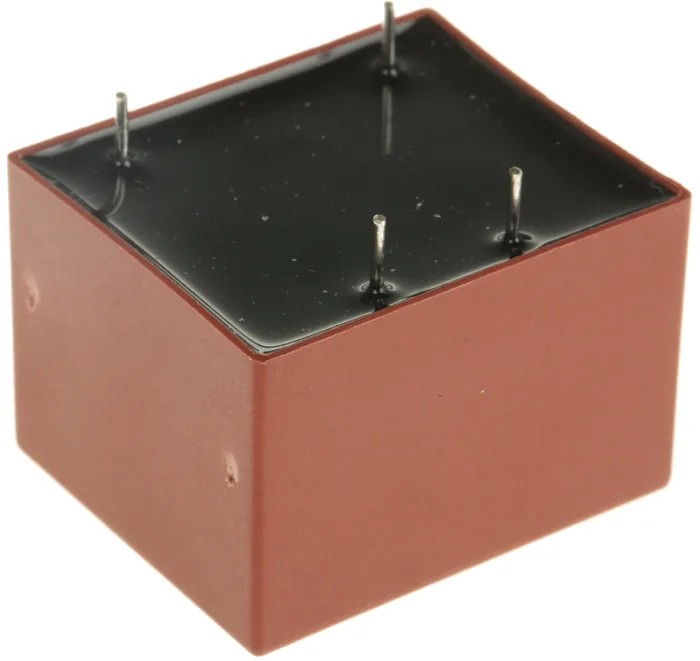

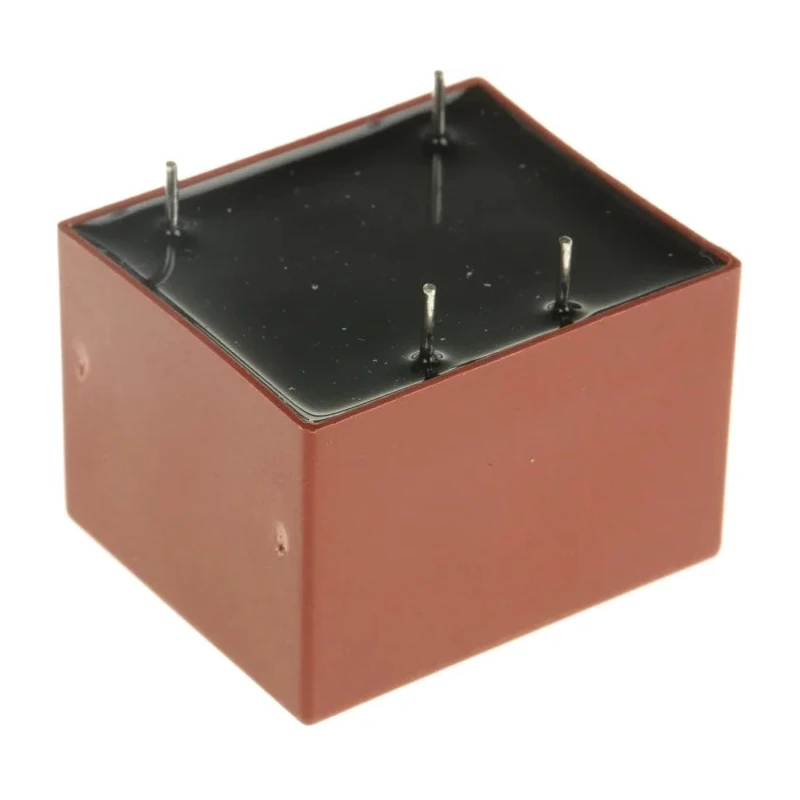

This transformer is mounted through hole and equipped with 4 pins, making it suitable for secure PCB installation. Its operating temperature range from -25°C to 50°C ensures reliable performance in various industrial and domestic environments.

The compact dimensions of 31.7 mm in length, 26.7 mm width, and 21.8 mm depth facilitate integration into space-constrained assemblies. The secondary current rating is 1350 mA, while the primary current is 0.2 A, supporting stable power delivery in electronic circuits.

Operating frequency spans from 47 Hz minimum to 440 Hz maximum. The unit complies with international standards including RoHS, CE, VDE, ENEC, and UL, ensuring safety and environmental compliance.

Produced in China, this lightweight transformer (approx. 30 g) serves well in telecom supplies, electric substations, and various industrial and consumer electronic applications where compact, efficient power conversion is required.

Single regulated DC output electronic transformer based on flyback topology. High energy efficiency with low standby power consumption. Through hole mount type with 4 pins for stable installation. Operating temperature range from -25°C to 50°C for diverse environments.

Compact design with dimensions of 31.7mm length, 26.7mm width and 21.8mm depth. Secondary current capacity of 1350mA and primary current of 0.2A. Frequency range between 47Hz minimum and 440Hz maximum. Conforms to standards including RoHS, CE, VDE, ENEC, and UL.

Weight of approximately 30 grams for lightweight applications. Ideal for telecom supplies, electric substations, industrial and consumer electronics applications. Explore more SMPS Transformers and power supply solutions in the Electronics & Electricals category on EnvMart to find the perfect match for your application.
