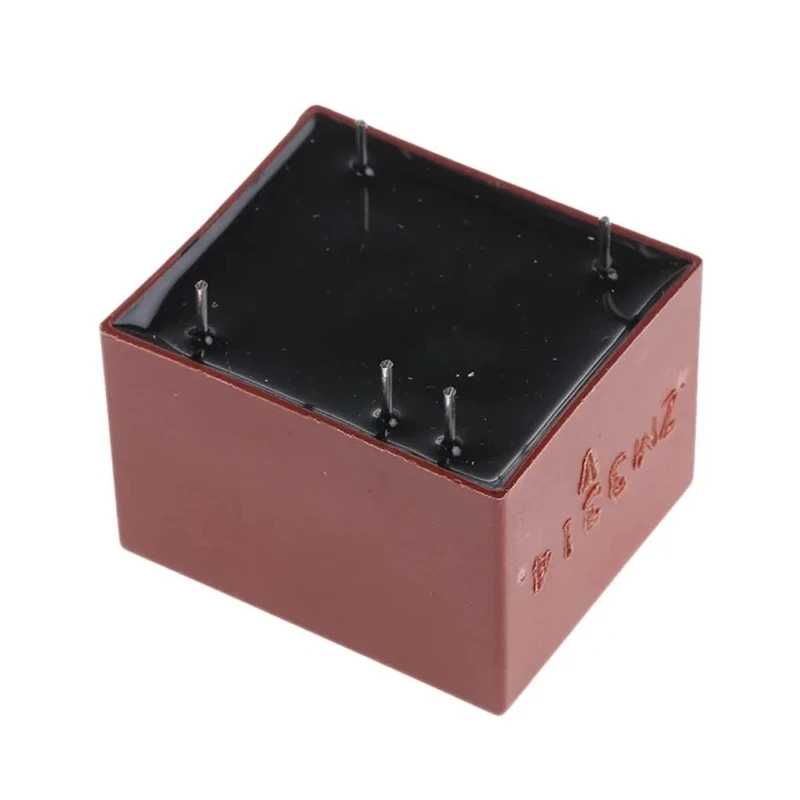

Myrra 3 Output SMPS Transformer 5.4 W Power, 370 V dc / 265 V ac Input, 24 V dc Output 47247

Free Delivery in India | Lowest Global Shipping Charges

Myrra 3 Output SMPS Transformer 5.4 W Power, 370 V dc / 265 V ac Input, 24 V dc Output 47247

Name: Myrra 3 Output SMPS Transformer 5.4 W Power, 370 V dc / 265 V ac Input, 24 V dc Output 47247
Brand: Myrra
SKU: 371605
Price: 20.22 USD
Availability: InStock



Category SMPS Transformer Brand Myrra Condition New

Specifications

Country of Origin	China
Brand	Myrra
Power	5.4W
Model	47247
Series	47000
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Secondary current	1350mA
Number of outputs	3
Isolation Voltage	4000V ac
Primary Voltage	370 V dc, 265 V ac
Secondary Voltage	24 V dc
Minimum Operating Frequency	47Hz
Maximum Operating Frequency	440Hz

Key Features

Features three outputs suitable for multiple circuit applications.
Compact switched mode power supply using flyback topology for efficient energy use.
Designed for operating temperature range from -40°C to 85°C.
Offers isolation voltage of 4000V ac ensuring safety in industrial environments.
Certified to multiple standards including EN 61000-4-x and UL 94-V0 for quality assurance.
Operates within frequency range from 47 Hz to 440 Hz to accommodate various electrical conditions.
Provides secondary current of 1350 mA supporting moderate load requirements.
Constructed with encapsulated design for durability in domestic, industrial, and telecom applications.

Product Description

The Myrra 47247 3 Output SMPS Transformer is a compact, encapsulated switched mode power supply transformer delivering 5.4 W power with primary input ratings of 370 V dc and 265 V ac, and a stable secondary output of 24 V dc at 1350 mA.

Engineered using flyback topology, it offers an energy-efficient alternative to traditional power supplies in low power applications below 5 W. The transformer features an isolated voltage rating of 4000V ac ensuring superior safety and design integrity.

Operating reliably within a temperature range from -40°C up to 85°C, this model complies with stringent industrial standards including EN 61000-4-x series, UL 94-V0 flammability rating, UL components, EN 55014-2, EN 55022 Class B electromagnetic compatibility, EN 61558-2-17, and other relevant safety standards. Its frequency operation range from 47Hz to 440Hz allows versatility in different AC/DC supply contexts.

This SMPS transformer is ideal for use in telecom power supplies, electric substations, industrial devices, domestic equipment, and consumer electronics. Its encapsulated design houses the circuitry securely, providing longevity and resilience against environmental stresses.

With the same form factor as a traditional EI30 transformer, the Myrra 47247 model replaces multiple components including transformers, fuses, bridge rectifiers, regulators, and filtering capacitors, reducing PCB footprint and simplifying design.

Three output lines for diverse circuit needs. Flyback topology enables energy savings with low standby power consumption. Wide temperature tolerance supports harsh industrial environments. High isolation voltage for operator safety and device protection.

Certified for electromagnetic compatibility and flammability standards. Operating frequency adaptable from 47 to 440 Hz. Suitable for telecom, industrial, domestic, and consumer applications. Encapsulated and compact construction for durability and easy installation.

Compatible footprint to replace traditional transformers and associated circuitry. Manufactured in China ensuring consistent quality control. Explore the range of SMPS Transformers by Myrra for reliable and efficient power supply solutions at EnvMart.
