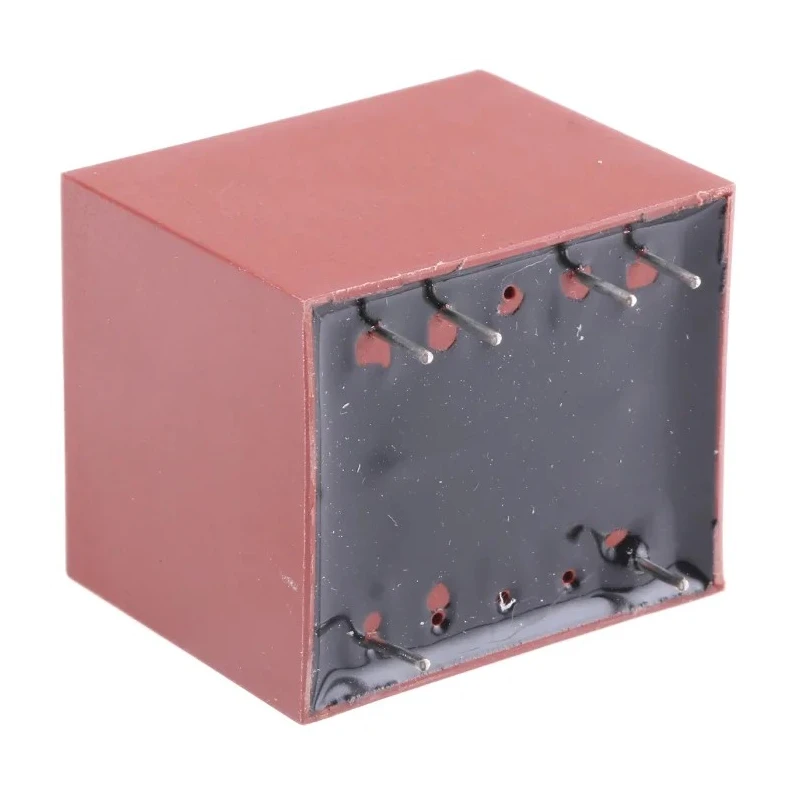

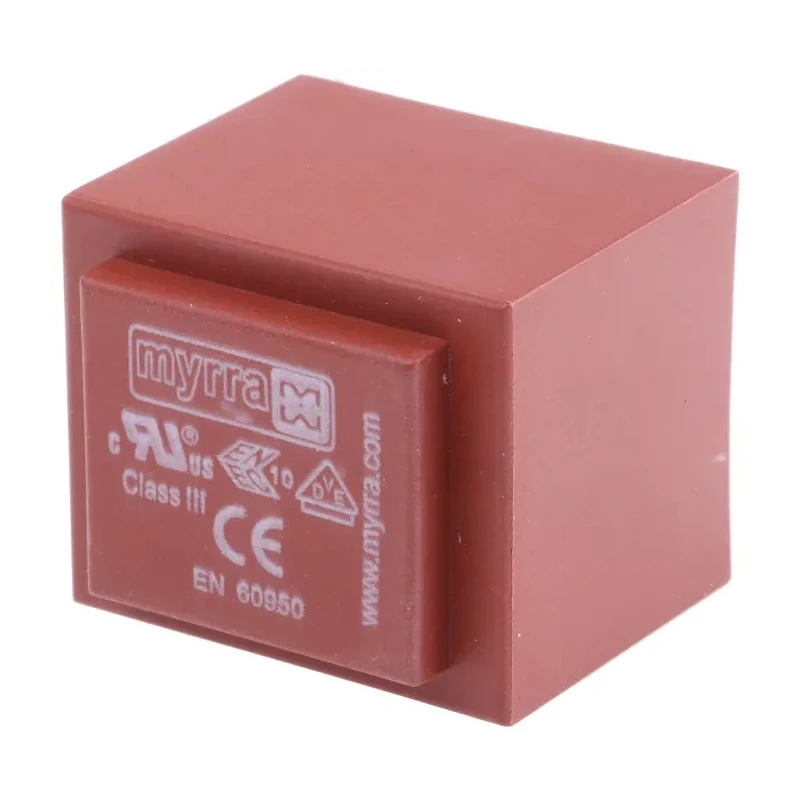

Myrra 12 V ac 2 Output PCB Transformer, EN 61558-2-6 Certified, 2.3 VA, 230 V ac Primary Voltage 44165

Myrra 44165 12 V ac 2 Output PCB Transformer is an industrial-grade transformer designed for printed circuit board mounting. Rated at 2.3 VA power, this transformer provides dual 12 V ac secondary outputs from a 230 V ac primary source, making it suitable for a variety of electronic power supply applications.

This transformer conforms to EN 61558-2-6 safety standards, providing robust insulation rated at 4 kV for enhanced operational safety. It is built using EI 30 laminated core technology with vacuum-filled resin encapsulation which ensures durability, resistance to aging, and excellent short-circuit protection.

The transformer operates reliably between 50 Hz to 60 Hz frequency ranges, making it compatible with standard European power grids. Its compact dimensions (32.6 mm x 27.6 mm x 29.8 mm) and lightweight construction (70 g) make it ideal for space-constrained electronic assemblies.

Designed explicitly for PCB mounting, this device supports coupling in series or parallel configurations as required. It utilizes non-flammable, self-extinguishing materials meeting UL 94-V0 standards for maximum safety compliance.

Typical applications include power supplies in industrial, laboratory, HVAC, manufacturing, and commercial electronics environments. Package contents do not include fixing screws, which need to be sourced separately.

The transformer has two outputs of 12 V ac each for dual-voltage requirements. It supports a primary voltage of 230 V ac, standard for many industrial electronic systems. Isolation voltage of 4 kV provides safety by isolating primary and secondary circuits.

Compact form factor enables integration into densely populated PCBs. Certification according to EN 61558-2-6 ensures it meets European safety requirements. Encapsulated with resin to protect against environmental factors and prolong lifespan.

Weight of approximately 70 grams makes it suitable for lightweight designs. Explore more transformers and electronic components in the Electronics & Electricals category on EnvMart to find compatible devices and accessories.
