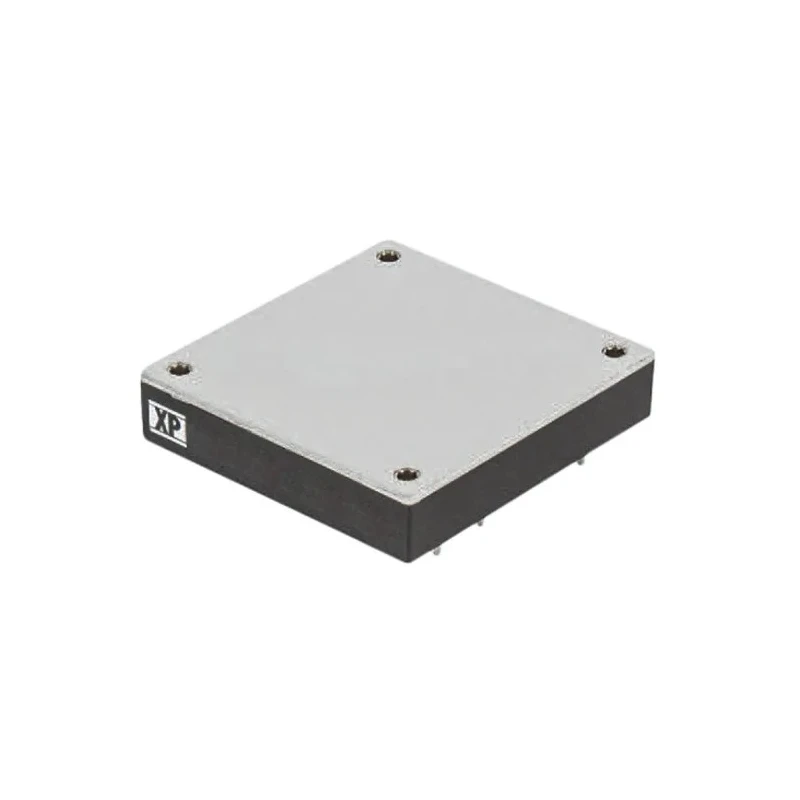

XP Power Isolated DC/DC Converter 24V DC Output 12.5 mA 160V DC Max Input 43V Min Input 300W Through Hole RDH300
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters XP Power RDH300 DC/DC Converter, 24V dc/ 12 |
| Brand | XP Power |
| Efficiency | 89% |
| Length | 116.8mm |
| Model | RDH300 |
| Depth | 12.7mm |
| Mount Type | Through Hole |
| Series | RDH300 |
| Maximum Operating Temperature | 100°C |
| Package Type | SIP |
| Minimum Operating Temperature | -40°C |
| Number of outputs | 1 |
| Maximum Output Power | 300W |
| Maximum Input Voltage | 160V dc |
| Minimum Input Voltage | 43V |
| Output Voltage 1 | 24V dc |
| Output Current 1 | 12.5mA |
| Isolation Voltage | 3kV dc |
| Input Ratio | 4:1 |
| Input Ratio4 | 1 |
| Wide 4 | 1 input range |
Key Features
- High efficiency up to 89% to reduce energy loss during conversion.
- Single isolated output capable of handling 300 watts continuous power.
- Robust isolation voltage of 3000 V DC for enhanced safety and reliability.
- Industry-standard 1/2 brick size with SIP package and through-hole mounting.
- Operating temperature range from -40°C to 100°C for harsh environments.
- Output ripple noise limited to 240 mV peak to peak for sensitive electronics.
- Maximum capacitive load up to 4700 µF to support transient demands.
- Output voltage trim function ±10% to fine-tune voltage levels.
Product Description
XP Power RDH300 series is an isolated DC-DC converter engineered to provide reliable power conversion with an output voltage of 24 V DC and output current of 12.5 mA. This converter supports a wide input voltage range from 43 V DC minimum to 160 V DC maximum, making it suitable for industrial and telecommunication power systems requiring flexibility and robust performance.
Featuring a high efficiency of 89%, the RDH300 operates with low ripple noise of 240 mV peak-to-peak, ensuring clean power delivery ideal for sensitive electronic applications. Its SIP package is designed for through-hole mounting providing ease of installation and compatibility with standard printed circuit boards.
The converter meets industry 1/2 brick size standards, with an input ratio of 4:1, accommodating various DC input rails including 72 and 110 VDC typically used in telecom and industrial equipment.
Isolation voltage of 3000 V DC between input and output enhances device safety and prevents electrical interference. The product supports output voltage trimming ±10%, allowing user voltage adjustment to meet specific system requirements. Additional features include remote ON/OFF control and remote sensing capabilities for system flexibility.
Its specified operating temperature range from -40°C to 100°C enables deployment in rigorous environmental conditions. Maximum capacitive load rating of 4700 µF supports transient load variations common in industrial electrical systems.
Applications include telecommunications equipment, industrial automation controls, and consumer electronics where stable and isolated DC power conversion is essential. The RDH300 series is certified under UL and CE standards, reflecting quality and safety compliances.
This DC-DC converter is manufactured in Taiwan, Province Of China, ensuring quality manufacturing standards and consistency. The product includes a 3-year warranty from XP Power. Explore more power solutions and detailed specifications on EnvMart for your industrial and electronic component needs.
Wide 4:1 input voltage range for flexible power inputs. 89% efficiency to reduce power loss and heating. Single isolated 24 V DC output capable of delivering 300 W. 3 kV DC isolation voltage for safety conformity. Through-hole SIP package for reliable mounting and assembly.
Operating temperature range from -40°C up to 100°C for durability. Low output ripple noise minimizes signal interference. Capacitive load capability supports 4700 µF maximum. Output voltage adjustable by ±10% for precise tuning.
Explore more products in our DC/DC Converter category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The output voltage of this model is 24 V DC.
It can deliver a maximum output power of 300 watts.
The RDH300 supports an input voltage range from 43 V DC to 160 V DC.
This converter has an efficiency rating of 89%.
The isolation voltage between input and output is 3000 V DC.
The dimensions of this model are 116.8 mm in length and 12.7 mm in depth.
It operates within a temperature range of -40°C to 100°C.
The maximum capacitive load is rated at 4700 µF.
The output voltage can be adjusted by ±10% to fine-tune voltage levels as needed.
This model features a through-hole mounting design.
It is suitable for telecommunications equipment, industrial automation controls, and consumer electronics requiring stable DC power conversion.
The RDH300 is manufactured in Taiwan, Province Of China.
