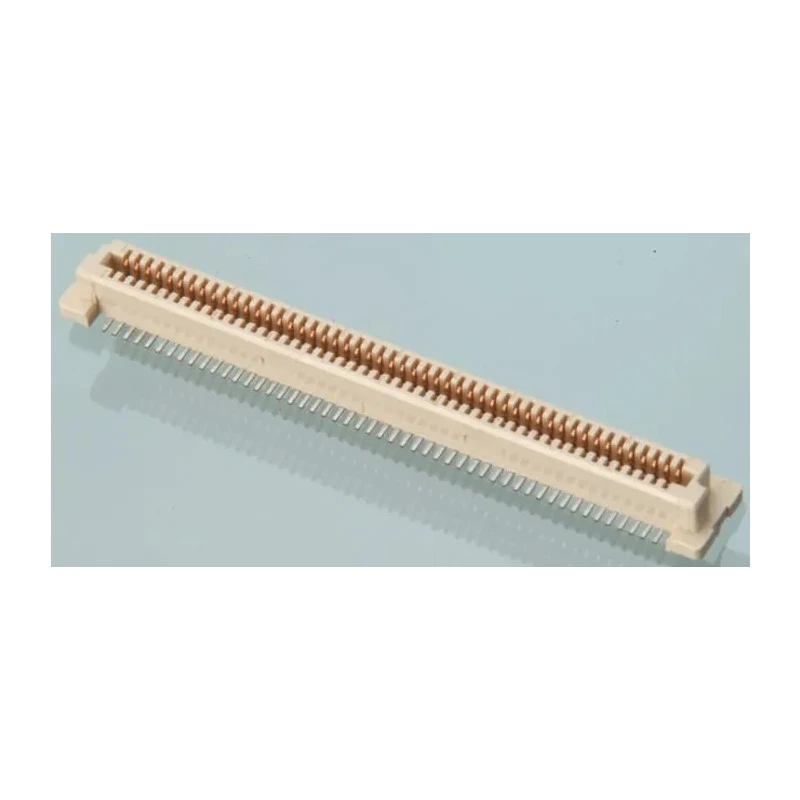

Amphenol Communications Solutions BergStak Series Straight Surface PCB Socket 60-Contact 2 Row 0.8 mm Pitch 61082-061400LF

Amphenol Communications Solutions 61082-061400LF BergStak Series PCB Socket offers a high-density, reliable solution for board-to-board connectivity. This 60-contact, 2-row socket features a 0.8 mm pitch with solder termination and straight surface mounting, making it ideal for space-constrained electronic assemblies.

The housing is composed of glass reinforced liquid crystal polymer, providing excellent mechanical strength and thermal stability. The contact elements use beryllium copper alloy and gold plating, ensuring high conductivity and corrosion resistance.

Operating voltage is rated at 100 V with a current capacity of 500 mA. The connector supports operating temperatures between -65°C and 125°C, making it suitable for industrial, communication equipment, and other rugged applications.

The 20 mm stacking height accommodates a variety of board-to-board distances. The polarized design prevents misalignment during connection. The BergStak® system is known for precise contact positioning and reliable mating alignment, reinforced by blade-on-beam contacts that reduce stubbing and peeling.

Typical use cases include electronic components manufacturing, telecommunications, industrial automation, and advanced PCB assembly requiring compact, high-performance connectors. The connector features a durable glass reinforced liquid crystal polymer housing.

It supports a current rating of 500 mA and voltage rating of 100 V. Contact material is beryllium copper alloy plated with gold for reliable conductivity. The socket is designed for surface mounting in a straight orientation with a stacking height of 20 mm.

Operating temperature ranges from -65°C to 125°C, suitable for harsh environments. Connector system is board-to-board with polarized design for secure mating. Termination type is solder ensuring robust electrical and mechanical connection.

High-density 0.8 mm pitch enables space-saving in compact PCB stacking applications. Compliance with RoHS standards is maintained although no explicit approvals are listed. Explore more electronic components in EnvMart's PCB Sockets category for quality and industrial-grade products tailored to your manufacturing and design needs.
