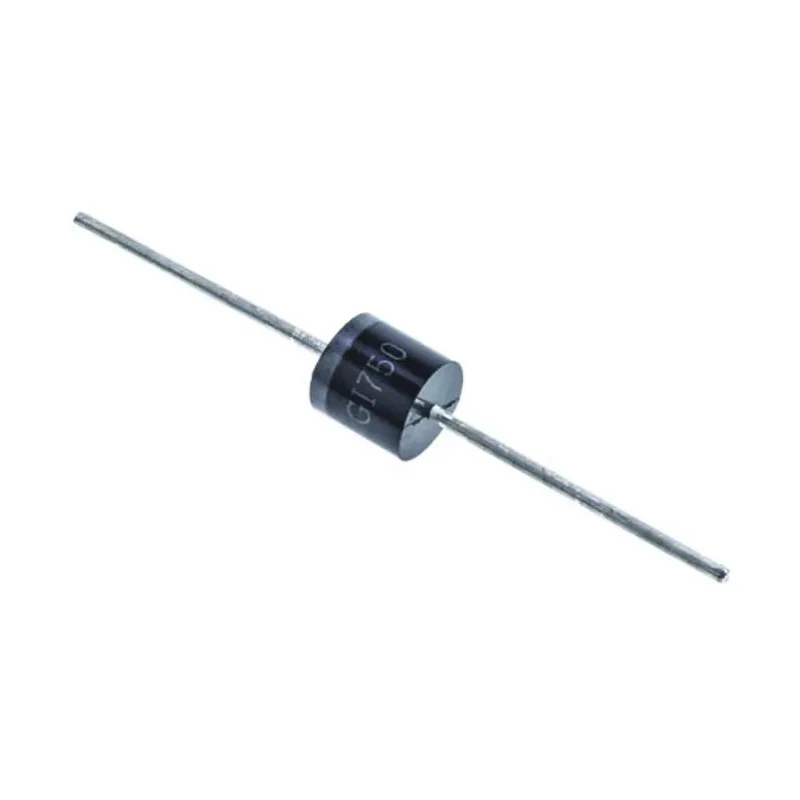

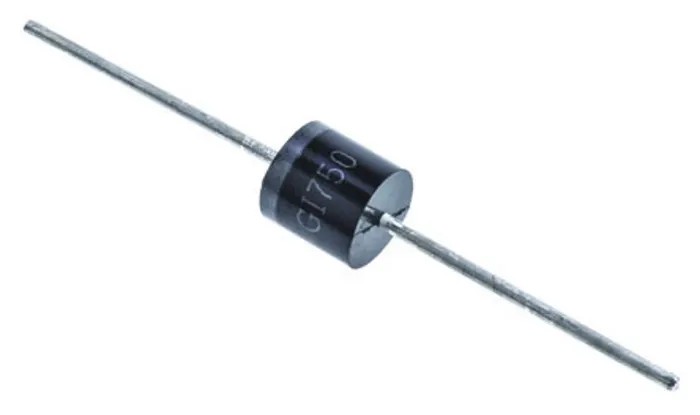

Littelfuse 1-Element Bi-Directional TVS Diode 5 kW, 2-Pin P600, Through Hole Package 5KP30CA
Specifications
| Country of Origin | China |
|---|---|
| Diameter | 9.1mm |
| Brand | Littelfuse |
| Length | 9.1mm |
| Model | 5KP30CA |
| Mount Type | Through Hole |
| Series | 5KP |
| Maximum Operating Temperature | 175°C |
| Package Type | P600 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 48.4V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 33.3V |
| Maximum Reverse Stand-off Voltage Vwm | 30V |
| Peak Pulse Power Dissipation Pppm | 5kW |
| Test Current It | 5mA |
| Maximum Peak Pulse Current Ippm | 105.4A |
| Maximum Reverse Leakage Current | 2μA |
| High temperature soldering guaranteed | 265°C./10 seconds/ 0.375â€,(9.5mm) lead length, 51bs., (2.3kg) tension |
| Fast response time | typically less than 1.0ps from 0 Volts to BV min |
Key Features
- Designed for protection against voltage transients induced by lightning and other events.
- Supports peak pulse power dissipation of 5 kW with excellent clamping capability.
- Bi-directional diode with single element configuration and 2 pins.
- Minimum breakdown voltage of 33.3 V and clamping voltage at 48.4 V.
- Operates in temperature range from -55°C to 175°C.
- Fast response time, typically less than 1.0 picosecond.
- Glass passivated junction with halogen-free materials.
- Matte tin lead-free plated leads suitable for high-temperature soldering.
Product Description
The Littelfuse 5KP30CA is a 1-element bi-directional transient voltage suppression (TVS) diode rated for a peak pulse power of 5 kW, featuring a 2-pin through-hole P600 package. This device is specially engineered to protect sensitive electronic equipment from voltage transients caused by lightning strikes or similar transient events.
The diode offers a minimum breakdown voltage of 33.3 volts and clamps voltage at 48.4 volts to safeguard components. It supports a maximum peak pulse current of 105.4 amperes and maintains a maximum reverse leakage current of only 2 microamperes, ensuring minimal leakage under normal operating conditions.
Operating temperature range of the 5KP30CA spans from -55°C up to 175°C, making it suitable for harsh environmental conditions. Its fast response time, typically less than 1 picosecond, ensures immediate protection upon transient detection. The device features a glass passivated junction and is halogen-free, adhering to modern environmental and safety standards.
The diode is constructed with matte tin lead-free plated leads capable of withstanding high-temperature soldering at 265°C for 10 seconds, and its physical size includes a diameter and length of 9.1 mm each. Suitable for through-hole mounting, it is ideal for industrial, commercial, and laboratory electronic equipment requiring robust transient voltage protection.
Applications include industrial automation systems, power supply units, communication equipment, and any devices sensitive to voltage spikes. The Littelfuse 5KP series represents a reliable solution for transient voltage suppression needs.
Designed for protection against voltage transients induced by lightning and other events. Supports peak pulse power dissipation of 5 kW with excellent clamping capability. Bi-directional diode with single element configuration and 2 pins.
Minimum breakdown voltage of 33.3 V and clamping voltage at 48.4 V. Operates in temperature range from -55°C to 175°C. Fast response time, typically less than 1.0 picosecond. Glass passivated junction with halogen-free materials.
Matte tin lead-free plated leads suitable for high-temperature soldering. Diameter and length both 9.1 mm with P600 package size. Maximum reverse leakage current of 2 µA. Manufactured in China with proven quality and reliability.
This product is part of the Littelfuse 5KP series and is classified as new. Explore more Littelfuse TVS Diodes and semiconductor components in the Electronics & Electricals category at EnvMart for premium quality and performance.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this model is 5 kW, providing excellent clamping capability for transient voltage protection.
It has a minimum breakdown voltage of 33.3 volts, which helps in safeguarding sensitive electronic components.
The clamping voltage for the 5KP30CA is 48.4 volts, which is crucial for protecting against voltage spikes.
The maximum operating temperature for the Littelfuse 5KP30CA is 175°C, making it suitable for high-temperature applications.
This model features a fast response time, typically less than 1.0 picosecond, ensuring immediate protection against transients.
The maximum reverse leakage current is 2 microamperes, which ensures minimal leakage under normal operating conditions.
The diode has a diameter and length of 9.1 mm each, fitting into the P600 package type for through-hole mounting.
The maximum peak pulse current for the 5KP30CA is 105.4 amperes, allowing it to handle significant transient events.
This model supports through-hole mounting, making it compatible with various electronic circuit designs.
It features a glass passivated junction and is constructed with halogen-free materials, adhering to modern environmental standards.
This diode is suitable for applications in industrial automation systems, power supply units, and communication equipment that require transient voltage protection.
The country of origin for this model is China, where it is manufactured to meet quality standards.
