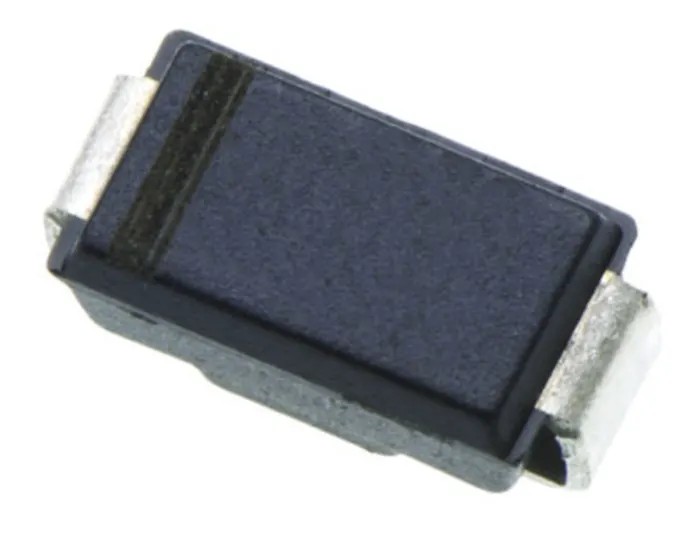

Littelfuse 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214 SMAJ36A

Littelfuse SMAJ36A 1-Element Uni-Directional TVS Diode is engineered to protect semiconductor devices from voltage transients induced by lightning and switching events. Featuring a peak pulse power dissipation capacity of 400 W, this diode is housed in a compact 2-pin DO-214 surface mount package, enhancing space optimization for PCB layouts.

Its uni-directional configuration enables swift clamping of transient voltages, ensuring sensitive electronic equipment remains safeguarded from damage. The device operates effectively within a voltage range that includes a minimum breakdown voltage of 44.2 V and a maximum reverse stand-off voltage of 36 V.

This diode exhibits an exceptionally fast response time, typically under 1.0 picoseconds, critical for transient suppression. Additionally, it supports a peak pulse current of 6.9 A, suitable for applications demanding high surge absorption.

Constructed with a glass passivated junction and built-in strain relief, the SMAJ36A offers improved durability and reliability during high-temperature soldering processes (250°C for 10 seconds at terminals). It operates efficiently over a wide temperature range from -65°C to 150°C, making it suitable for various industrial and commercial uses.

The product is halogen-free, has low incremental surge resistance, and features low inductance for enhanced electrical performance. It provides electrostatic discharge protection, making it ideal for electronic components in industries such as industrial automation, telecommunications, automotive electronics, and power supply systems.

Provides overvoltage protection for sensitive semiconductors in electronic circuits. Uni-directional diode configuration ensures fast and effective voltage clamping. Surface mount DO-214 package optimizes board space with a low profile design.

Operational voltage parameters include a minimum breakdown voltage of 44.2 V and maximum reverse standoff voltage of 36 V. Features a fast response time of less than 1.0 picoseconds for transient voltage events. High peak pulse current capability of 6.9 A for robust surge suppression.

Low maximum leakage current of 1 μA enhances performance efficiency. Operating temperature range spans from -65°C to 150°C for industrial reliability. Glass passivated junction and built-in strain relief improve durability and soldering performance.

Halogen-free and low inductance characteristics suitable for modern electronic applications.

This Littelfuse TVS Diode is an essential component for protecting sensitive electronics from transient voltages in industrial, commercial, and consumer electronic applications. Browse more from Littelfuse and explore our extensive semiconductor catalog at EnvMart.
