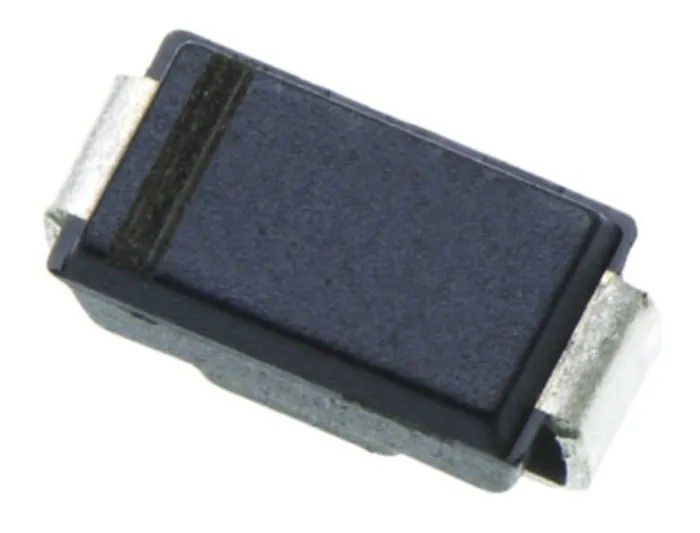

Littelfuse 1-Element Bi-Directional TVS Diode 400 W, 2-Pin DO-214 SMAJ28CA

Littelfuse SMAJ28CA 1-Element Bi-Directional TVS Diode, rated at 400 W peak pulse power, is designed to protect sensitive semiconductor devices from transient voltage spikes caused by lightning and other transient events. Featuring a compact 2-pin DO-214 surface mount package, this diode provides reliable, low inductance voltage clamping with a minimum breakdown voltage of 34.4 V and a maximum reverse stand-off voltage of 28 V.

This bi-directional diode configuration ensures effective surge protection in both polarities, making it suitable for a broad range of industrial and electronic applications including power supplies, telecommunication equipment, and sensitive electronic devices. The diode operates within an extended temperature range from -65°C to 150°C, offering stability under demanding operating conditions.

Key construction features include a glass passivated junction and halogen-free materials improving durability and environmental compliance. Its typical clamping voltage is 45.4 V, with a maximum peak pulse current rating of 8.8 A to handle moderate transient surges. The device also provides excellent Electrostatic Discharge (ESD) protection and exhibits a low maximum reverse leakage current of only 1 µA, contributing to energy efficiency.

The diode's fast response time, typically less than 1.0 picosecond from 0 V to breakdown voltage, ensures quick suppression of transient voltages enhancing equipment reliability. It is compatible with high temperature soldering processes (up to 250 degrees C/10 seconds), allowing seamless integration into surface mount PCB assemblies.

This Littelfuse SMAJ28CA model is part of the SMAJ series specialized for compact, high-performance transient voltage suppression. Applications span across industrial electronics, telecommunications, automotive electronic systems, manufacturing equipment, and other areas requiring robust transient voltage protection.

Single diode configuration suitable for transient voltage suppression. Bi-directional design for effective surge protection in both directions. Surface mount DO-214 package with compact dimensions. Minimum breakdown voltage of 34.4 V and maximum reverse stand-off voltage of 28 V.

Peak pulse power dissipation of 400 W and clamping voltage of 45.4 V. Operates reliably within a temperature range from -65°C to 150°C. ESD protection provided with a maximum peak pulse current of 8.8 A. Low reverse leakage current of 1 µA for energy efficiency.

Halogen-free and glass passivated junction for durability. Fast response time of less than 1.0 picoseconds for rapid transient suppression. Explore Littelfuse TVS Diodes and related semiconductor components on EnvMart for comprehensive solutions to transient voltage protection requirements.
