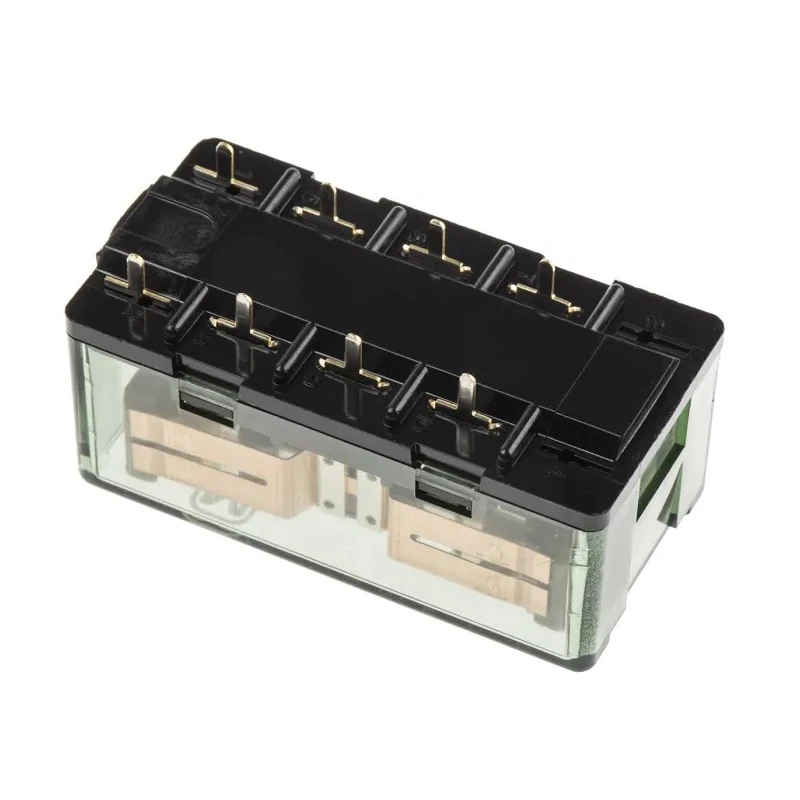

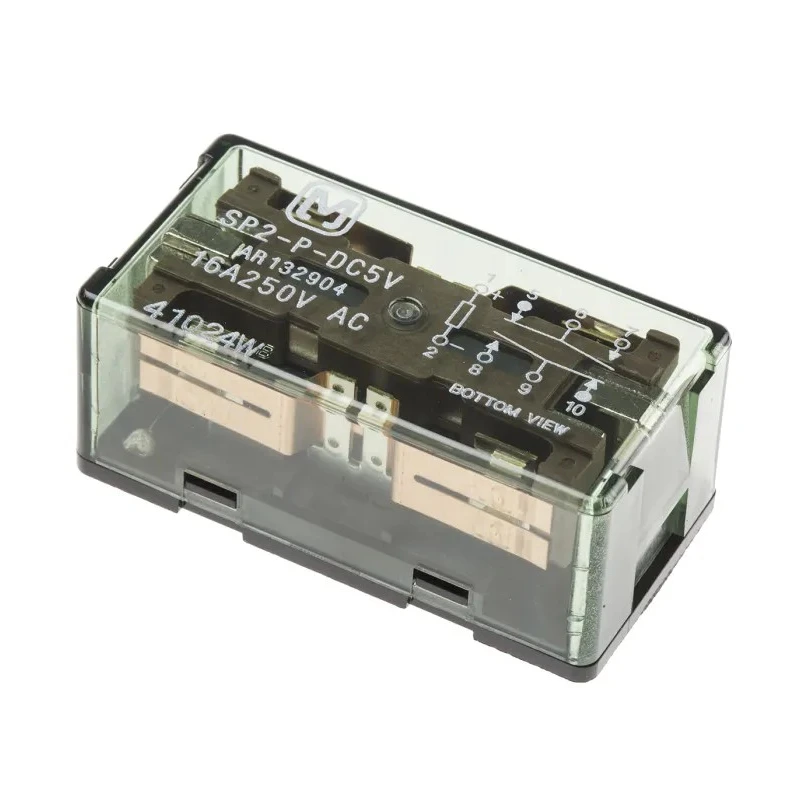

Panasonic PCB Non-Latching Relay 5V DC Coil, 15A Switching Current, DPDT SP2-P-5V
Specifications
| Country of Origin | Japan |
|---|---|
| Brand | Panasonic |
| Height | 22mm |
| Length | 51mm |
| Model | SP2-P-5V |
| Width | 25.6mm |
| Mount Type | PCB |
| Contact Material | Silver Alloy |
| Series | SP |
| Maximum Operating Temperature | 60°C |

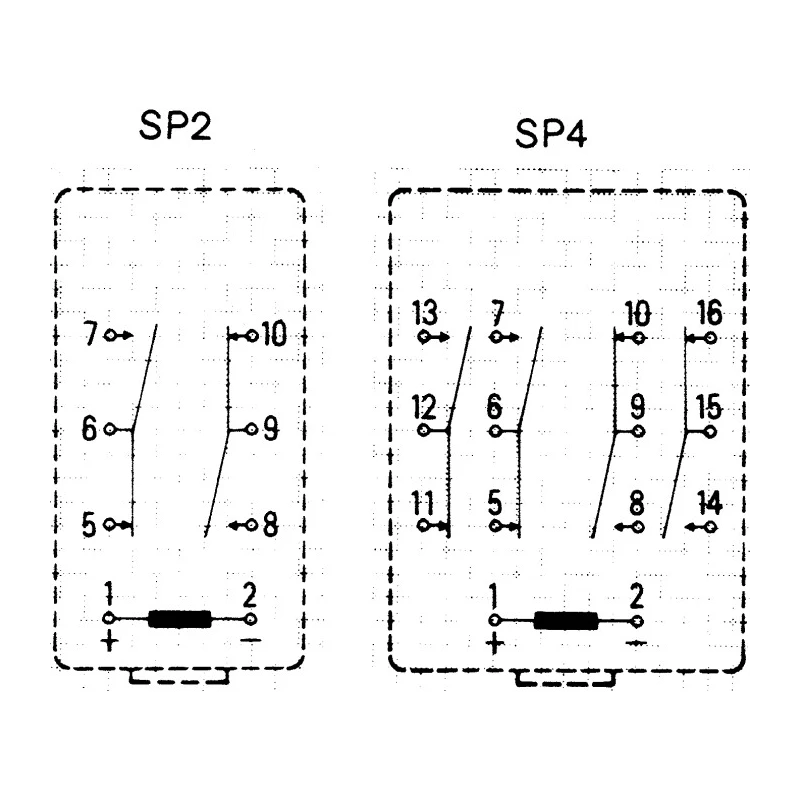

| Contact Configuration | DPDT |
| Minimum Operating Temperature | -50°C |
| Switching Current | 15A |
| Terminal type | Solder |
| Contact Resistance | 30mΩ |
| Standards/Approvals | RoHS |
| Coil Resistance | 83Ω |
| Coil Voltage | 5V dc |
| Switching DC Voltage | 48V dc |
| Switching AC Voltage | 250V ac |
| Coil Power | 300mW |
Key Features
- High sensitivity power relay designed for PCB mounting.
- Nominal coil power consumption of 300mW ensures energy efficiency.
- Robust silver alloy contacts provide low contact resistance of 30mΩ.
- Wide operating temperature range from -50°C to 60°C adapts to harsh environments.
- Compact dimensions measuring 51mm in length, 25.6mm in width, and 22mm in height.
- Supports switching voltages up to 48V DC and 250V AC for versatile electrical loads.
- Coil resistance is 83Ω ensuring consistent coil performance.
- Approved RoHS compliant component ensuring environmental safety standards.
Product Description
Panasonic SP2-P-5V is a PCB Non-Latching Relay featuring a 5V DC coil and a high-quality DPDT contact configuration suitable for power relay applications. This relay delivers a switching current of 15A with contact material made from silver alloy to reduce resistance and ensure reliable conductivity. The robust design includes resistance to vibration and shock, making it ideal for industrial, automation, electrical, and control system environments.
The relay operates efficiently at coil power of 300mW and has a coil resistance of 83Ω, optimized for PCB mounting integration. Its operational temperature range from -50°C to 60°C allows use in demanding conditions without loss of performance. The compact form factor with dimensions 51mm length, 25.6mm width, and 22mm height optimizes space in electronic assemblies.
Supporting switching voltages of up to 48V DC and 250V AC, the SP2-P-5V facilitates a wide variety of electrical load management tasks in industrial and commercial automation systems. Its RoHS compliance ensures adherence to environmental safety regulations. The device is manufactured in Japan, guaranteeing premium build quality and long service life.
High sensitivity power relay designed specifically for PCB mounting applications. Efficient coil power operation at 300mW nominal with minimum operating power of 150mW. Silver alloy contacts provide high reliability and minimal contact resistance of 30mΩ.
Wide operating temperature range from -50°C to 60°C suitable for diverse industrial conditions. Compact relay size enhances versatility in complex PCB assemblies. Supports switching currents up to 15A and voltage handling up to 48V DC and 250V AC.
Coil resistance of 83Ω assures stable electrical characteristics. RoHS compliant and manufactured in Japan for quality and environmental standards.
Typical industrial applications include automation control panels, power relay boards, electronic switching devices, and other electrical control systems requiring high reliability and performance in compact PCB form factor. This relay type is critical for precise switching tasks in manufacturing, electrical, commercial, and laboratory environments.
Discover more products in the Power Relays category for additional industrial relay solutions at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The relay has a switching current capacity of 15A, making it suitable for various power relay applications.
This model operates with a coil voltage of 5V DC, which is essential for its activation.
The relay measures 51mm in length, 25.6mm in width, and 22mm in height, allowing for compact PCB mounting.
It features a DPDT (Double Pole Double Throw) contact configuration, suitable for versatile switching tasks.
The coil resistance is 83Ω, ensuring stable electrical characteristics during operation.
The relay operates efficiently within a temperature range of -50°C to 60°C, accommodating harsh environments.
The contacts are made from silver alloy, providing low contact resistance of 30mΩ for reliable conductivity.
Yes, the SP2-P-5V relay is RoHS compliant, ensuring it meets environmental safety standards.
The nominal coil power consumption is 300mW, which contributes to its energy efficiency.
It supports switching voltages of up to 48V DC and 250V AC, making it versatile for various electrical loads.
This relay is designed for PCB mounting, making it suitable for integration into electronic assemblies.
This relay is manufactured in Japan, which is known for its high-quality production standards.
