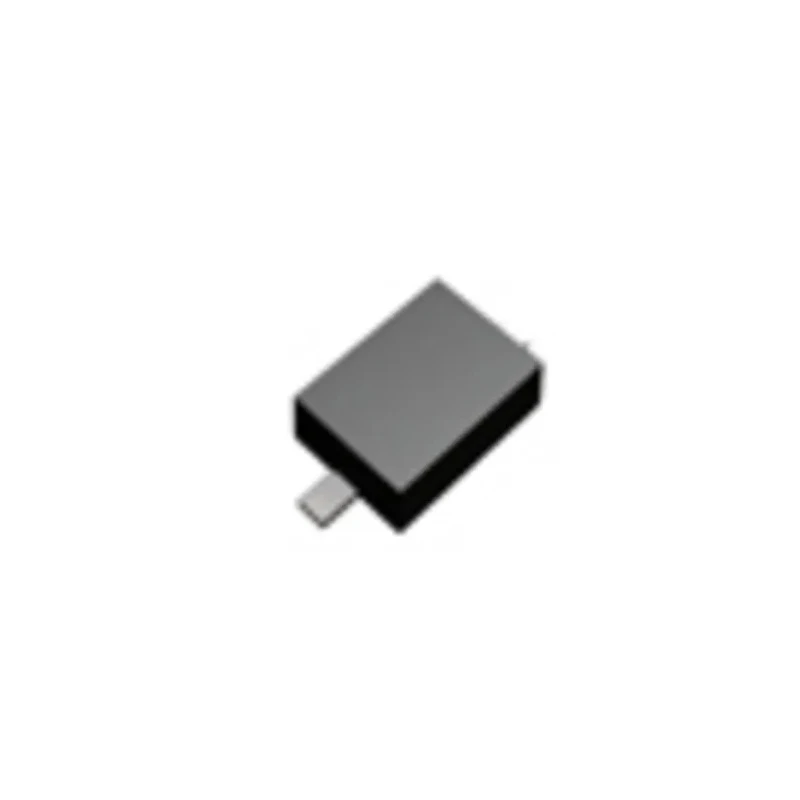

ROHM 250 V 300 mA Fast Recovery Diode 2-Pin Surface Mount SOD-323 RF01VM2STE-17
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Height | 0.7mm |
| Length | 1.7mm |
| Model | RF01VM2STE-17 |
| Width | 1.25mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | SOD-323 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 300mA |
| Peak Reverse Repetitive Voltage Vrrm | 250V |
| Diode Configuration | Single |
| Rectifier Type | Fast Recovery |
| Peak Reverse Current Ir | 10μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 50ns |
Key Features
- The diode features a small mold type package SOD-323 for compact PCB designs.
- It supports a maximum continuous forward current of 300 mA.
- Peak reverse repetitive voltage rating is 250 V ensuring reliable performance in high voltage conditions.
- The device exhibits a peak forward voltage of 1.2 V and a peak reverse current of 10 μA.
- It has a fast recovery time of 50 ns, suitable for high speed switching applications.
- The maximum forward surge current is 1 A for transient conditions.
- Designed with silicon epitaxial planar technology for stable operation up to 150°C.
- Compact dimensions aid in high density PCB assembly.
Product Description
ROHM RF01VM2STE-17 is a silicon epitaxial planar type fast recovery diode designed for surface mount applications with a compact SOD-323 package. Rated for a maximum continuous forward current of 300 mA and peak reverse repetitive voltage of 250 V, it is optimized for high speed switching in electronic circuits.
This diode features a peak forward voltage of 1.2 V and an ultra-low peak reverse current of 10 μA, ensuring efficient operation. Its fast recovery time of 50 ns supports rapid switching with minimal losses, making it suitable for power rectification and voltage clamping in semiconductor devices.
With an ability to sustain peak non-repetitive forward surge currents up to 1 A, it is reliable under transient load conditions. The device operates safely up to 150°C maximum operating temperature. The small mold SOD-323 package (dimensions: 1.7 mm length, 1.25 mm width, 0.7 mm height) allows space-saving PCB layouts in compact electronics manufacturing.
This fast recovery diode is widely used in power supplies, industrial automation, consumer electronics, and communication equipment for efficient reverse voltage blocking and fast switching performance.
The diode features a small mold type package SOD-323 for compact PCB designs. It supports a maximum continuous forward current of 300 mA. Peak reverse repetitive voltage rating is 250 V ensuring reliable performance in high voltage conditions.
The device exhibits a peak forward voltage of 1.2 V and a peak reverse current of 10 μA. It has a fast recovery time of 50 ns, suitable for high speed switching applications. The maximum forward surge current is 1 A for transient conditions.
Designed with silicon epitaxial planar technology for stable operation up to 150°C. Compact dimensions aid in high density PCB assembly. No automotive or other certifications are specified. This product is an ideal choice for engineers working in electronics manufacturing, industrial controls, and power device applications requiring a reliable fast recovery diode.
Find more electronic components and semiconductor devices in the Electronics & Electricals category on EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating for this model is 300 mA.
It comes in a small mold type package known as SOD-323.
The peak forward voltage of this unit is 1.2 V.
It has a fast recovery time of 50 ns, making it suitable for high-speed switching applications.
The maximum forward surge current is rated at 1 A for transient conditions.
The dimensions of the SOD-323 package are 1.7 mm in length, 1.25 mm in width, and 0.7 mm in height.
The maximum operating temperature for this model is 150°C.
This diode is suitable for applications in power supplies, industrial automation, consumer electronics, and communication equipment.
It is designed with silicon epitaxial planar technology for stable operation.
This model features a 2-pin configuration.
