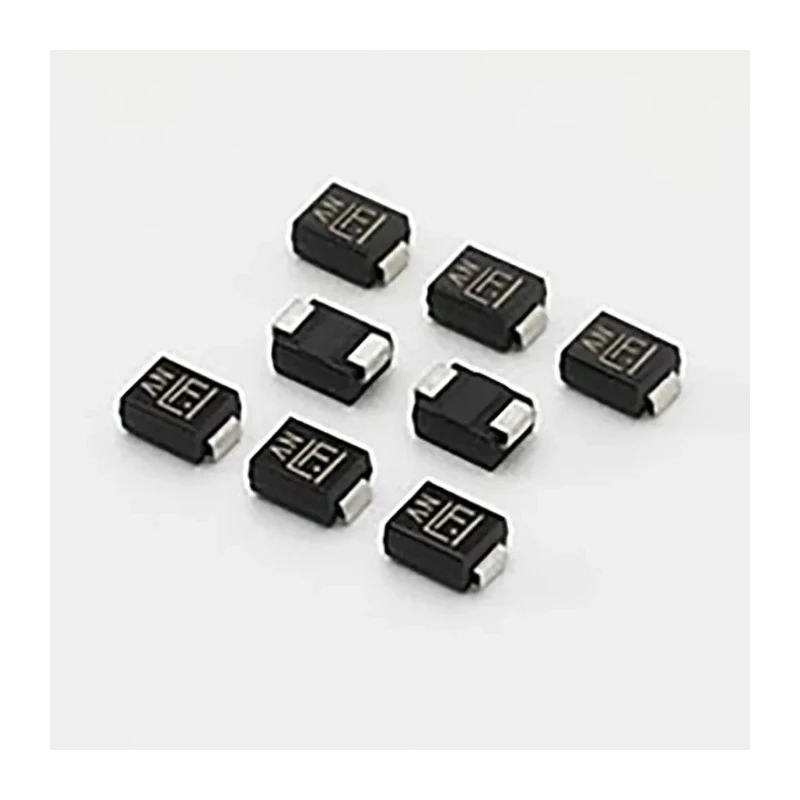

Littelfuse 1-Element Bi-Directional TVS Diode 600W Peak Pulse Power 2-Pin DO-214 SMBJ200CA

Littelfuse SMBJ200CA is a single 1-element bi-directional TVS diode designed specifically to protect sensitive electronic equipment from transient voltage events such as lightning-induced spikes and inductive switching surges. It provides robust 600W peak pulse power dissipation capability in a compact and low-profile 2-pin DO-214 surface mount package, which is ideal for modern PCB layouts requiring space saving components.

This diode features excellent clamping capability with a clamping voltage of 324V, rapidly suppressing voltage transients to safeguard electronic circuits. It operates reliably over a wide temperature range from -65°C to 150°C, making it suitable for harsh industrial environments. The device provides low incremental surge resistance and has a typical leakage current of less than 1 microampere above 12 volts, ensuring minimal intrusion into normal circuit function.

With a fast response time typically under 1.0 picosecond from zero volts to breakdown voltage minimum, the SMBJ200CA ensures near instantaneous protection against voltage spikes. The construction includes a glass passivated chip junction with built-in strain relief for improved durability. The terminals are matte tin lead-free plated, supporting a high temperature soldering capability rated at 260°C for 40 seconds, suitable for lead-free assembly processes. Additionally, the device is halogen free, supporting environmental regulations.

Its 2-pin DO-214 package type is designed for surface mounting to optimize board space, supporting compact electronic designs. This device is commonly used in power supplies, industrial control equipment, telecommunications, and automotive electronics where transient voltage protection is critical.

Overall, the Littelfuse SMBJ200CA offers reliable, high-performance transient voltage suppression with easy integration into a variety of industrial and electronic applications requiring bi-directional surge protection.

Single diode configuration offers effective voltage transient suppression. Bi-directional type ensures protection against voltage spikes in both polarities. Peak pulse power dissipation of 600 watts at 10x1000µs waveform.

Maximum reverse stand-off voltage of 200 volts for stable operation. Clamping voltage at 324 volts to limit transient voltage peaks. Fast response time of less than 1.0 picosecond from 0V to breakdown voltage. Wide operating temperature range from -65°C to 150°C for reliability.

Low incremental surge resistance and typical reverse leakage current below 1μA. Matte tin lead-free plating and halogen free construction for environmental compliance. Designed for surface mounting to optimize PCB space and minimize profile.
